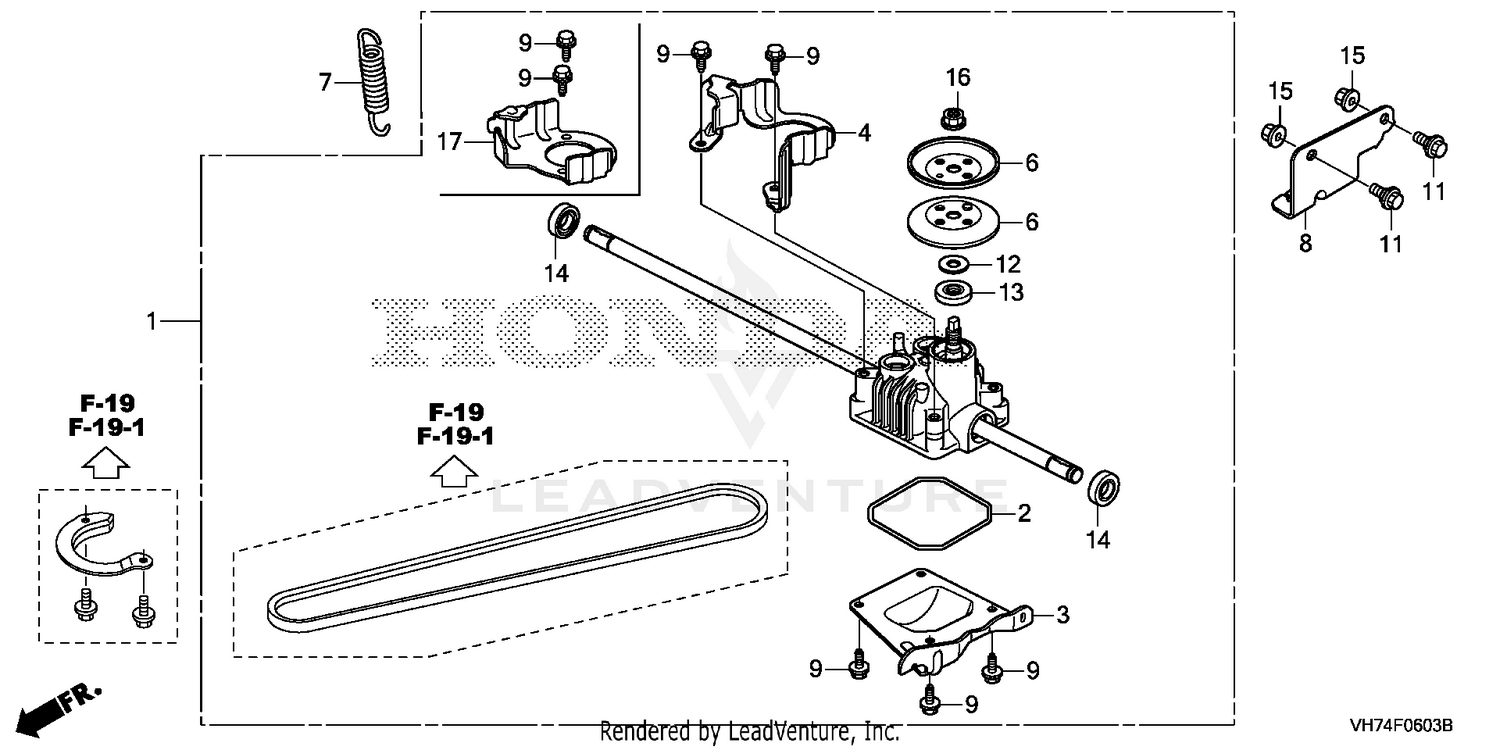

TRANSMISSION (4)
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 20001-VH7-P20 | TRANSMISSION ASSY. Price: $89.07 |
| 2 | 21581-VL0-M00 | O-RING, CASE Price: $8.50 |
| 3 | 21611-VL0-P00 | COVER, REDUCTION Price: $9.88 |
| 6 | 23211-VL0-P00 | FACE, DRIVEN Price: $28.34 |
| 7 | 24468-VL0-P00 | SPRING, WHEEL TENSION Price: $1.08 |
| 8 | 53104-VL0-P01 | BRACKET, CABLE MOUNT Price: $3.16 |
| 9 | 90013-883-000 | SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845). Price: $1.94 |
| 11 | 90102-VH7-T30 | BOLT, CABLE MOUNT Price: $4.86 |
| 12 | 90504-VH7-A00 | WASHER (10X24) Price: $0.36 |
| 13 | 91251-VL0-B00 | OIL SEAL (12.7X28.6X6.4) Price: $4.32 |
| 14 | 91251-VL0-M00 | OIL SEAL (12.7X22.2X6.4) Price: $28.34 |
| 15 | 94050-08000 | SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143). Price: $1.18 |
| 16 | 94050-10080 | SEE PART DETAILS - PRI; NUT, FLANGE (10MM) (Honda Code 0623405). Price: $4.74 |
