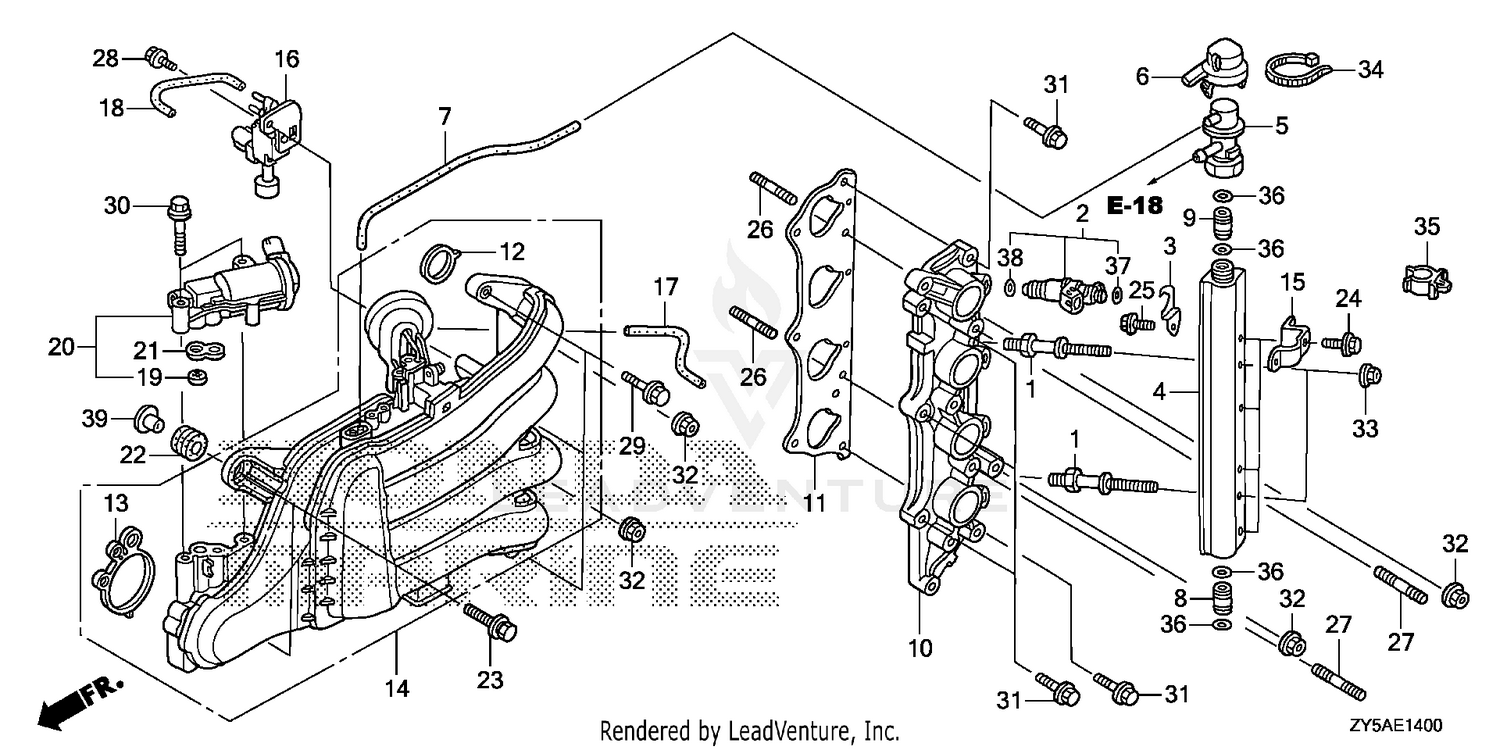

| Ref | Part Number | Description |
|---|
| 1 |
16089-ZY6-010 |
BOLT, FUEL PIPE Price: $12.52 |
| 2 |
16450-ZY6-003 |
INJECTOR ASSY., FUEL Price: $115.56 |
| 3 |
16451-ZY6-000 |
CLIP, INJECTOR Price: $12.78 |
| 4 |
16621-ZY6-000 |
LINE, FUEL Price: $211.46 |
| 5 |
16740-ZY6-003 |
REGULATOR ASSY., PRESSURE Price: $83.46 |
| 6 |
16744-ZY6-010 |
CAP, REGULATOR Price: $13.56 |
| 7 |
16748-ZY6-000 |
TUBE, PRESSURE REGULATOR CONTROL Price: $4.82 |
| 8 |
16752-ZY3-000 |
JOINT, FUEL PIPE Price: $10.08 |
| 9 |
16752-ZY6-000 |
JOINT, FUEL PIPE Price: $21.20 |
| 10 |
17051-ZY6-000ZA |
BASE, INJECTOR *NH8* (DARK GRAY) Price: $236.44 |
| 11 |
17055-PNA-004 |
GASKET A, INJECTOR BASE Price: $29.78 |
| 12 |
17105-ZY6-000 |
GASKET, IN. MANIFOLD Price: $17.88 |
| 13 |
17109-ZY6-000 |
GASKET, THROTTLE BODY Price: $33.40 |
| 14 |
17110-ZY6-003 |
MANIFOLD, IN. Price: $1,912.82 |
| 15 |
32111-ZY6-000 |
BRACKET A, HARNESS CLIP Price: $16.10 |
| 16 |
36163-ZY3-003 |
VALVE ASSY., AIR BYPASS Price: $121.86 |
| 17 |
36364-ZY6-000 |
TUBE, DIAPHRAGM Price: $4.82 |
| 18 |
36366-ZY6-000 |
TUBE, BYPASS SOLENOID Price: $4.26 |
| 19 |
36454-PS4-003 |
FILTER, ELECTRONIC AIR CONTROL VALVE (TOYO ROKI) Price: $14.12 |
| 20 |
36550-ZY6-003 |
VALVE ASSY., ELECTRONIC AIR CONTROL Price: $264.10 |
| 21 |
36551-ZY6-003 |
GASKET, ELECTRONIC AIR CONTROL VALVE Price: $14.88 |
| 22 |
51640-121-730 |
RUBBER, FR. CARRIER CUSHION Price: $5.04 |
| 23 |
90014-ZY9-M01 |
BOLT-WASHER (8X35) This part replaces 90014-ZW1-000. Price: $3.74 |
| 24 |
90021-ZZ5-M01 |
BOLT, FLANGE (6X14) Price: $1.56 |
| 26 |
90043-ZY6-030 |
BOLT 2, STUD (8X25) Price: $2.30 |
| 27 |
90047-ZY6-000 |
BOLT, STUD (8X32) Price: $2.66 |
| 28 |
90049-ZY6-030 |
BOLT, FLANGE (5X12) Price: $2.90 |
| 29 |
90054-ZY9-M01 |
BOLT, FLANGE (8X35) This part replaces 90054-ZY3-000. Price: $2.36 |
| 30 |
90026-ZZ5-M01 |
BOLT, FLANGE (8X45) This part replaces 90126-ZW4-000. Price: $2.56 |
| 31 |
90151-ZZ0-M01 |
BOLT, FLANGE (8X25) This part replaces 90151-ZW4-000. Price: $2.28 |
| 32 |
90205-ZY9-M01 |
NUT, FLANGE (8MM) Price: $2.36 |
| 34 |
90650-GEV-003 |
BAND, HARNESS Price: $2.34 |
| 35 |
90687-SB2-003 |
CLIP, FUEL TUBE (14) (NOT AVAILABLE) Price: $4.92 |
| 36 |
91301-MJ0-003 |
O-RING (7.8X1.9) (ARAI) Price: $2.86 |
| 37 |
91301-PLC-000 |
O-RING (7.47X3.6) Price: $4.68 |
| 38 |
91302-PNA-003 |
O-RING (7.45X3.61) (NOK) Price: $3.66 |
