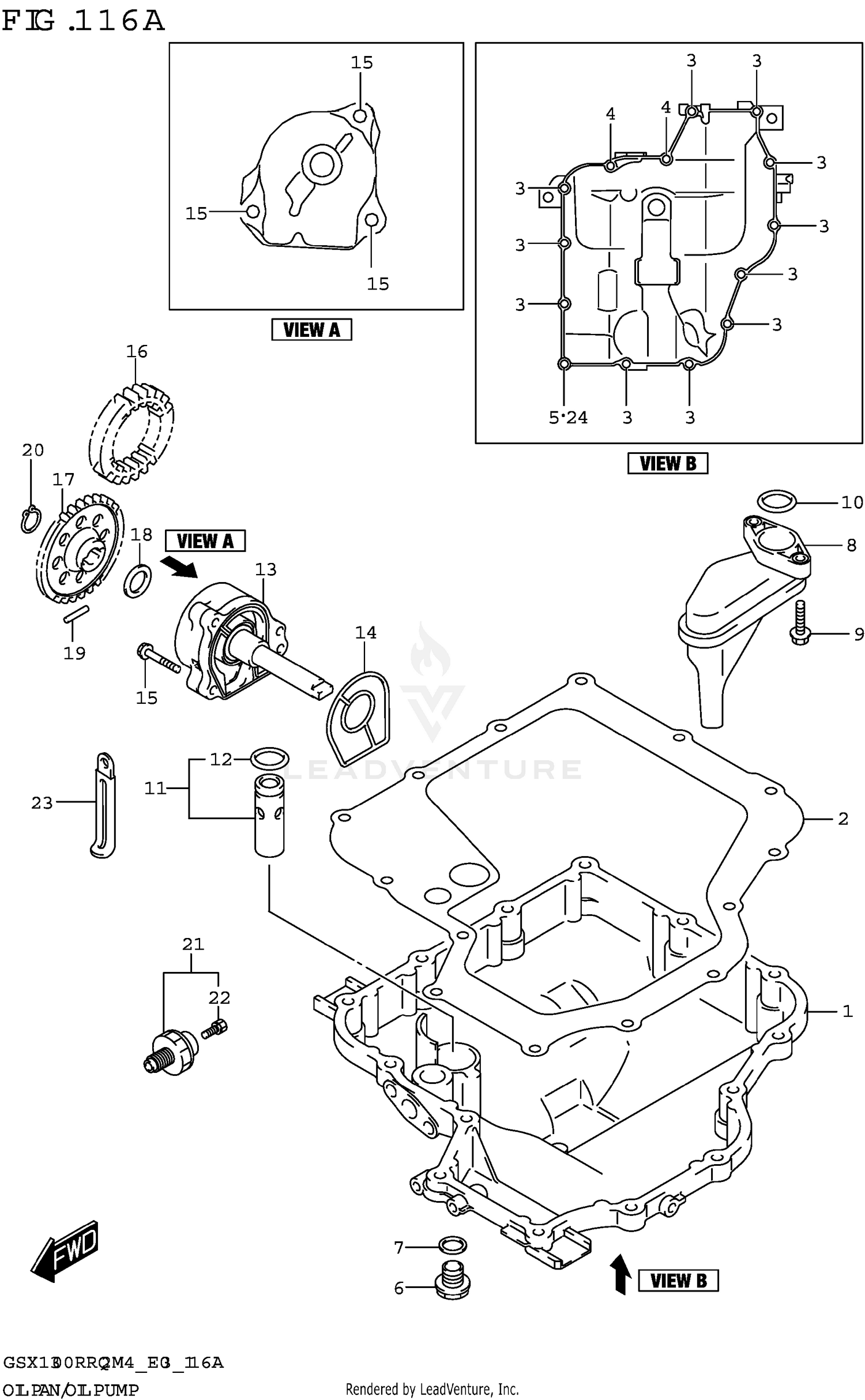

OIL PAN/OIL PUMP
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11511-24F10 | PAN,OIL Price: $301.43 |
| 3 | 01547-0630A | BOLT Price: $2.79 |
| 4 | 01547-0640A | BOLT Price: $2.79 |
| 5 | 09168-06023 | GASKET (5.8X13X1.2) Price: $2.45 |
| 8 | 16520-24F01 | STRAINER,ENG OIL Price: $38.53 |
| 9 | 01550-0620A | BOLT (6X20) Price: $2.37 |
| 10 | 09280-19008 | O RING (D:2.62,ID:20.3) Price: $6.70 |
| 11 | 16440-24F00 | VALVE ASSY,OIL RELIEF (7K) Price: $61.81 |
| 13 | 16400-24F01 | PUMP ASSY,ENGINE OIL Price: $233.84 |
| 14 | 16491-24F00 | O-RING Price: $8.55 |
| 15 | 01547-0630A | BOLT Price: $2.79 |
| 16 | 16321-33E10 | GEAR,OIL PUMP DRIVE (NT:34) Price: $73.57 |
| 17 | 16331-33E00 | GEAR,OIL PUMP DRIVEN (NT:37) Price: $80.63 |
| 18 | 09181-12158 | SHIM (12X20X0.5) Price: $2.72 |
| 19 | 09261-05006 | PIN (5X18) Price: $1.77 |
| 20 | 08331-3112A | CIRCLIP Price: $2.15 |
| 21 | 37820-33D11 | SWITCH ASSY,OIL PRESSURE Price: $26.40 |
| 23 | 09404-06429 | CLAMP (L:45) Price: $2.20 |
