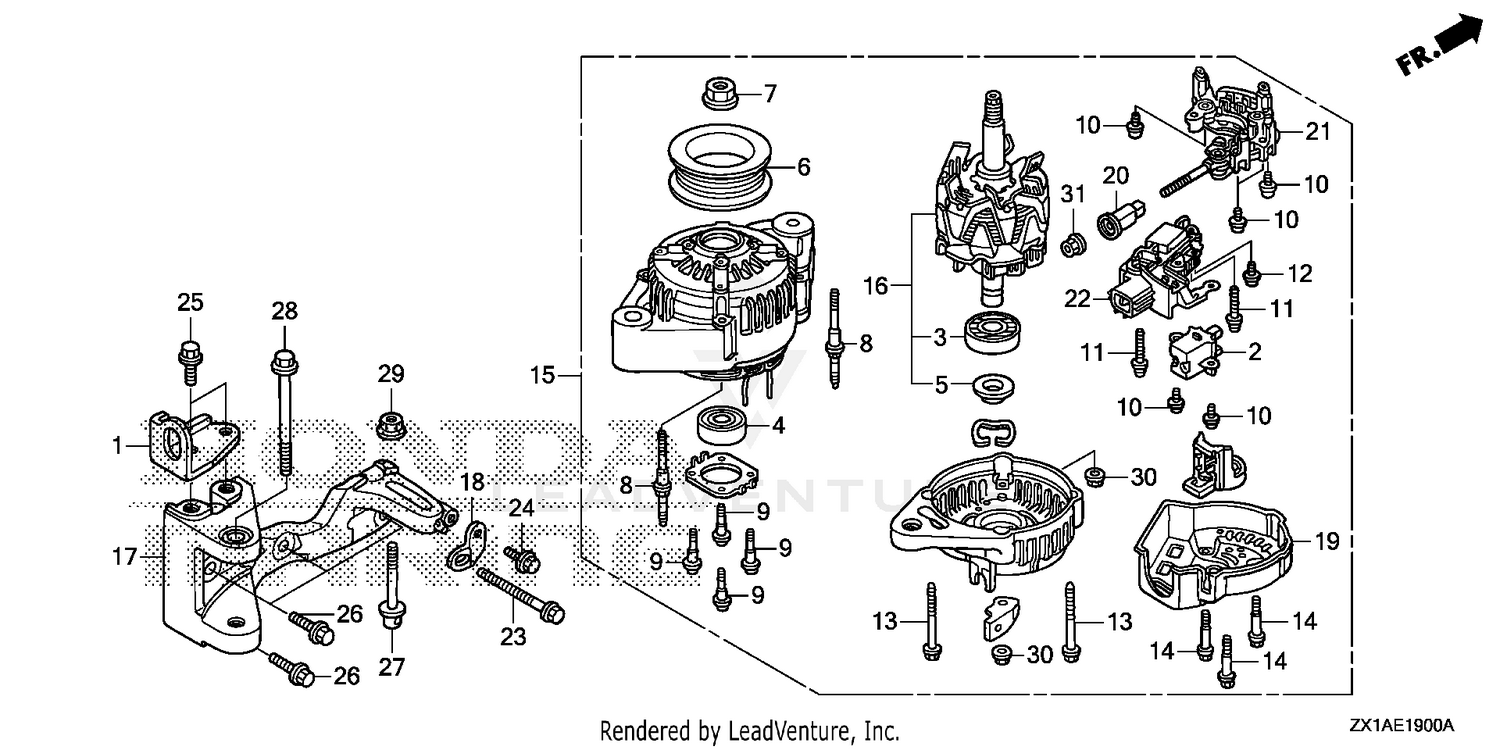

| Ref | Part Number | Description |
|---|
| 1 |
11912-ZY6-000 |
HANGER B, ENGINE Price: $55.86 |
| 2 |
31105-PZ1-003 |
HOLDER ASSY., BRUSH Price: $67.22 |
| 3 |
31111-PJ7-013 |
BEARING, RR. Price: $23.56 |
| 4 |
31114-PJ7-013 |
BEARING, FR. Price: $45.04 |
| 5 |
31138-PD1-004 |
COVER, BEARING Price: $13.16 |
| 6 |
31141-P64-003 |
PULLEY Price: $60.92 |
| 7 |
31142-PD1-004 |
NUT, PULLEY LOCK Price: $10.50 |
| 8 |
31145-PE9-941 |
BOLT, STUD Price: $7.86 |
| 9 |
31146-PJ7-003 |
SCREW Price: $2.34 |
| 10 |
31147-PT0-003 |
SCREW-WASHER Price: $4.04 |
| 11 |
31148-PD1-004 |
SCREW-WASHER (4X25) Price: $4.30 |
| 12 |
31149-PZ1-003 |
SCREW Price: $2.44 |
| 13 |
31152-PE9-942 |
BOLT-WASHER Price: $4.26 |
| 14 |
31153-PZ1-003 |
BOLT Price: $2.64 |
| 15 |
31630-ZY6-013 |
SEE PART DETAILS - PRI; ALTERNATOR ASSY. Price: $1,182.04 |
| 16 |
31631-ZW5-003 |
ROTOR ASSY. Price: $243.37 |
| 17 |
31636-ZY6-010 |
BRACKET, ALTERNATOR Price: $211.88 |
| 18 |
31637-ZY6-010 |
STAY, ALTERNATOR Price: $5.80 |
| 19 |
31639-ZW5-003 |
END COVER, RR. Price: $122.99 |
| 20 |
31644-ZW5-003 |
BUSH, INSULATION Price: $19.58 |
| 21 |
31710-ZW5-003 |
RECTIFIER ASSY. Price: $195.54 |
| 22 |
31750-ZY6-003 |
REGULATOR ASSY. Price: $181.64 |
| 23 |
90011-ZVL-010 |
BOLT, SPL ADJ Price: $7.62 |
| 25 |
90026-ZY9-M01 |
BOLT, FLANGE (8X20) Price: $2.04 |
| 27 |
90055-ZVL-010 |
BOLT, TENSIONER Price: $32.58 |
| 28 |
90163-ZW4-010 |
BOLT, FLANGE (10X80) Price: $2.84 |
| 30 |
90231-PD1-014 |
NUT-WASHER (5MM) Price: $5.58 |
