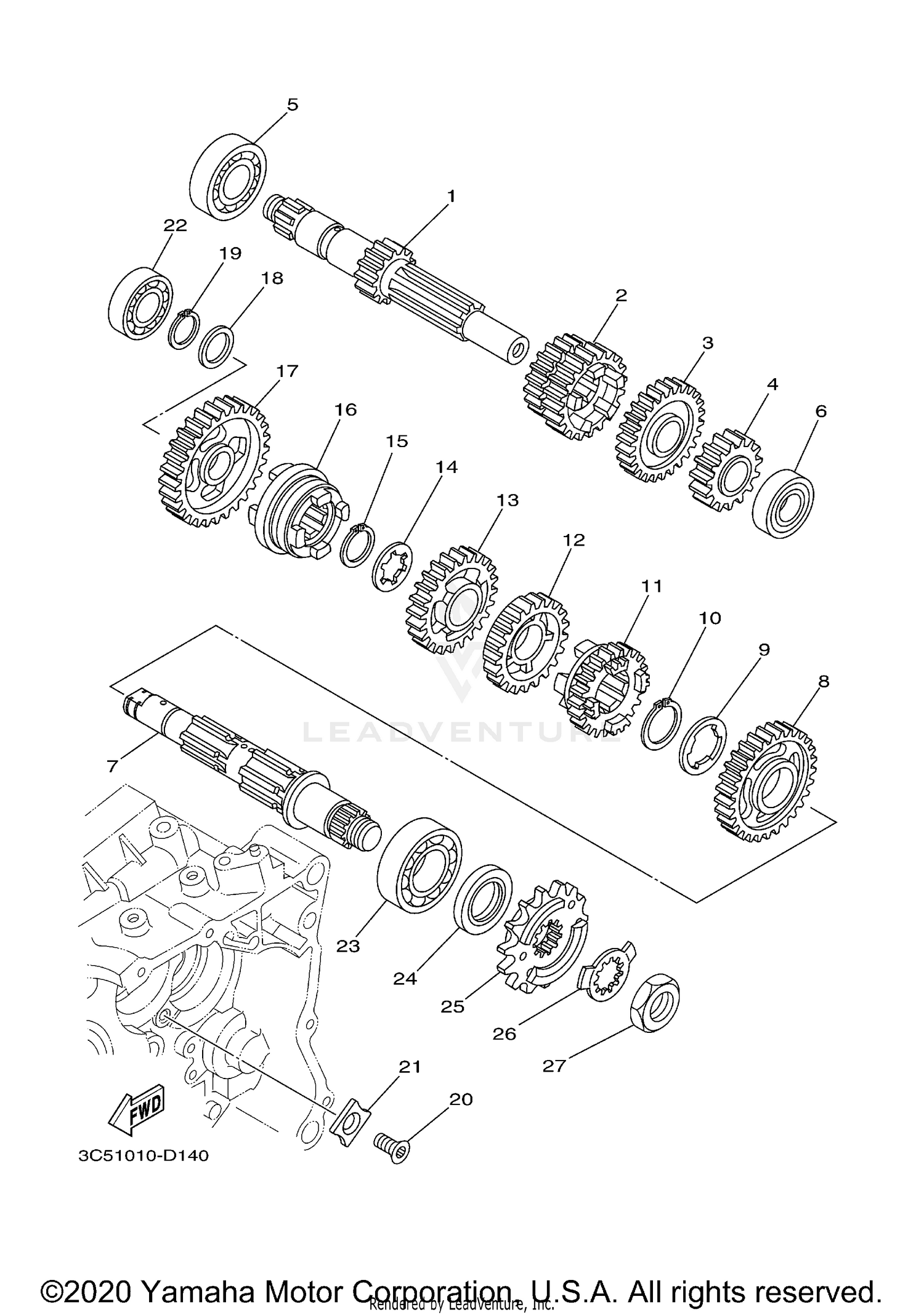

| Ref | Part Number | Description |
|---|
| 1 |
5XT-17411-00-00 |
AXLE, MAIN (13T) Price: $123.99 |
| 2 |
5XT-17131-00-00 |
GEAR, 3RD PINION (22T/28T) Price: $105.99 |
| 3 |
5XT-17151-10-00 |
GEAR, 5TH PINION (28T) Price: $77.99 |
| 4 |
51Y-17121-00-00 |
GEAR, 2ND PINION (16T) Price: $23.99 |
| 5 |
93306-20447-00 |
BEARING This part replaces 93306-20427-00. Price: $45.99 |
| 6 |
93306-00320-00 |
BEARING Price: $39.99 |
| 7 |
3C5-17402-00-00 |
DRIVE AXLE ASSY Price: $142.99 |
| 8 |
5XT-17221-00-00 |
GEAR, 2ND WHEEL (29T) Price: $97.99 |
| 9 |
90209-23241-00 |
WASHER Price: $3.95 |
| 10 |
93410-26067-00 |
CIRCLIP Price: $9.49 |
| 11 |
5XT-17251-10-00 |
GEAR, 5TH WHEEL (23T) Price: $132.99 |
| 12 |
5XT-17241-00-00 |
GEAR, 4TH WHEEL (29T) Price: $63.99 |
| 13 |
5XT-17231-00-00 |
GEAR, 3RD WHEEL (29T) Price: $73.99 |
| 14 |
90209-18208-00 |
WASHER Price: $9.49 |
| 15 |
93410-22039-00 |
CIRCLIP Price: $9.49 |
| 16 |
5BP-17285-00-00 |
CLUTCH, DOG Price: $46.99 |
| 17 |
3C5-17211-00-00 |
GEAR, 1ST WHEEL (37T) Price: $86.99 |
| 18 |
90201-177G4-00 |
WASHER, PLATE Price: $10.49 |
| 19 |
93410-17037-00 |
CIRCLIP Price: $9.49 |
| 20 |
90151-06014-00 |
SCREW, COUNTERSUNK This part replaces 90151-06008-00. Price: $10.49 |
| 21 |
3C5-17558-00-00 |
PLATE, BEARING Price: $6.49 |
| 22 |
93306-20332-00 |
BEARING Price: $42.99 |
| 23 |
93306-20532-00 |
BEARING Price: $72.99 |
| 24 |
93102-25226-00 |
OIL SEAL Price: $16.49 |
| 25 |
5XT-17460-00-00 |
SPROCKET, DRIVE (15T) Price: $26.99 |
| 26 |
90215-23265-00 |
WASHER, LOCK Price: $6.49 |
