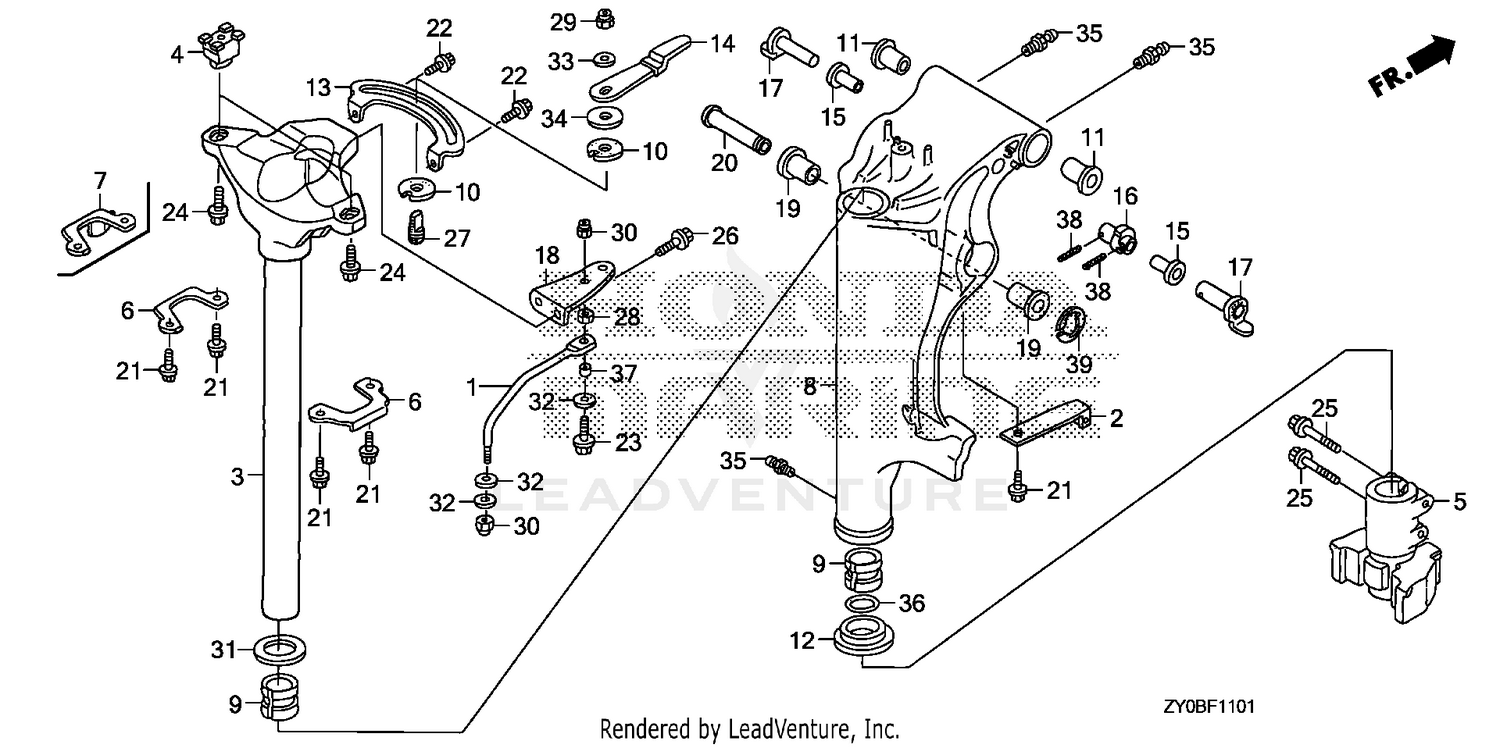

| Ref | Part Number | Description |
|---|
| 2 |
24210-ZV1-010 |
SEE PART DETAILS - PRI; SPRING, CLICK Price: $14.04 |
| 3 |
50100-ZW9-010 |
FRAME, MOUNTING (S) Price: $246.84 |
| 4 |
50150-ZY1-000 |
SEE PART DETAILS - PRI; RUBBER, MOUNTING (UPPER) Price: $27.46 |
| 5 |
50152-ZW9-000 |
RUBBER, MOUNTING (LOWER) Price: $110.14 |
| 6 |
50153-ZW9-000 |
COVER, MOUNTING RUBBER (UPPER) Price: $10.02 |
| 7 |
50153-ZY1-870 |
COVER, MOUNTING RUBBER (UPPER) (PT) Price: $8.80 |
| 9 |
50211-ZW9-000 |
LINER, SWIVEL CASE Price: $5.36 |
| 10 |
50212-ZW9-003 |
SEE PART DETAILS - PRI; BLOCK, FRICTION Price: $14.88 |
| 11 |
50214-ZV5-003 |
BUSH, SWIVEL CASE Price: $10.48 |
| 12 |
50215-ZW9-000 |
COLLAR, SWIVEL CASE Price: $6.52 |
| 13 |
50218-ZW9-010 |
SEE PART DETAILS - PRI; PLATE, FRICTION Price: $12.86 |
| 14 |
50219-ZW9-010 |
SEE PART DETAILS - PRI; LEVER, FRICTION Price: $10.74 |
| 15 |
50522-ZV5-000 |
BUSH, TILT ARM Price: $7.82 |
| 16 |
50527-ZY1-870 |
BRACKET, TILTING Price: $19.08 |
| 17 |
50529-ZY1-870 |
STOPPER, TILT Price: $55.82 |
| 19 |
56513-ZV5-000 |
BUSH, CYLINDER (LOWER) Price: $5.16 |
| 20 |
56532-ZY1-870 |
PIN, CYLINDER (UPPER) Price: $26.02 |
| 21 |
90102-ZW9-000 |
BOLT, FLANGE (6X12) Use from Frame SN 1005249. Price: $2.90 |
| 22 |
90103-ZW9-010 |
BOLT, FLANGE (6X12) Price: $2.80 |
| 24 |
90154-ZW9-000 |
BOLT, FLANGE (10X25) Price: $4.20 |
| 25 |
90159-ZW9-000 |
BOLT, FLANGE (8X45) Price: $5.02 |
| 27 |
90162-ZW9-000 |
BOLT, STUD (8X26) Price: $6.58 |
| 29 |
90305-ZW9-000 |
NUT, SELF-LOCK (8MM) Price: $6.72 |
| 31 |
90454-881-000 |
WASHER, THRUST Price: $3.86 |
| 33 |
90514-921-000 |
WASHER (8MM) Price: $1.36 |
| 34 |
90517-ZW9-000 |
WASHER, NYLON (8MM) Price: $1.94 |
| 35 |
90951-ZV7-010 |
SEE PART DETAILS - PRI; NIPPLE, GREASE Price: $2.60 |
| 36 |
91361-VD6-003 |
O-RING (34X2.4) Price: $3.16 |
| 38 |
94305-25203 |
PIN, SPRING (2.5X20) Price: $1.88 |
