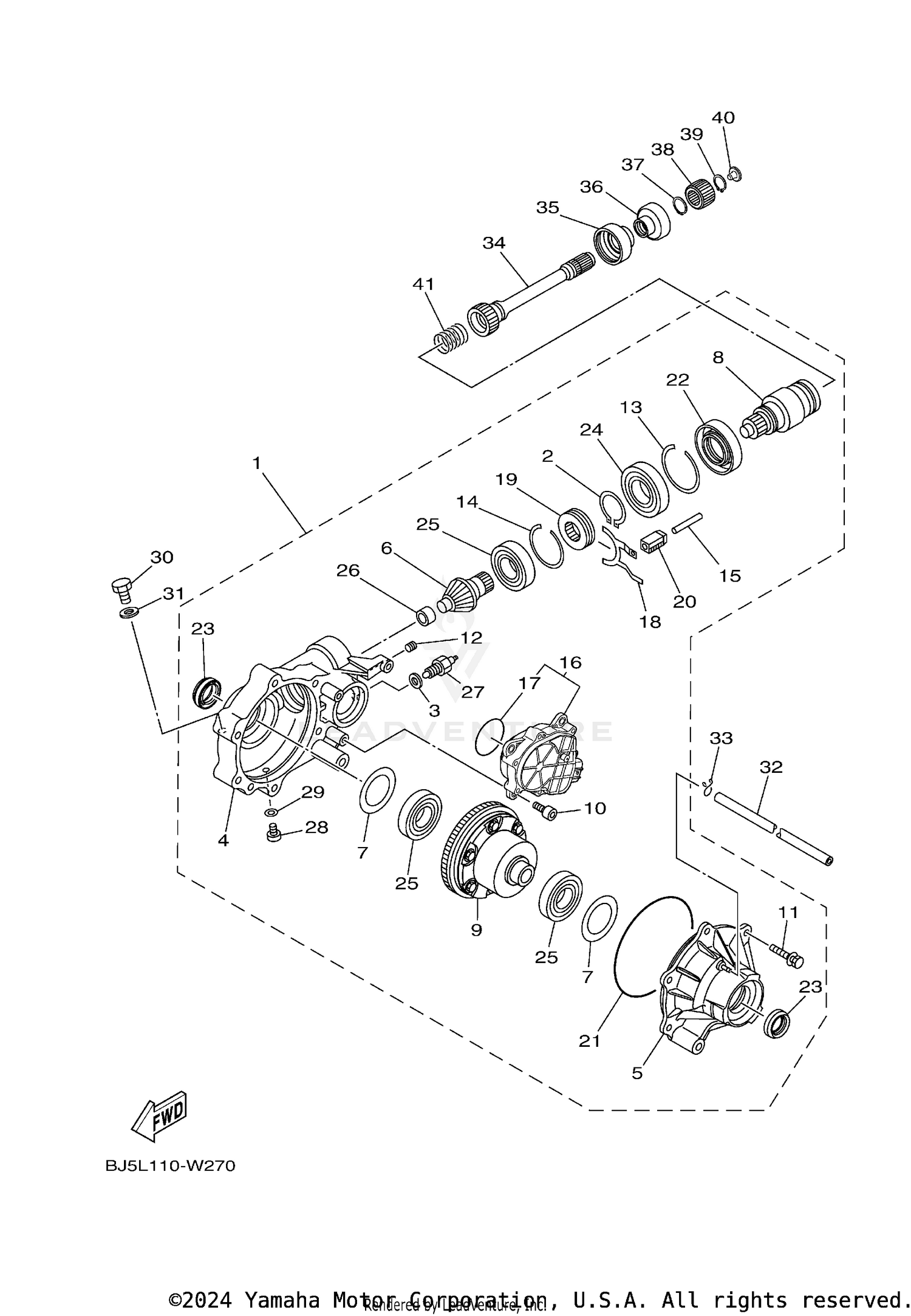

| Ref | Part Number | Description |
|---|
| 1 |
5GH-46160-06-00 |
FRONT AXLE GEAR CASE COMP. Price: $1,796.99 |
| 2 |
93450-44141-00 |
CIRCLIP Price: $5.49 |
| 3 |
4WV-46132-00-00 |
GASKET 1 Price: $4.90 |
| 4 |
5GH-46161-01-00 |
HOUSING, SHAFT DRIVE 2 Price: $396.99 |
| 5 |
5GH-46162-01-00 |
HOUSING, BEARING 2 Price: $190.99 |
| 6 |
5GH-46141-01-00 |
PINION, DRIVE 2 Price: $262.99 |
| 8 |
5GH-46126-01-00 |
COUPLING Price: $170.99 |
| 9 |
5GH-46470-05-00 |
LIMITED SLIP DIFF. A Price: $910.99 |
| 10 |
91317-08020-00 |
BOLT, HEX. SOCKET HEAD Price: $3.05 |
| 11 |
4WV-46159-00-00 |
BOLT 3 Price: $4.80 |
| 12 |
90113-08004-00 |
BOLT, SET Price: $6.49 |
| 13 |
93450-71142-00 |
CIRCLIP Price: $7.99 |
| 14 |
4WV-46143-00-00 |
RING, HOLE SNAP 2 Price: $14.49 |
| 15 |
5GH-18318-00-00 |
SHAFT, SHIFTER Price: $16.49 |
| 16 |
5GH-4616A-02-00 |
SERVO MOTOR COMP Price: $801.99 |
| 17 |
93210-50768-00 |
O-RING Price: $8.49 |
| 18 |
5GH-18514-01-00 |
FORK, SHIFT 4 Price: $43.99 |
| 19 |
4WV-46441-00-00 |
CLUTCH, DRIVEN Price: $63.99 |
| 20 |
5GH-18319-00-00 |
SHAFT 2 Price: $166.99 |
| 21 |
93211-40040-00 |
O-RING Price: $17.49 |
| 22 |
5TE-46163-00-00 |
SEAL, OIL 1 Price: $38.99 |
| 23 |
3B4-46163-00-00 |
SEAL, OIL 1 Price: $19.99 |
| 24 |
93316-00801-00 |
BEARING Price: $92.99 |
| 25 |
4WV-46165-00-00 |
BEARING 2 Price: $74.99 |
| 26 |
4WV-46167-00-00 |
BEARING 4 Price: $39.99 |
| 27 |
3GD-82540-11-00 |
NEUTRAL SWITCH ASSY Price: $60.99 |
| 28 |
90340-10001-00 |
PLUG, STRAIGHT SCREW Price: $6.49 |
| 29 |
90430-10003-00 |
GASKET Price: $9.49 |
| 30 |
90340-14029-00 |
PLUG, STRAIGHT SCREW Price: $4.60 |
| 31 |
214-11198-01-00 |
GASKET Price: $3.17 |
| 32 |
90445-07809-00 |
HOSE (L750) Price: $10.49 |
| 33 |
90467-07029-00 |
CLIP Price: $2.60 |
| 34 |
BB5-G6173-00-00 |
SHAFT, DRIVE 2 Price: $51.99 |
| 35 |
5KM-46137-00-00 |
SEAL 2 Price: $17.99 |
| 36 |
5KM-46136-00-00 |
SEAL 1 Price: $9.49 |
| 37 |
93410-22039-00 |
CIRCLIP Price: $9.49 |
| 38 |
5KM-46126-00-00 |
COUPLING Price: $71.99 |
| 39 |
99009-19400-00 |
CIRCLIP Price: $9.49 |
| 40 |
5KM-46559-00-00 |
DAMPER Price: $8.49 |
