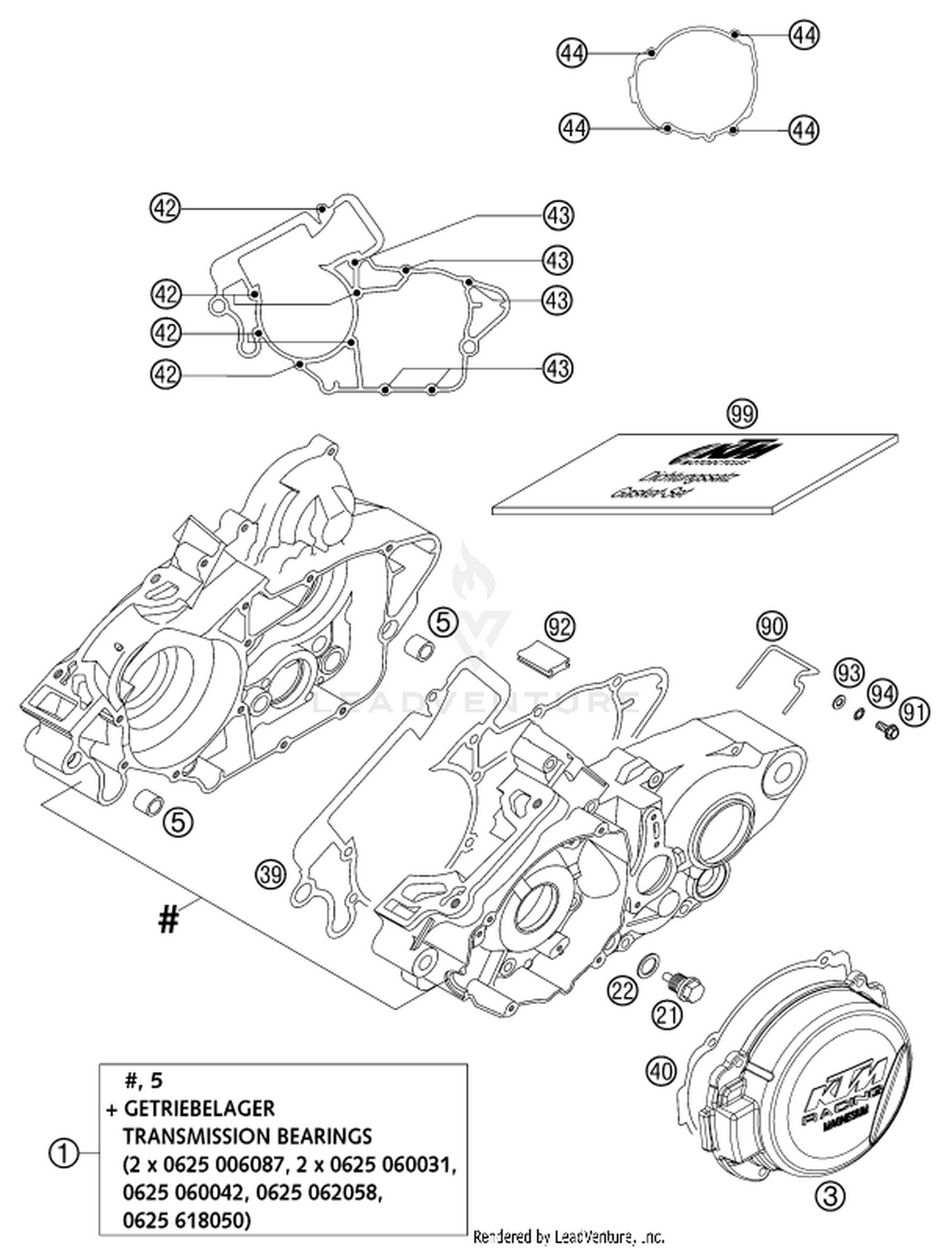

30 ENGINE CASE

30 ENGINE CASE

Parts (13)

RefPart NumberDescription
3 50330002400 IGNITION COVER This part replaces 5033000220098. Price: Call Us
5 54630027000 DOWEL BUSHING 13,8X11X12 Price: Call Us
22 58038022000 CU-seal ring DIN7603-12X18X1.5 Price: Call Us
39 50330039000 ENGINE CASE GASKET 0,5MM '98 Price: Call Us
40 50330040100 IGNITION COVER GASKET 2001 Price: Call Us
42 0025060506 HH collar screw M6x50 TX30 This part replaces 0015060503. Price: Call Us
43 0015060556 HH COLLAR SCR. M6X55 WS=8 10.9 This part replaces 0015060553. Price: Call Us
44 0025050166 HH collar screw M5x16 TX30 This part replaces 0015050163. Price: Call Us
90 50330090000 BRACKET FOR BREATHERTUBE Not Available Price:
91 0025050126 HH collar screw M5x12 TX30 This part replaces 0015050123. Price: Call Us
92 50330092000 OIL GUARD GROMMET 25X31 '98 Price: Call Us
93 0125050003 WASHER DIN0125-A 5,3 Price: Call Us
94 0797050003 TOOTH LOCK WASH. DIN6797-J 5,3 Not Available Price:
