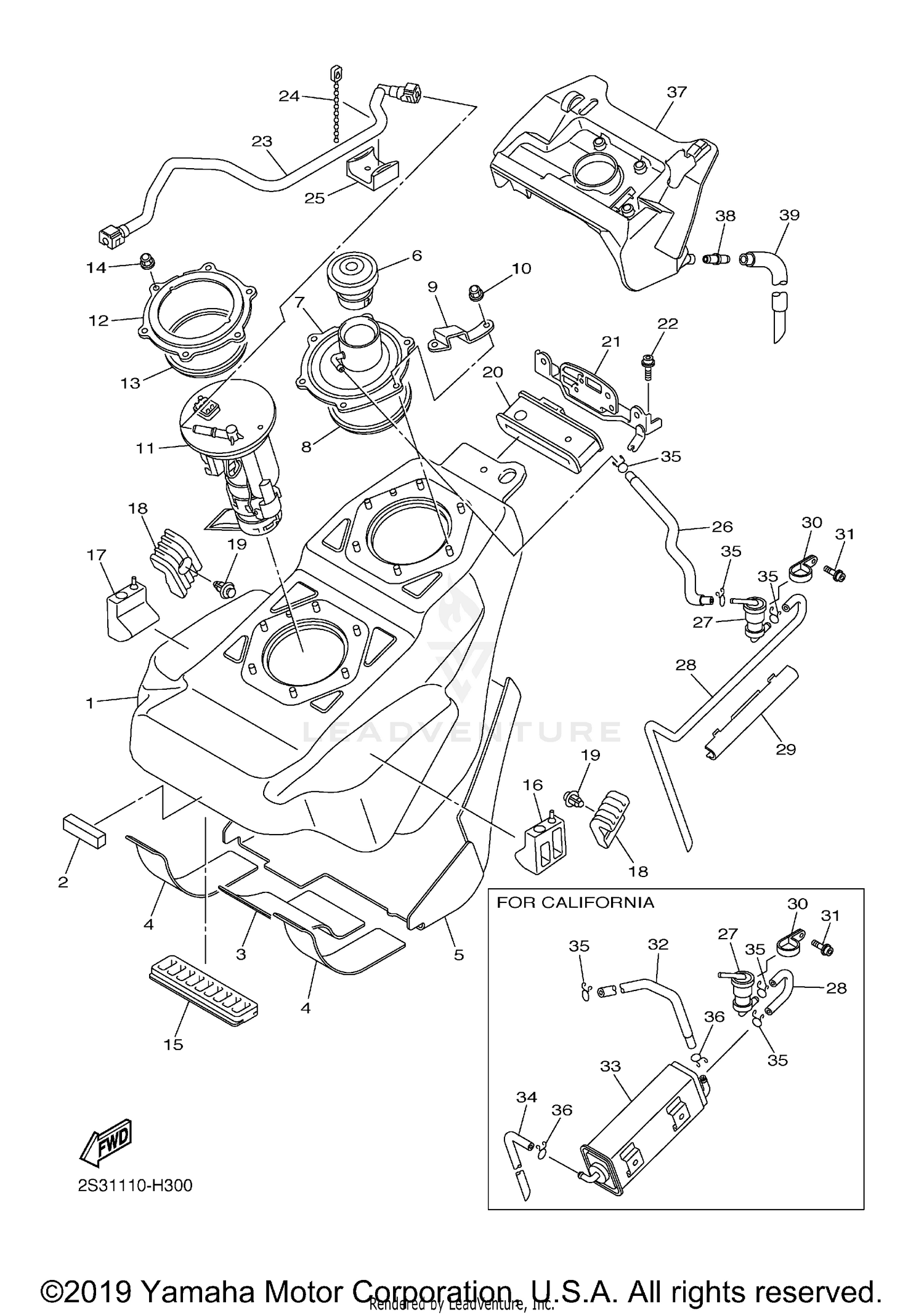

| Ref | Part Number | Description |
|---|
| 1 |
2S3-24110-00-00 |
FUEL TANK COMP. Price: $409.99 |
| 2 |
2C0-2139U-00-00 |
DAMPER 2 Price: $3.65 |
| 3 |
2S3-2414J-00-00 |
DAMPER, PLATE 2 Price: $11.49 |
| 4 |
2S3-2414K-00-00 |
DAMPER, PLATE 3 Price: $11.49 |
| 5 |
2S3-24145-00-00 |
DAMPER, SIDE COVER Price: $90.99 |
| 6 |
54K-24602-10-00 |
CAP ASSY Price: $233.99 |
| 7 |
2S3-21350-01-00 |
FILLER TUBE COMP. Price: $137.99 |
| 8 |
2S3-24486-00-00 |
O-RING Price: $28.99 |
| 9 |
2S3-2411F-00-00 |
PLATE, FITTING Price: $13.49 |
| 10 |
95307-06800-00 |
NUT, CROWN Price: $4.15 |
| 11 |
2S3-13907-03-00 |
FUEL PUMP COMP. This part replaces 2S3-13907-00-00. Price: $552.99 |
| 12 |
1S3-24491-10-00 |
BRACKET, FUEL PUMP Price: $25.99 |
| 13 |
2S3-24486-00-00 |
O-RING Price: $28.99 |
| 14 |
95307-06800-00 |
NUT, CROWN Price: $4.15 |
| 15 |
2S3-24181-00-00 |
DAMPER, LOCATING 1 Price: $8.49 |
| 16 |
2S3-24182-00-00 |
DAMPER, LOCATING 2 Price: $8.49 |
| 17 |
2S3-24182-10-00 |
DAMPER, LOCATING 2 Price: $7.49 |
| 18 |
2S3-24183-00-00 |
DAMPER, LOCATING 3 Price: $6.99 |
| 19 |
90269-06081-00 |
RIVET Price: $8.49 |
| 20 |
2S3-24184-00-00 |
DAMPER, LOCATING 4 Price: $18.49 |
| 21 |
2S3-2413Y-00-00 |
BRACKET, TANK FITTING Price: $65.99 |
| 22 |
90110-06219-00 |
BOLT, HEXAGON SOCKET HEAD Price: $8.49 |
| 23 |
2S3-13971-00-00 |
PIPE, FUEL 1 Price: $91.99 |
| 24 |
80L-26397-00-00 |
BAND Price: $8.49 |
| 25 |
2S3-24144-00-00 |
HOLDER, DAMPER Price: $7.99 |
| 26 |
2S3-24311-00-00 |
PIPE, FUEL 1 Price: $38.99 |
| 27 |
2C0-24180-00-00 |
ROLL OVER VALVE ASSY Price: $56.99 |
| 29 |
2S3-24327-00-00 |
PROTECTOR, PIPE Price: $15.49 |
| 30 |
90464-15014-00 |
CLAMP Price: $3.65 |
| 31 |
90110-05028-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-05062-00. Price: $9.49 |
| 37 |
2S3-2414A-00-00 |
COVER, FILLER Price: $66.99 |
| 38 |
4JP-21753-00-00 |
BOSS, CONNECTOR Price: $4.35 |
