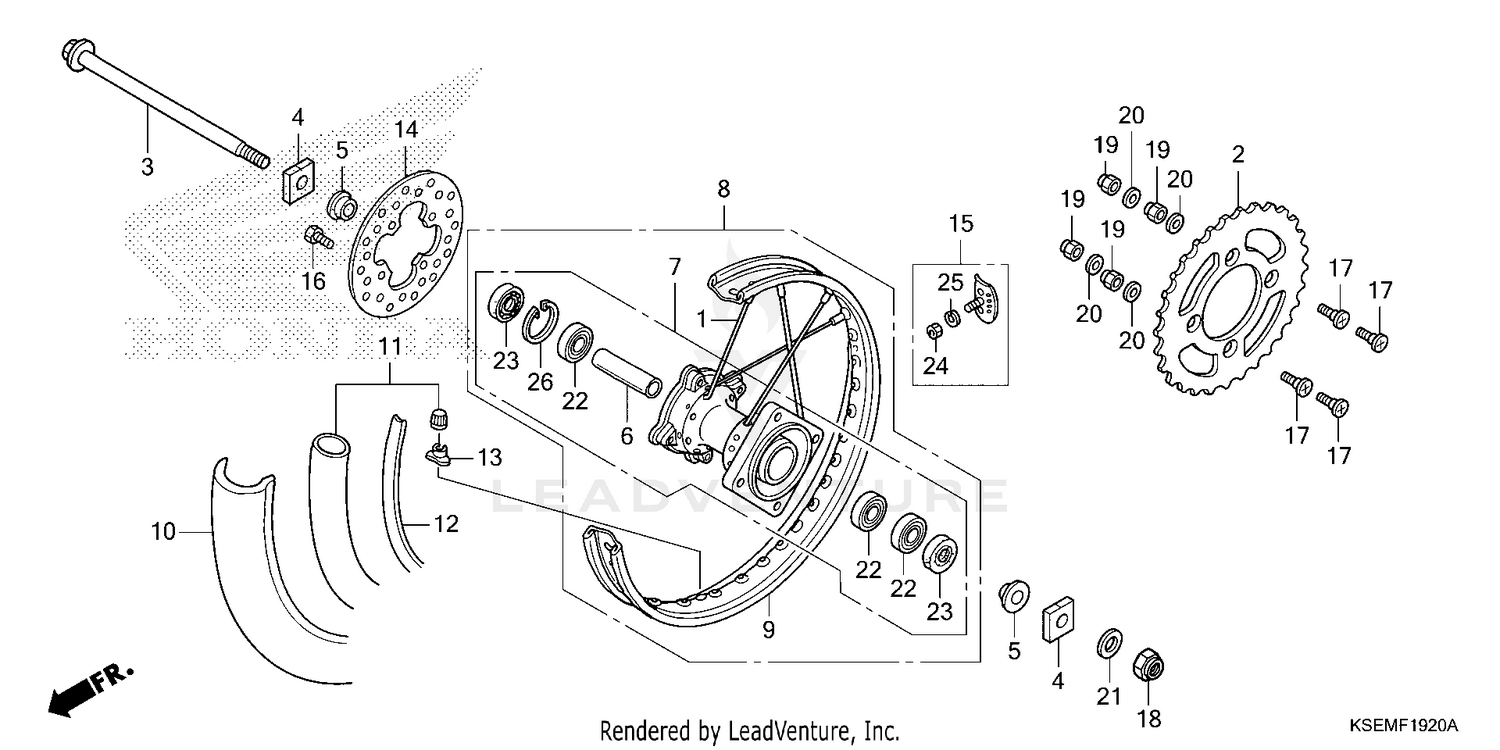

| Ref | Part Number | Description |
|---|
| 1 |
06420-KSE-840 |
SPOKE SET, RR. Price: $4.78 |
| 2 |
41201-KSE-840 |
SPROCKET, FINAL DRIVEN (56T) Price: $66.71 |
| 3 |
42301-KSE-000 |
AXLE, RR. WHEEL Price: $33.15 |
| 4 |
42305-KSE-000 |
COLLAR, RR. AXLE Price: $21.56 |
| 5 |
42311-KSE-000 |
COLLAR, RR. WHEEL SIDE Price: $19.27 |
| 6 |
42620-KSE-000 |
COLLAR, RR. WHEEL DISTANCE Price: $11.51 |
| 7 |
42635-KSE-670 |
HUB SUB-ASSY., RR. Price: $244.64 |
| 8 |
42650-KSE-840 |
WHEEL SUB-ASSY., RR. Price: $635.22 |
| 9 |
42701-KSE-841 |
RIM, RR. WHEEL Price: $281.69 |
| 10 |
42711-KSE-F62 |
TIRE (90/100-16 52M) This part replaces 42711-KSE-F61. Price: $86.96 |
| 11 |
42712-GBF-861 |
TUBE, TIRE (90/100-16) (DUNLOP) Price: $40.89 |
| 12 |
42713-GBF-861 |
FLAP, TIRE (1.85X16) (DUNLOP) Price: $7.02 |
| 13 |
42714-KA3-710 |
CAP, VALVE Price: $12.67 |
| 14 |
43351-KSE-000 |
DISK, RR. BRAKE Price: $184.42 |
| 15 |
42715-KA2-680 |
STOPPER, BEAD (1.85) STOPPER, BEAD (1.85B) Price: $39.11 |
| 16 |
90105-KAE-870 |
BOLT, DISK (6X17) Price: $3.65 |
| 17 |
90125-KA4-000 |
SCREW, FLAT (8X31) Price: $3.87 |
| 18 |
90305-GW2-711 |
NUT, U (16MM) Price: $19.84 |
| 19 |
90309-ML3-791 |
NUT, U (8MM) (FUSE RASHI) Price: $5.47 |
| 20 |
90465-MC4-000 |
WASHER (8MM) Price: $2.87 |
| 21 |
90501-GBM-750 |
WASHER (16MM) Price: $1.16 |
| 22 |
91051-KSE-003 |
BEARING, RADIAL BALL (6003) Price: $14.58 |
| 23 |
91205-VM6-003 |
DUST SEAL (23X35X7) Price: $11.62 |
| 24 |
94001-08000-0S |
NUT, HEX. (8MM) Price: $1.37 |
| 25 |
94111-08000 |
WASHER, SPRING (8MM) Price: $1.03 |
