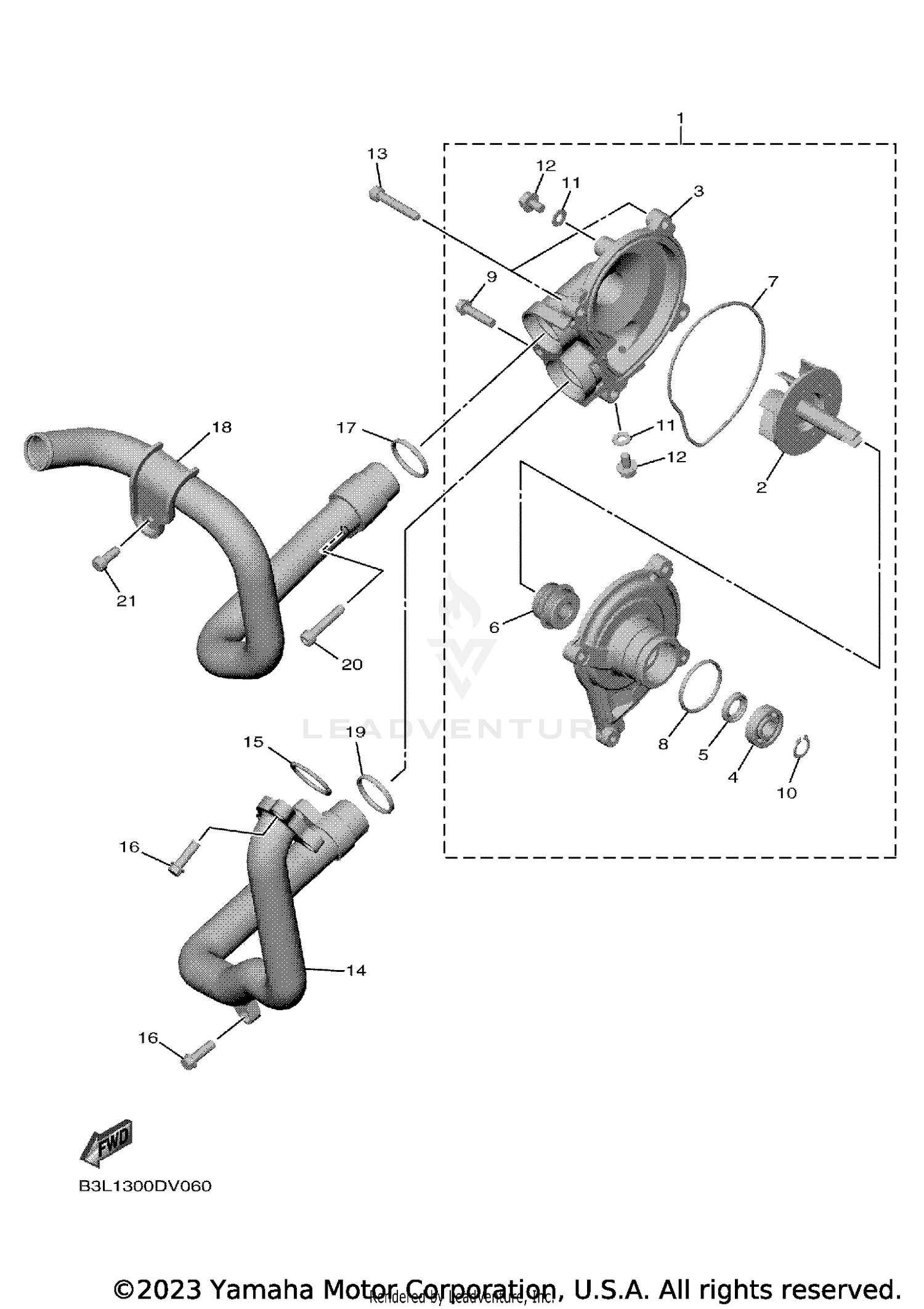

WATER PUMP
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | B67-12420-00-00 | WATER PUMP ASSY Price: $326.99 |
| 2 | 2CR-12450-01-00 | IMPELLER SHAFT ASSY Price: $63.99 |
| 3 | B67-12422-00-00 | COVER, HOUSING Price: $155.99 |
| 4 | 93306-00105-00 | BEARING This part replaces 93306-00106-00. Price: $33.99 |
| 5 | 2CR-13338-00-00 | OIL SEAL Price: $10.99 |
| 6 | 5VK-12438-00-00 | SEAL, MECHANICAL Price: $66.99 |
| 7 | 4XV-12439-00-00 | O-RING Price: $16.49 |
| 8 | 93210-33133-00 | O-RING Price: $3.80 |
| 9 | 95024-06025-00 | BOLT, FLANGE (SMALL HEAD) Price: $2.45 |
| 10 | 99009-12400-00 | CIRCLIP Price: $3.59 |
| 11 | 90430-06166-00 | GASKET Price: $4.05 |
| 12 | 95824-06010-00 | BOLT, FLANGE Price: $9.49 |
| 13 | 91314-06035-00 | BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 14 | 2CR-12481-00-00 | PIPE 1 Price: $110.99 |
| 15 | 93210-27778-00 | O-RING This part replaces 93210-27194-00. Price: $9.49 |
| 16 | 90105-06127-00 | BOLT, FLANGE Price: $9.49 |
| 17 | 93210-26006-00 | O-RING Price: $9.49 |
| 18 | 2CR-12484-00-00 | PIPE 4 Price: $190.99 |
| 19 | 93210-26006-00 | O-RING Price: $9.49 |
| 20 | 90110-06138-00 | BOLT This part replaces 90110-06246-00. Price: $6.49 |
