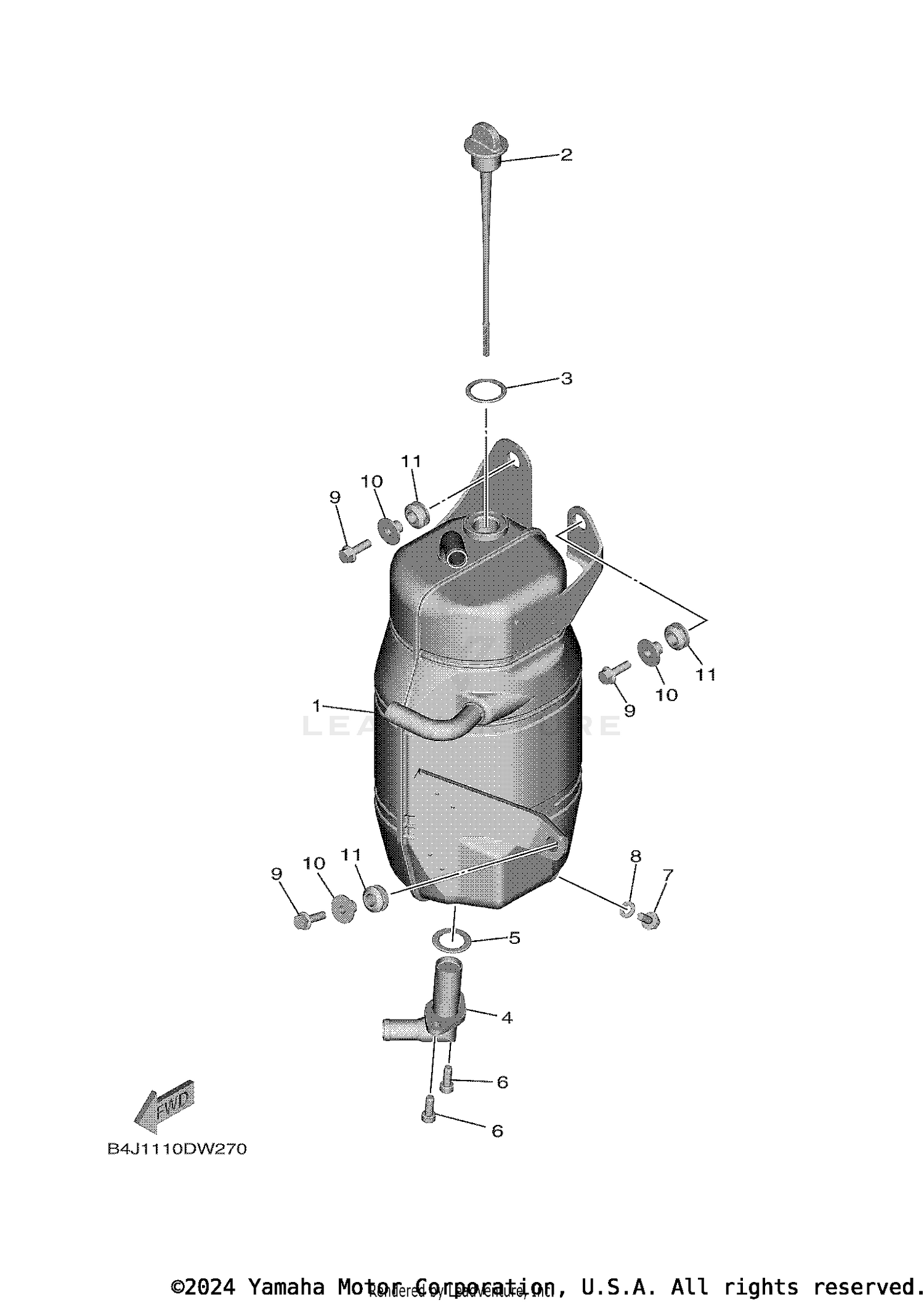

OIL TANK
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | B4J-21751-00-00 | TANK, OIL Price: $514.99 |
| 2 | BG4-85720-00-00 | OIL LEVEL GAUGE ASSY Price: $9.49 |
| 3 | 93210-22006-00 | O-RING Price: $8.49 |
| 4 | BG4-13406-01-00 | OIL PIPE COMP. 2 Price: $75.99 |
| 5 | 93210-24001-00 | O-RING Price: $9.49 |
| 6 | 91312-06016-00 | BOLT, HEXAGON SOCKET HEAD Price: $6.49 |
| 7 | 90105-06128-00 | BOLT, FLANGE Price: $5.49 |
| 8 | 90201-06630-00 | WASHER, PLATE Price: $3.95 |
| 9 | 90105-06155-00 | BOLT, FLANGE This part replaces 90105-06168-00. Price: $4.90 |
| 10 | 90387-06033-00 | COLLAR Price: $9.49 |
