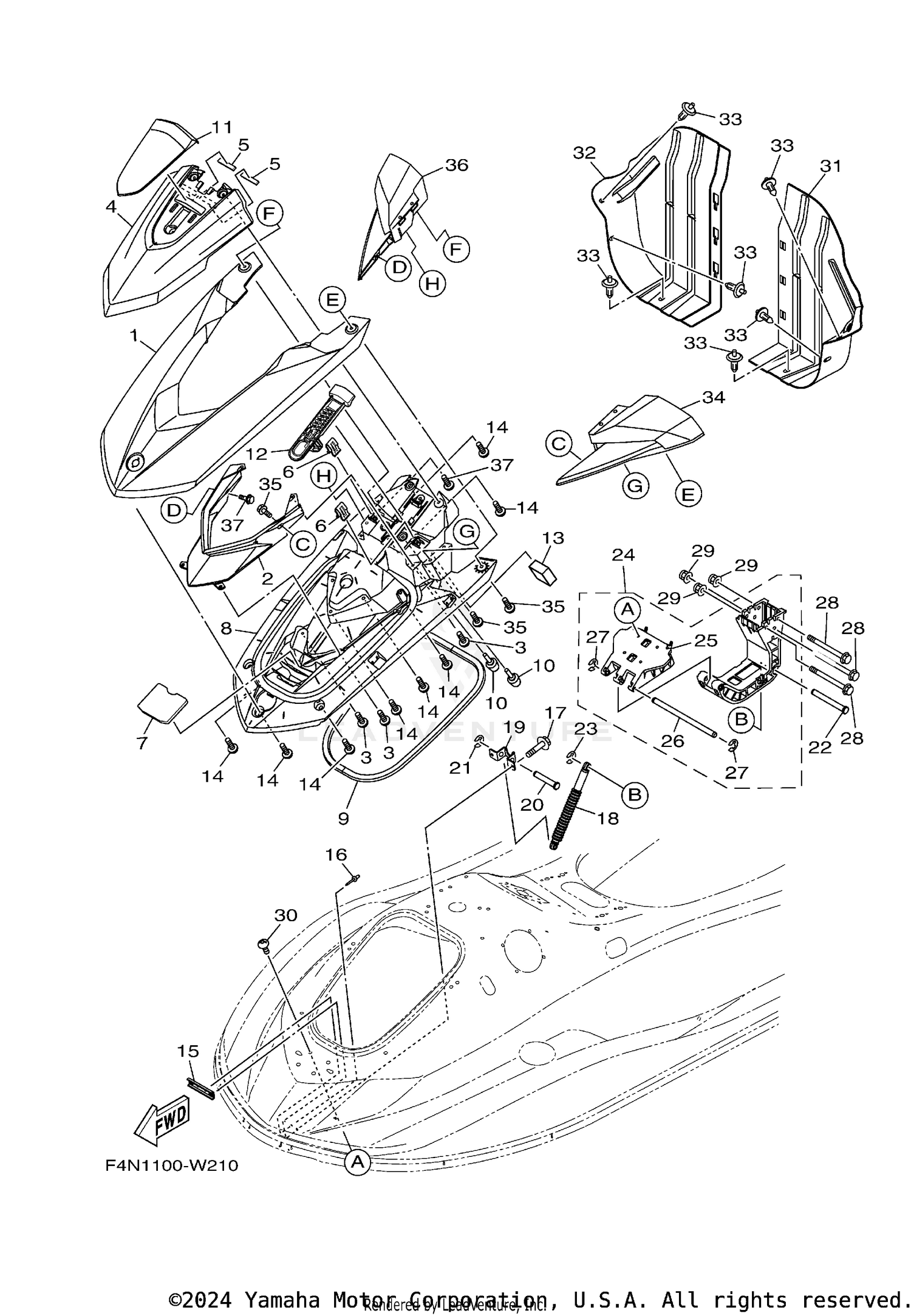

| Ref | Part Number | Description |
|---|
| 2 |
F4N-U517V-00-00 |
ORNAMENT, CENTER Price: $19.99 |
| 3 |
F2S-U13C1-00-00 |
SCREW Price: $6.99 |
| 5 |
F1K-U266B-00-00 |
PACKING 3 Price: $5.99 |
| 6 |
F3Y-U153K-00-00 |
CLIP Price: $5.99 |
| 7 |
F4P-U7462-01-00 |
STOPPER, PACKING Price: $6.99 |
| 8 |
F4N-U519G-01-00 |
INNER, ENGINE HATCH This part replaces F4N-U519G-00-00. Price: $138.99 |
| 9 |
F4P-U2663-01-00 |
PACKING 1 This part replaces F4P-U2663-00-00. Price: $37.99 |
| 10 |
F1W-U3768-01-00 |
CUSHION, RUBBER Price: $5.99 |
| 11 |
F4N-U515P-00-00 |
VISOR, 2 Price: $17.99 |
| 12 |
F4N-U517C-00-00 |
LOCK, LID Price: $17.99 |
| 13 |
F2C-U1743-00-00 |
PACKING Price: $6.99 |
| 14 |
F2S-U13C1-00-00 |
SCREW Price: $6.99 |
| 15 |
F2S-U8592-00-00 |
PLATE, BASE 2 Price: $9.99 |
| 16 |
90267-48938-00 |
RIVET, BLIND This part replaces 90267-489U1-00. Price: $5.49 |
| 17 |
90119-06820-00 |
BOLT, WITH WASHER This part replaces 90119-06832-00. Price: $8.99 |
| 18 |
F4P-U515D-01-00 |
DAMPER 1 This part replaces F4P-U515D-00-00. Price: $76.99 |
| 19 |
F4P-UFRV1-00-00 |
BRACKET, DAMPER 1 Price: $39.99 |
| 20 |
F4P-U7243-00-00 |
KNOB, CHOKE Price: $115.99 |
| 21 |
F4P-U515C-00-00 |
E-RING Price: $4.99 |
| 22 |
F4P-UF8DM-00-00 |
CLEVIS 1 Price: $22.99 |
| 23 |
F4P-U515C-00-00 |
E-RING Price: $4.99 |
| 24 |
F4P-U515A-00-00 |
HINGE ASSY. Price: $121.99 |
| 25 |
F4P-U518E-00-00 |
PLATE, HINGE LID Price: $41.99 |
| 26 |
F4P-U7256-00-00 |
SPRING Price: $6.99 |
| 27 |
F4P-U515C-00-00 |
E-RING Price: $4.99 |
| 28 |
F4P-U4445-00-00 |
BOLT, STUD 1 Price: $5.99 |
| 29 |
F3Y-U142L-00-00 |
NUT, LOCK Price: $6.99 |
| 30 |
90111-06873-00 |
BOLT,HEX. SOCKET BUTTON Price: $10.99 |
| 31 |
F4P-U475B-00-00 |
LOCKER,BOW Price: $35.99 |
| 32 |
F4P-U475F-00-00 |
PLATE, LOKER BOW Price: $36.99 |
| 33 |
F4P-U1454-00-00 |
RIVET Price: $2.99 |
| 34 |
F4N-U590D-70-00 |
MIRROR ASSY. 1 Price: $164.99 |
| 35 |
90119-06803-00 |
BOLT, WITH WASHER This part replaces 90119-06880-00. Price: $8.99 |
| 36 |
F4N-U590E-70-00 |
MIRROR ASSY. 2 Price: $151.99 |
