Parts Catalog

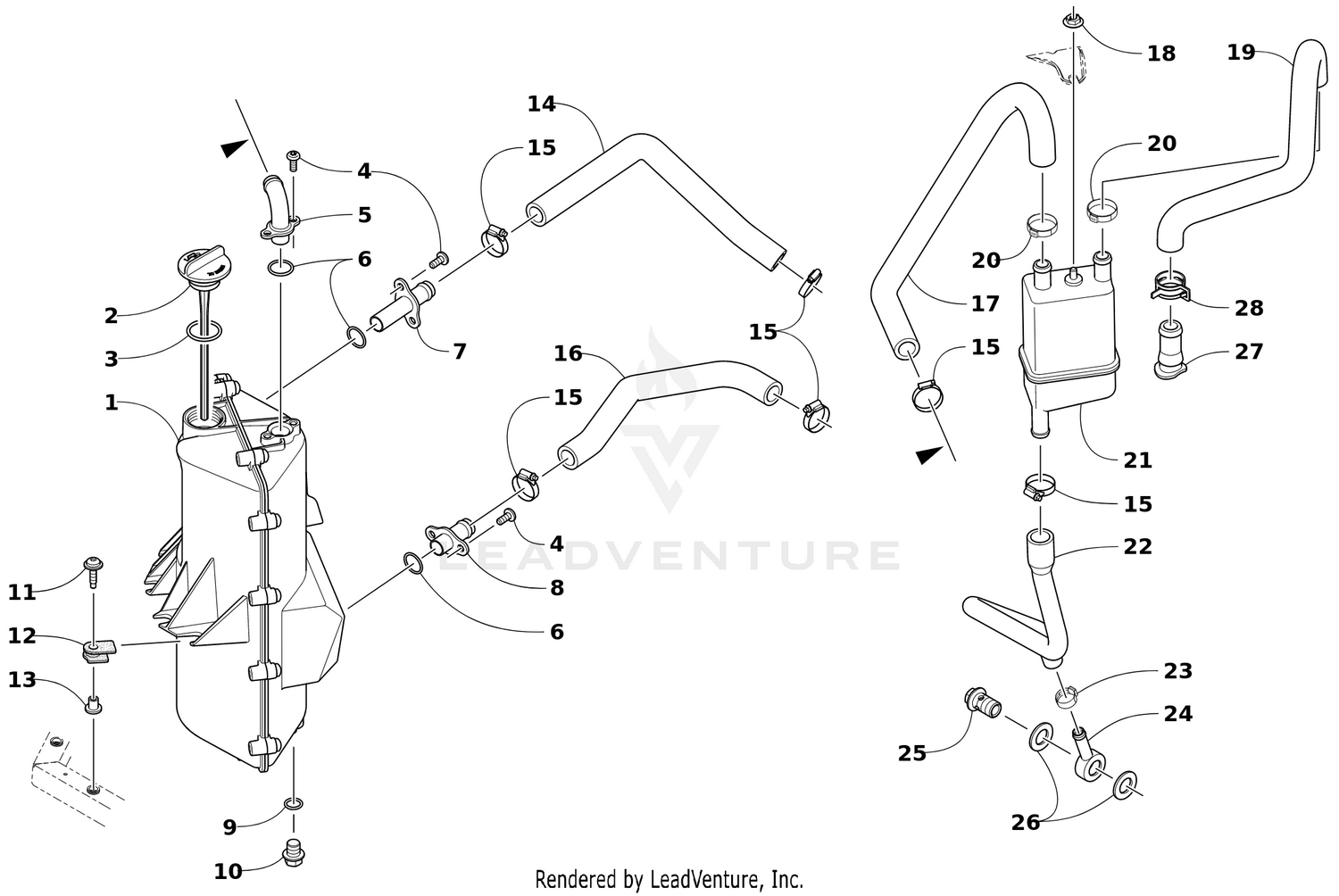

OIL TANK ASSEMBLY [106150]

Parts (25)

Ref	Part Number	Description
1	2670-564	Oil Tank Price: $66.33
3	2670-135	Seal, Cap - Oil Tank Price: $2.42
4	1623-969	Screw, Self-Tapping M6X2.0X12 Price: $1.80
5	2670-420	Fitting - Tank Vent Price: $45.95
6	0670-183	O-Ring Price: $0.35
7	2670-405	Fitting - Tank Return Price: $26.95
8	2670-404	Fitting - Tank Feed Price: $47.95
9	1602-213	O-Ring Price: $0.29
10	2602-099	Plug Price: $15.71
11	2623-084	Screw, Machine Price: $1.80
12	2670-453	Bumper Price: $3.38
13	2623-114	Bushing, Flanged Price: $14.49
14	0610-958	Hose - Return Price: $60.95
15	1623-182	Clamp, Hose Price: $2.09
16	0610-957	Hose - Feed Price: $76.95
17	0610-984	Hose, Tank/Separator Price: $28.95
18	0423-357	NUT, STAMPED-1/4" (SD 25001 SOH) Price: $1.08
19	1610-027	Hose, Airbox/Separator Price: $18.13
20	1623-350	Clamp, Hose Price: $1.70
21	1770-194	Tank, Separator Price: $89.95
23	2623-085	Clamp, Hose Price: $3.75
24	2670-561	Fitting, Oil Return Price: $33.95
25	2670-562	Bolt Price: $42.95
26	0812-026	GASKET,WASHER Price: $4.23
27	1610-028	Fitting, Hose Price: $1.70
