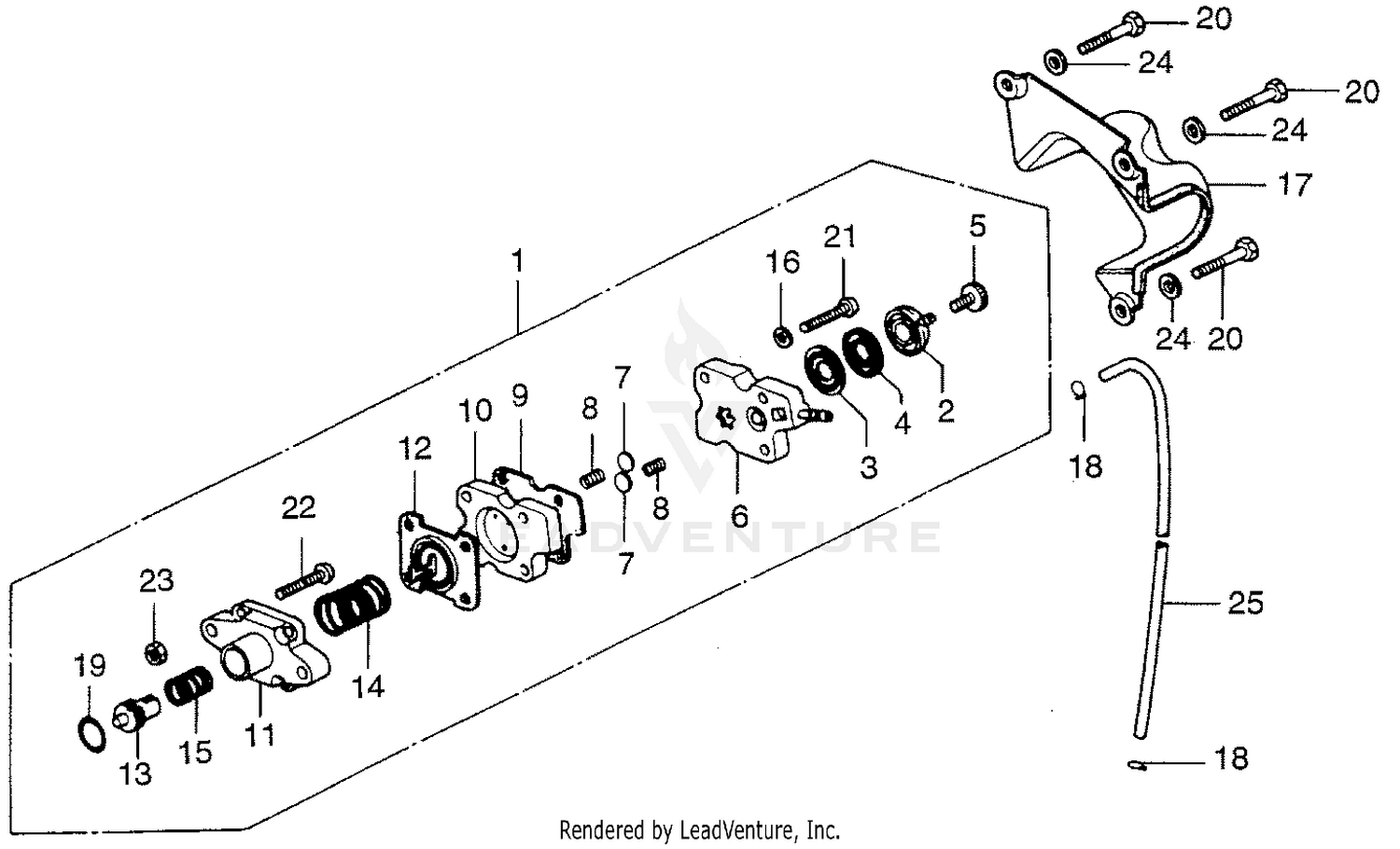

| Ref | Part Number | Description |
|---|
| 1 |
16700-935-325 |
SEE PART DETAILS - PRI; PUMP ASSY., FUEL (NOT AVAILABLE) Price: Call Us |
| 2 |
16701-921-000 |
BODY, FILTER (NOT AVAILABLE) Price: $11.62 |
| 3 |
16702-921-000 |
SCREEN (NOT AVAILABLE) Price: Call Us |
| 4 |
16703-921-000 |
GASKET, SCREEN (NOT AVAILABLE) Price: Call Us |
| 5 |
16704-921-000 |
SCREW, CAP (NOT AVAILABLE) Price: Call Us |
| 6 |
16705-921-000 |
CAP (N/A: SEE ASSEMBLY) (ALT. PNO: 16700-935-325) Price: Call Us |
| 7 |
16706-921-000 |
VALVE (NOT AVAILABLE) Price: Call Us |
| 8 |
16707-921-000 |
SPRING, VALVE (NOT AVAILABLE) Price: Call Us |
| 9 |
16708-921-000 |
GASKET, VALVE (N/A: SEE ASSEMBLY) Price: Call Us |
| 10 |
16709-921-000 |
BODY (UPPER) Price: Call Us |
| 11 |
16710-921-000 |
BODY (LOWER) (N/A: SEE ASSEMBLY) (ALT. PNO: 16700-935-325) Price: Call Us |
| 12 |
16711-921-000 |
DIAPHRAGM (N/A: SEE ASSEMBLY) (ALT. PNO: 16700-935-325) Price: Call Us |
| 13 |
16712-921-000 |
ROD, PUSH (NOT AVAILABLE) Price: Call Us |
| 14 |
16713-921-000 |
SPRING, DIAPHRAGM (NOT AVAILABLE) Price: Call Us |
| 15 |
16714-921-000 |
SPRING, RETURN (NOT AVAILABLE) Price: Call Us |
| 16 |
16715-921-000 |
WASHER, SPRING (4MM) (NOT AVAILABLE) Price: Call Us |
| 17 |
16722-921-010 |
SEE PART DETAILS - PRI; COVER, FUEL PUMP Price: $23.86 |
| 18 |
90602-921-000 |
CLIP, TUBE (B8) Price: $1.90 |
| 19 |
91351-MG7-003 |
SEE PART DETAILS - PRI; O-RING (20.8X2.4) Price: $3.42 |
| 20 |
92201-06028-0B |
SEE PART DETAILS - PRI; BOLT, HEX. (6X28) This part replaces 92000-06028-02. Price: $2.90 |
| 21 |
93500-04028-0B |
SCREW, PAN (4X28) Price: Call Us |
| 22 |
93500-06020-0H |
SEE PART DETAILS - PRI; SCREW, PAN (6X20) Price: $1.24 |
| 23 |
94001-04020-0S |
NUT, HEX. (4MM) Price: $0.57 |
| 24 |
94101-06200 |
WASHER, PLAIN (6MM) Price: $0.86 |
