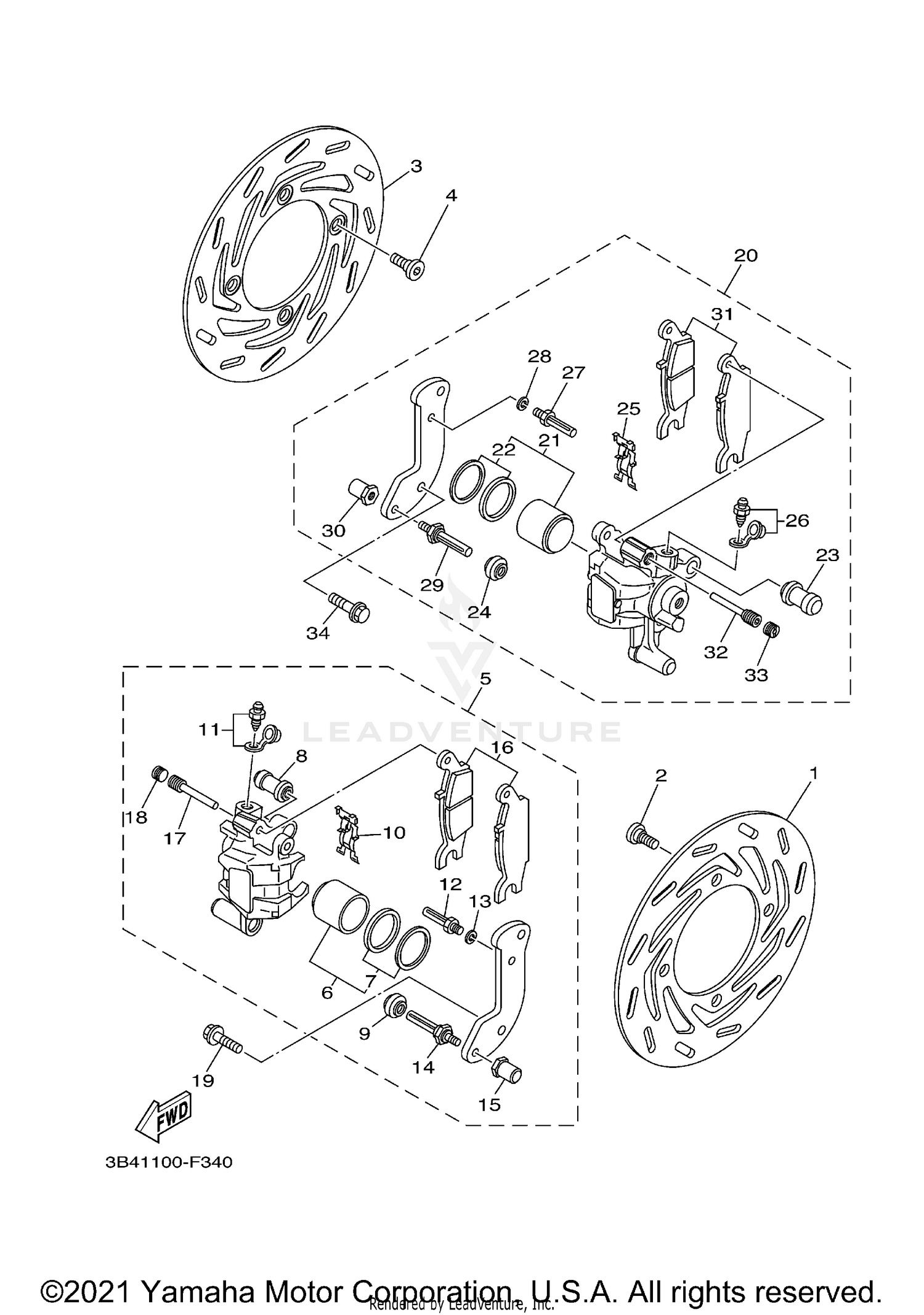

| Ref | Part Number | Description |
|---|
| 1 |
1HP-F582T-00-00 |
DISC, BRAKE (LEFT) Price: $75.99 |
| 2 |
90109-08087-00 |
BOLT This part replaces 90109-08101-00. Price: $3.15 |
| 3 |
1HP-F582T-00-00 |
DISC, BRAKE (LEFT) Price: $75.99 |
| 4 |
90109-08087-00 |
BOLT This part replaces 90109-08101-00. Price: $3.15 |
| 5 |
3B4-2580T-02-00 |
CALIPER ASSY (LEFT) Price: $328.99 |
| 6 |
3B4-W0057-00-00 |
PISTON ASSY, CALIPER Price: $89.99 |
| 7 |
3B4-W0047-00-00 |
CALIPER SEAL KIT Price: $16.49 |
| 8 |
1UY-25937-51-00 |
BOOT 2 Price: $15.49 |
| 9 |
3JD-25917-00-00 |
BOOT, CALIPER Price: $9.49 |
| 10 |
5DH-25919-00-00 |
SUPPORT, PAD Price: $22.99 |
| 11 |
36Y-W0048-00-00 |
BLEED SCREW KIT This part replaces 1UY-W0048-50-00. Price: $10.99 |
| 12 |
1UY-25926-51-00 |
BOLT Price: $4.85 |
| 13 |
1UY-25938-51-00 |
WASHER, SPRING Price: $9.49 |
| 14 |
3JD-25926-00-00 |
BOLT Price: $8.49 |
| 15 |
3JD-25961-00-00 |
NUT Price: $9.49 |
| 16 |
3B4-W0045-00-00 |
BRAKE PAD KIT Price: $50.99 |
| 17 |
5DH-25933-00-00 |
PIN, PAD Price: $24.99 |
| 18 |
5DH-25916-00-00 |
PLUG Price: $10.99 |
| 19 |
90105-08161-00 |
BOLT, FLANGE Price: $8.49 |
| 20 |
3B4-2580U-02-00 |
CALIPER ASSY (RIGHT) Price: $328.99 |
| 21 |
3B4-W0057-00-00 |
PISTON ASSY, CALIPER Price: $89.99 |
| 22 |
3B4-W0047-00-00 |
CALIPER SEAL KIT Price: $16.49 |
| 23 |
1UY-25937-51-00 |
BOOT 2 Price: $15.49 |
| 24 |
3JD-25917-00-00 |
BOOT, CALIPER Price: $9.49 |
| 25 |
5DH-25919-00-00 |
SUPPORT, PAD Price: $22.99 |
| 26 |
36Y-W0048-00-00 |
BLEED SCREW KIT This part replaces 1UY-W0048-50-00. Price: $10.99 |
| 27 |
1UY-25926-51-00 |
BOLT Price: $4.85 |
| 28 |
1UY-25938-51-00 |
WASHER, SPRING Price: $9.49 |
| 29 |
3JD-25926-00-00 |
BOLT Price: $8.49 |
| 30 |
3JD-25961-00-00 |
NUT Price: $9.49 |
| 31 |
3B4-W0045-10-00 |
BRAKE PAD KIT Price: $50.99 |
| 32 |
5DH-25933-00-00 |
PIN, PAD Price: $24.99 |
| 33 |
5DH-25916-00-00 |
PLUG Price: $10.99 |
