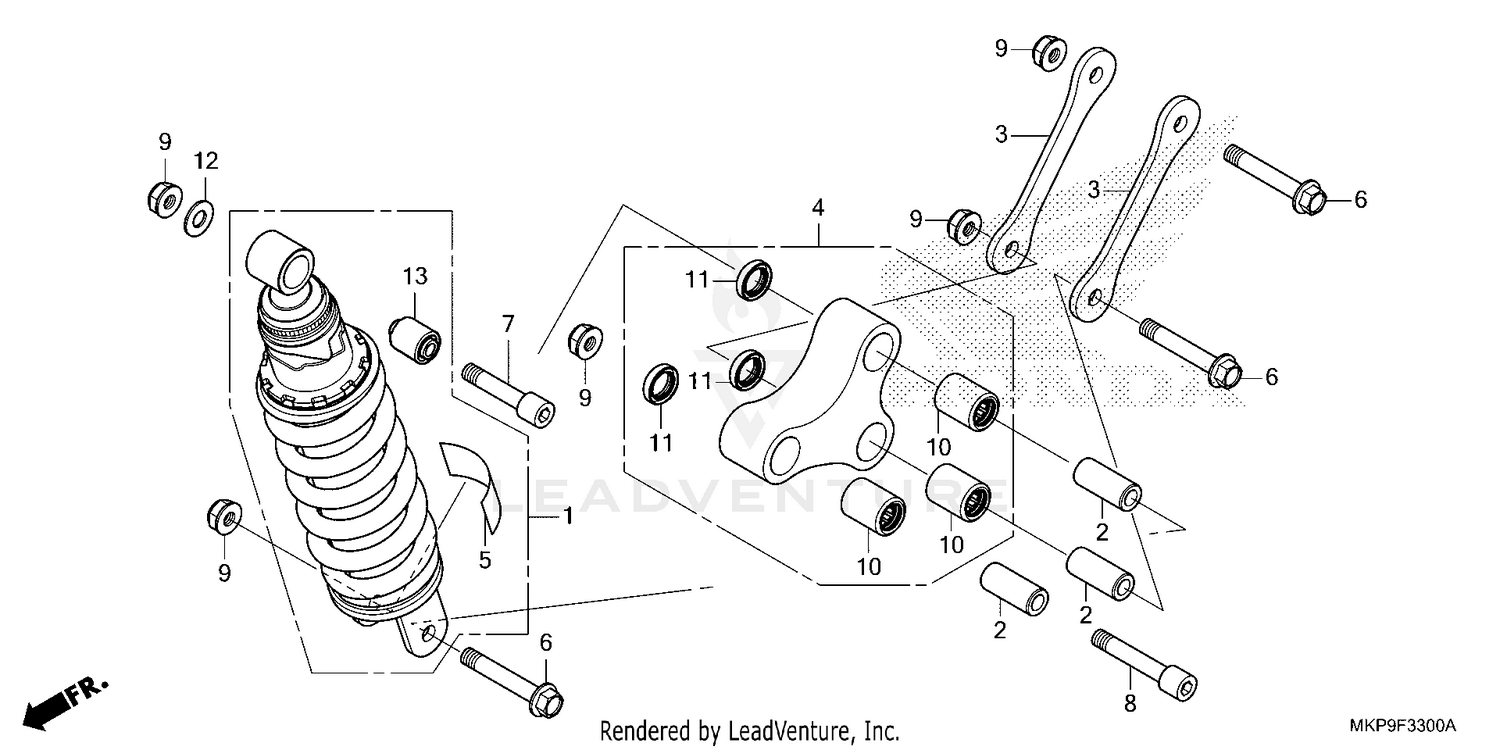

| Ref | Part Number | Description |
|---|
| 1 |
52400-MKP-AN1 |
CUSHION ASSY., RR. Price: $349.45 |
| 2 |
52463-MGZ-J00 |
COLLAR, CUSHION CONNECTING ROD Price: $5.91 |
| 3 |
52471-MKP-J00 |
PLATE, CUSHION CONNECTING ROD Price: $5.80 |
| 4 |
52465-MKP-J00 |
ARM SUB-ASSY., CUSHION Price: $153.64 |
| 5 |
87516-MBL-610 |
LABEL, RR. DAMPER Price: $4.93 |
| 6 |
90121-MGZ-J00 |
BOLT, FLANGE (10X62) Price: $2.07 |
| 7 |
90122-MGZ-J00 |
BOLT, SOCKET (10X48) Price: $5.15 |
| 8 |
90123-MGZ-J00 |
BOLT, SOCKET (10X58) Price: $5.69 |
| 9 |
90304-KGH-901 |
NUT, U (10MM) Price: $3.96 |
| 10 |
91052-MGS-D31 |
BEARING, NEEDLE (17X24X30) Price: $11.84 |
| 11 |
91262-KV3-831 |
DUST SEAL (17X24X5) (ARAI) Price: $7.78 |
| 12 |
94101-10800 |
WASHER, PLAIN (10.5X22X1.6) Price: $1.97 |
