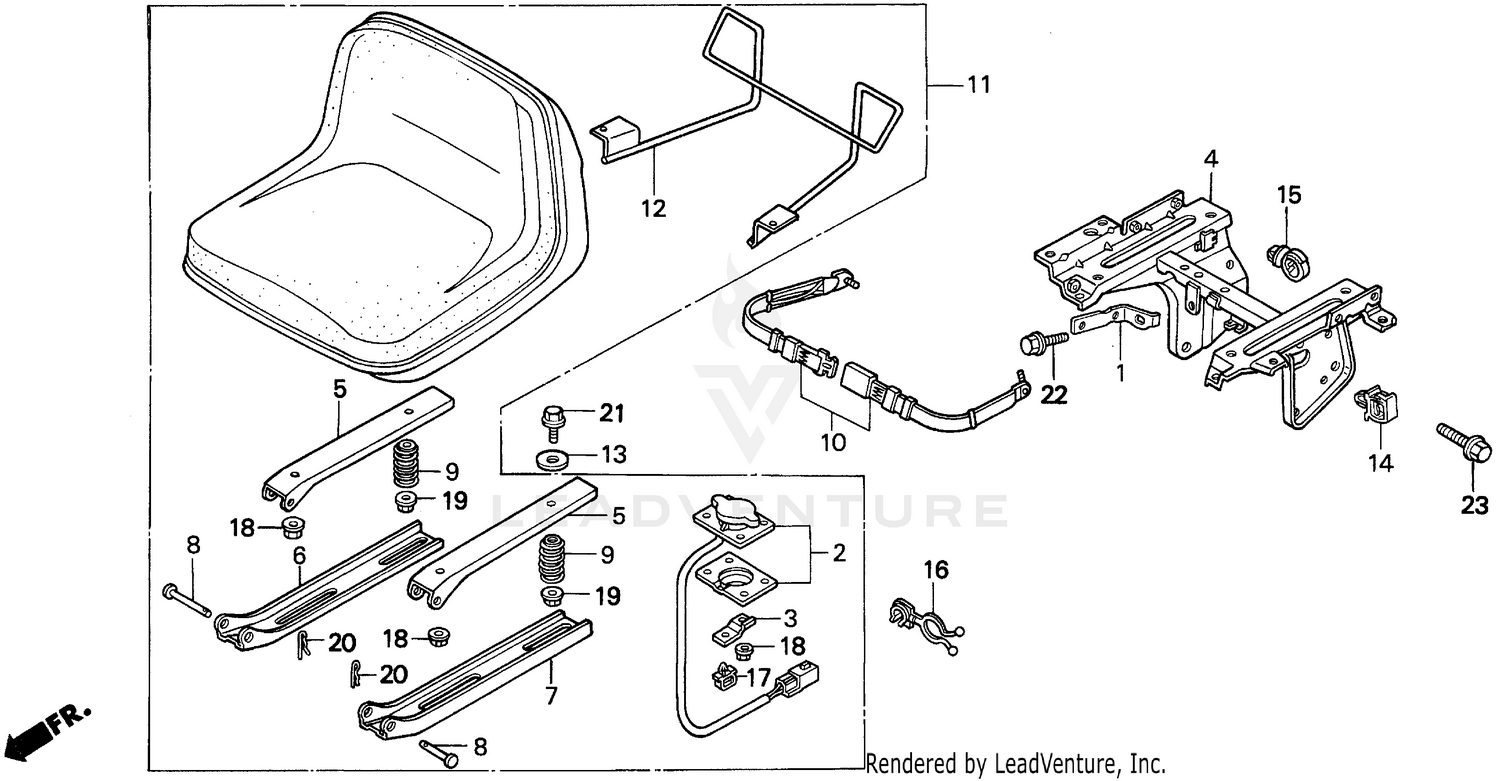

| Ref | Part Number | Description |
|---|
| 1 |
32114-752-000 |
BRACKET, HARNESS CLIP (B) Price: $8.96 |
| 2 |
35800-752-631 |
SWITCH ASSY., SEAT Price: $71.68 |
| 3 |
35806-758-000 |
BASE, CLIP Price: $5.88 |
| 4 |
65160-752-B30 |
FRAME, SEAT SUPPORT Price: $277.58 |
| 5 |
77223-750-003 |
BASE, SEAT (UPPER) Price: $63.92 |
| 6 |
77224-750-003 |
BASE, R. SEAT (LOWER) Price: $60.24 |
| 7 |
77225-750-003 |
BASE, L. SEAT (LOWER) Price: $60.24 |
| 8 |
77226-750-003 |
PIN, SEAT BASE (8MM) Price: $6.08 |
| 9 |
77228-752-003 |
SPRING, SEAT Price: $17.68 |
| 10 |
77610-752-B31 |
SEAT BELT ASSY. Price: $187.56 |
| 11 |
81100-752-B30 |
SEAT ASSY. Price: $643.44 |
| 12 |
83517-752-B30 |
HOLDER, TOOL BOX Price: $83.92 |
| 13 |
90426-355-000 |
WASHER, ROTOR SETTING Price: $5.56 |
| 14 |
90650-SB6-003 |
CLIP, HARNESS (15MM) (BLUE) Price: $5.50 |
| 15 |
90681-763-A01 |
CLIP, WIRE HARNESS Price: $11.04 |
| 17 |
91508-SA4-003 |
CLIP, WIRE HARNESS (BLACK) Price: $9.84 |
| 18 |
94050-06080 |
SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0612689). Price: $0.82 |
| 19 |
94071-06080 |
NUT-WASHER (6MM) Price: $1.84 |
| 20 |
94251-08000 |
SEE PART DETAILS - PRI; PIN, LOCK (8MM) (Honda Code 0115527). Price: $1.54 |
| 21 |
95701-08016-07 |
BOLT, FLANGE (8X16) Price: $2.20 |
| 22 |
95701-08020-08 |
SEE PART DETAILS - PRI; BOLT, FLANGE (8X20) (Honda Code 2440477). Price: $1.98 |
