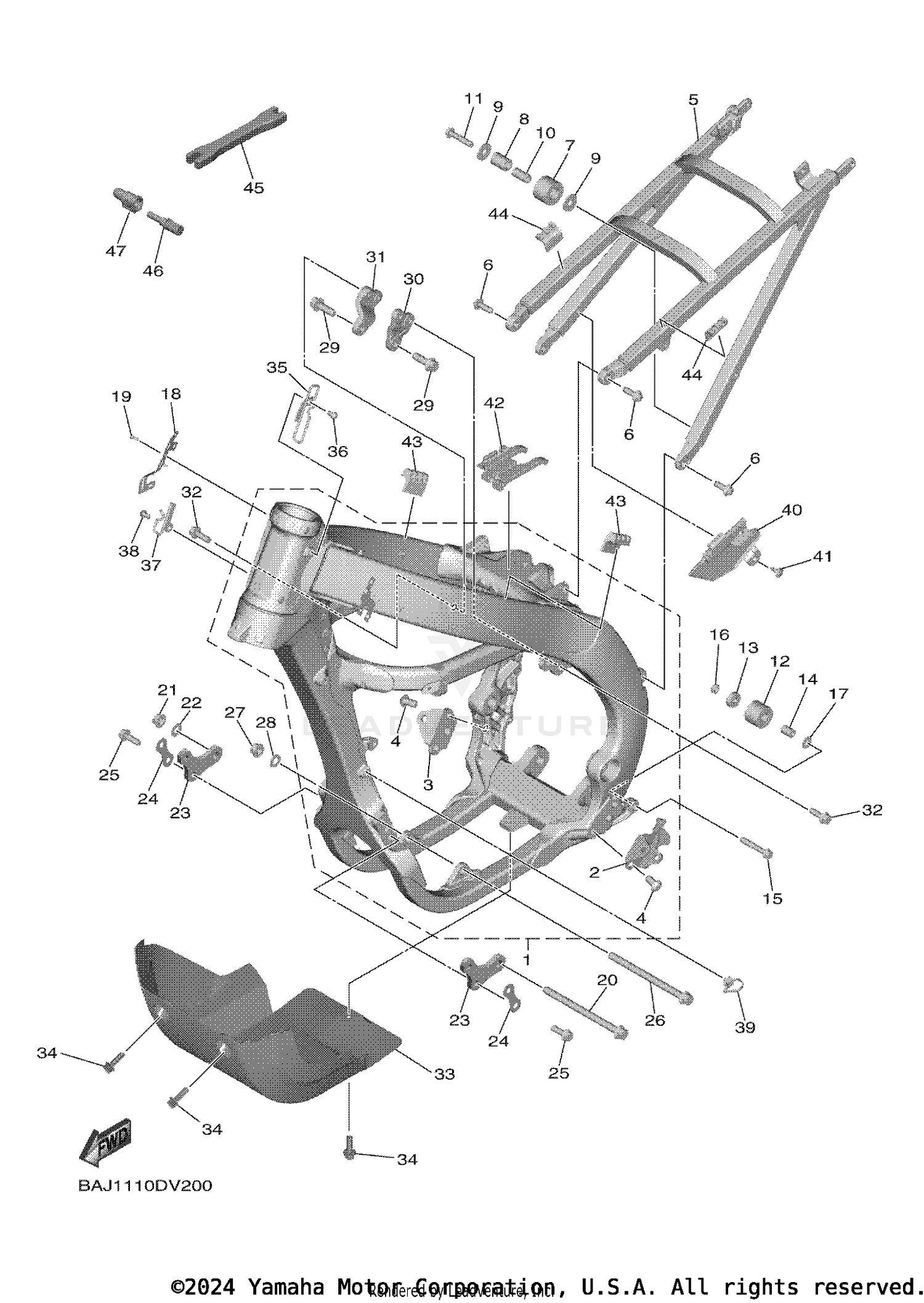

| Ref | Part Number | Description |
|---|
| 1 |
BEX-21101-01-00 |
FRONT FRAME COMP. Price: $3,392.99 |
| 2 |
B3J-21447-00-00 |
BRACKET,FOOTREST Price: $294.99 |
| 3 |
17D-21448-00-00 |
BRACKET, FOOTREST Price: $41.99 |
| 4 |
90149-10033-00 |
SCREW This part replaces 90149-10031-00. Price: $6.49 |
| 5 |
BR9-21190-10-00 |
REAR FRAME COMP. Price: $471.99 |
| 6 |
90105-08230-00 |
BOLT, FLANGE Price: $4.65 |
| 7 |
30X-22178-00-00 |
TENSIONER Price: $38.99 |
| 8 |
4V4-22184-00-00 |
BUSH Price: $4.80 |
| 9 |
90201-08045-00 |
WASHER, PLATE Price: $6.49 |
| 10 |
90387-08041-00 |
COLLAR Price: $9.49 |
| 11 |
95E32-08040-00 |
BOLT, FLANGE DEEP RECESS Price: $0.95 |
| 12 |
BR9-22178-00-00 |
TENSIONER Price: $39.99 |
| 13 |
93300-60804-00 |
BEARING This part replaces 93300-60839-00. Price: $13.49 |
| 14 |
90387-086N4-00 |
COLLAR Price: $10.49 |
| 15 |
90105-08232-00 |
BOLT, FLANGE Price: $2.60 |
| 16 |
95617-08100-00 |
NUT, U This part replaces 90185-08009-00. Price: $10.49 |
| 17 |
90201-08043-00 |
WASHER, PLATE Price: $8.49 |
| 18 |
B3J-21149-00-00 |
BRACKET, BATTERY BOX Price: $34.99 |
| 19 |
90267-32146-00 |
RIVET, BLIND Price: $8.49 |
| 20 |
90105-10230-00 |
BOLT, FLANGE Price: $9.49 |
| 21 |
90179-10658-00 |
NUT Price: $10.49 |
| 22 |
90201-10045-00 |
WASHER, PLATE Price: $9.49 |
| 23 |
BAK-21417-00-00 |
BRACKET, FRONT LOWER 1 Price: $18.49 |
| 24 |
BAJ-21418-00-00 |
BRACKET, FRONT LOW Price: $20.99 |
| 25 |
90105-08143-00 |
BOLT, FLANGE Price: $8.49 |
| 26 |
90105-10176-00 |
BOLT, FLANGE Price: $13.49 |
| 27 |
90179-10658-00 |
NUT Price: $10.49 |
| 28 |
90201-10045-00 |
WASHER, PLATE Price: $9.49 |
| 29 |
90105-10189-00 |
BOLT, FLANGE Price: $10.49 |
| 30 |
B7B-21425-00-00 |
BRACKET, REAR UPPER Price: $71.99 |
| 31 |
95D95-06030-00 |
BOLT, FLANGE DEEP This part replaces B7B-21426-00-00. Price: $5.35 |
| 32 |
90105-08143-00 |
BOLT, FLANGE Price: $8.49 |
| 33 |
B3J-2147A-00-00 |
GUARD, ENGINE 1 Price: $64.99 |
| 34 |
90119-06166-00 |
BOLT, WITH WASHER Price: $6.49 |
| 35 |
1SL-21163-01-00 |
HOLDER, CLUTCH CABLE Price: $19.99 |
| 36 |
92012-06010-00 |
BOLT, BUTTON HEAD Price: $4.65 |
| 37 |
B29-21163-00-00 |
HOLDER, CLUTCH CABLE Price: $13.49 |
| 38 |
92012-06010-00 |
BOLT, BUTTON HEAD Price: $4.65 |
| 39 |
90464-31002-00 |
CLAMP Price: $4.82 |
| 40 |
BR9-2171X-02-00 |
COVER, SIDE 6 Price: $8.49 |
| 41 |
90269-06081-00 |
RIVET Price: $8.49 |
| 42 |
BR9-24181-00-00 |
DAMPER, LOCATING 1 Price: $35.99 |
| 43 |
BR9-24182-00-00 |
DAMPER, LOCATING 2 Price: $32.99 |
| 44 |
BR9-24183-10-00 |
DAMPER, LOCATING 3 Price: $16.49 |
| 45 |
5ET-28166-10-00 |
WRENCH, HEXAGON Price: $35.99 |
| 46 |
18P-2467E-00-00 |
CAP Price: $7.49 |
