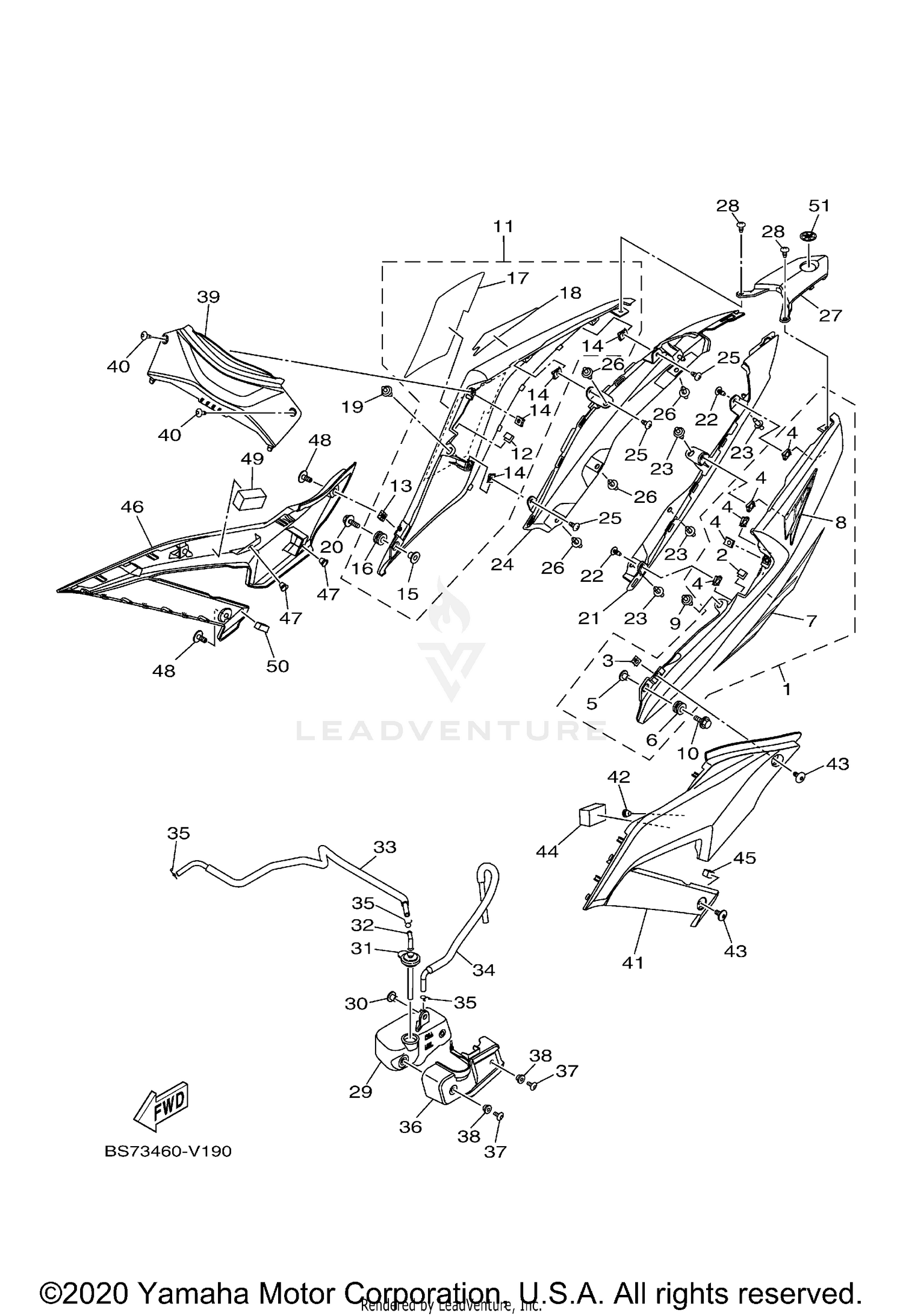

| Ref | Part Number | Description |
|---|
| 2 |
31B-F8307-00-00 |
SEAL Price: $2.35 |
| 3 |
90183-050A7-00 |
NUT, SPRING Price: $3.80 |
| 4 |
90183-05042-00 |
NUT, SPRING This part replaces 90183-05807-00. Price: $1.00 |
| 5 |
90387-06899-00 |
COLLAR Price: $3.50 |
| 6 |
90480-12808-00 |
GROMMET Price: $2.45 |
| 7 |
BS7-F173E-10-00 |
GRAPHIC 1 Price: $32.99 |
| 8 |
BS7-F174G-00-00 |
GRAPHIC 3 Price: $4.10 |
| 9 |
90269-06816-00 |
RIVET Price: $1.70 |
| 10 |
90119-06096-00 |
BOLT, WITH WASHER This part replaces 90119-06810-00. Price: $4.30 |
| 12 |
31B-F8307-00-00 |
SEAL Price: $2.35 |
| 13 |
90183-050A7-00 |
NUT, SPRING Price: $3.80 |
| 14 |
90183-05042-00 |
NUT, SPRING This part replaces 90183-05807-00. Price: $1.00 |
| 15 |
90387-06899-00 |
COLLAR Price: $3.50 |
| 16 |
90480-12808-00 |
GROMMET Price: $2.45 |
| 17 |
BS7-F173F-10-00 |
GRAPHIC 2 Price: $32.99 |
| 18 |
BS7-F174H-00-00 |
GRAPHIC 4 Price: $4.80 |
| 19 |
90269-06816-00 |
RIVET Price: $1.70 |
| 20 |
90119-06096-00 |
BOLT, WITH WASHER This part replaces 90119-06810-00. Price: $4.30 |
| 21 |
1WD-F171L-00-00 |
MOLE, SIDE COVER 1 Price: $4.95 |
| 22 |
97707-50016-00 |
SCREW, TRUSS HEAD TAPPING Price: $1.85 |
| 23 |
90269-06816-00 |
RIVET Price: $1.70 |
| 24 |
1WD-F171M-00-00 |
MOLE, SIDE COVER 2 Price: $18.49 |
| 25 |
97707-50016-00 |
SCREW, TRUSS HEAD TAPPING Price: $1.85 |
| 26 |
90269-06816-00 |
RIVET Price: $1.70 |
| 27 |
1WD-F171N-00-00 |
MOLE, SIDE COVER 3 Price: $13.49 |
| 28 |
97707-50016-00 |
SCREW, TRUSS HEAD TAPPING Price: $1.85 |
| 29 |
1WD-F1871-01-00 |
TANK, RECOVERY Price: $23.99 |
| 30 |
90387-06857-00 |
COLLAR Price: $1.25 |
| 31 |
1WD-F1875-02-00 |
CAP This part replaces 1WD-F1875-00-00. Price: $3.30 |
| 32 |
26H-21828-00-00 |
ELBOW This part replaces 3C1-F1828-00-00. Price: $30.99 |
| 33 |
1WD-F1816-02-00 |
PIPE 1 This part replaces 1WD-F1816-01-00. Price: $13.49 |
| 34 |
1WD-F1817-00-00 |
PIPE 2 Price: $8.49 |
| 35 |
90467-08003-00 |
CLIP, SCISSOR Price: $11.49 |
| 36 |
BS7-F172W-00-00 |
COVER Price: $17.49 |
| 37 |
90111-05003-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 38 |
90560-06244-00 |
SPACER Price: $9.49 |
| 40 |
90160-05810-00 |
SCREW, ROUND TAPPING Price: $2.35 |
| 41 |
BS7-F171E-00-00 |
COVER, SIDE 5 Price: $31.99 |
| 42 |
90338-07180-00 |
PLUG This part replaces 90338-06018-00. Price: $8.49 |
| 43 |
90111-05003-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 44 |
90520-30805-00 |
DAMPER, PLATE Price: $2.45 |
| 45 |
90520-10850-00 |
DAMPER, PLATE Price: $1.05 |
| 46 |
BS7-F171X-00-00 |
COVER, SIDE 6 Price: $10.49 |
| 47 |
90338-07180-00 |
PLUG This part replaces 90338-06018-00. Price: $8.49 |
| 48 |
90111-05003-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 49 |
90520-30805-00 |
DAMPER, PLATE Price: $2.45 |
| 50 |
90520-10850-00 |
DAMPER, PLATE Price: $1.05 |
