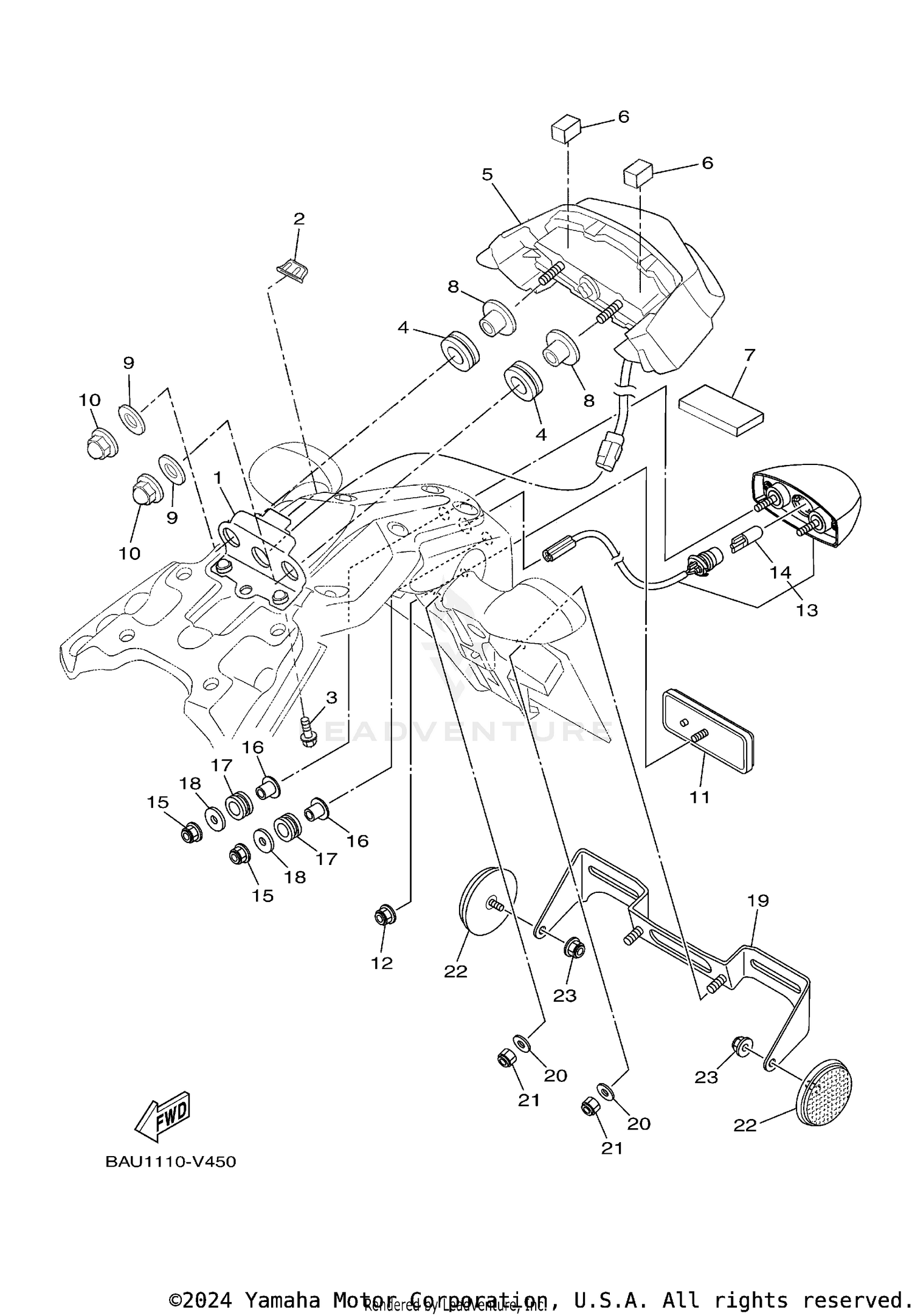

| Ref | Part Number | Description |
|---|
| 1 |
BW3-F117E-00-00 |
BRACKET, TAILLIGHT Price: $50.99 |
| 2 |
2N4-21717-00-00 |
DAMPER Price: $8.49 |
| 3 |
90149-05042-00 |
SCREW Price: $3.75 |
| 4 |
90480-18276-00 |
GROMMET Price: $9.49 |
| 5 |
BW3-H4700-01-00 |
TAILLIGHT ASSY This part replaces BW3-H4700-00-00. Price: $241.99 |
| 6 |
90520-15X03-00 |
DAMPER, PLATE Price: $1.90 |
| 7 |
90520-07X00-00 |
DAMPER, PLATE Price: $16.49 |
| 8 |
90387-06150-00 |
COLLAR Price: $6.49 |
| 9 |
90201-06057-00 |
WASHER, PLATE This part replaces 90201-06023-00. Price: $6.49 |
| 10 |
90176-06008-00 |
NUT, CROWN Price: $2.85 |
| 11 |
3Y6-85130-02-00 |
REAR REFLECTOR ASSY Price: $30.99 |
| 12 |
95607-05200-00 |
NUT, U FLANGE This part replaces 95602-05200-00. Price: $10.49 |
| 13 |
B34-84740-00-00 |
LICENSE LIGHT ASSY Price: $64.99 |
| 14 |
1TP-84347-00-00 |
BULB (12V-5W) Price: $7.49 |
| 15 |
95607-05200-00 |
NUT, U FLANGE This part replaces 95602-05200-00. Price: $10.49 |
| 16 |
90387-05042-00 |
COLLAR Price: $6.49 |
| 17 |
90480-12023-00 |
GROMMET Price: $9.49 |
| 18 |
90201-05556-00 |
WASHER, PLATE This part replaces 90201-054K4-00. Price: $10.49 |
| 19 |
1RC-84751-10-00 |
BRACKET, LICENSE Price: $45.99 |
| 20 |
92990-06600-00 |
WASHER, PLATE This part replaces 92902-06600-00. Price: $2.85 |
| 21 |
95617-06100-00 |
NUT, U This part replaces 95602-06100-00. Price: $2.90 |
| 22 |
449-85131-02-00 |
REFLECTOR, REAR 1 Price: $33.99 |
