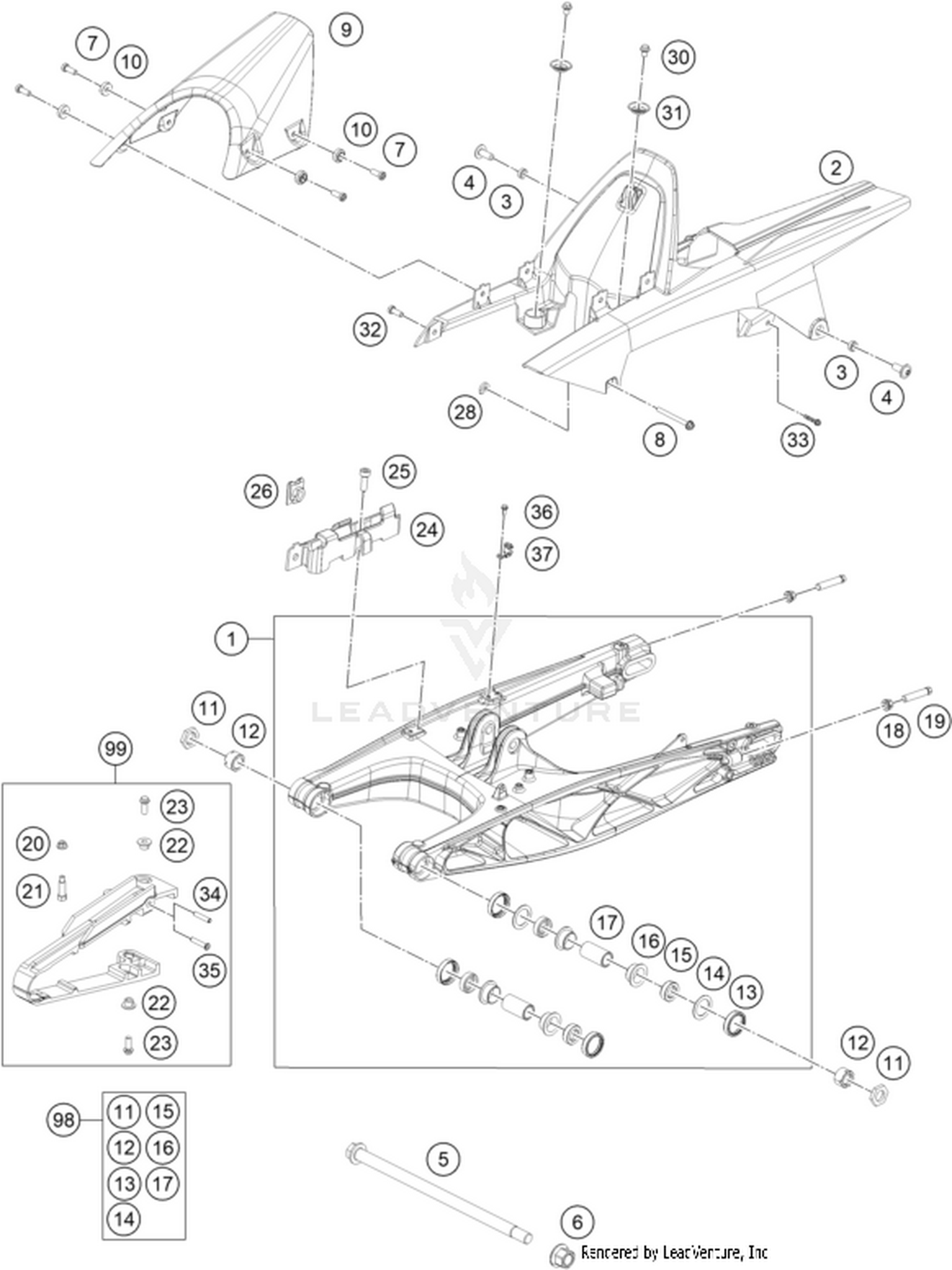

04 SWING ARM
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 28104030044BA | Swing Arm Sub Assy Duke 390 MY Price: Call Us |
| 2 | 9050406000033 | CHAIN COVER BLACK Price: Call Us |
| 3 | 90504060050 | SLEEVE FOR CHAIN COVER Price: Call Us |
| 4 | 90508008001 | AH SCREW M8X20 Price: Call Us |
| 5 | 90104037000 | Shaft swing arm L=299mm Price: Call Us |
| 6 | 90104038000 | FLANGED NUT M14X1.5 Price: Call Us |
| 7 | 90808043001 | BOLT SOCKET M6X1XL Price: Call Us |
| 8 | J025050504 | BOLT FLANGED M5X0.8XL Price: Call Us |
| 9 | 90504050100 | REAR FENDER HD Price: Call Us |
| 10 | 90508046000 | SPECIAL WASHER Price: Call Us |
| 13 | 90104034001 | OIL SEAL RING 25X32X7 Price: Call Us |
| 14 | 90104036000 | Thrust washer 22.2x31.7x1 Price: Call Us |
| 16 | 90104031000 | Igus plain bearing Price: Call Us |
| 19 | 90104040000 | BOLT HEX M10X1.25X50 WS10 Price: Call Us |
| 20 | 90204060001 | HH COLLAR NUT Price: Call Us |
| 23 | J025060169 | HH COLLAR SCREW M6X16 SW8 Price: Call Us |
| 24 | 93813147100 | Clamp brake hose rear Price: Call Us |
| 25 | J912050151 | AH SCREW M5X14 BLACK Price: Call Us |
| 28 | 90504067000 | WASHER CHAIN SLIDING GUARD Price: Call Us |
| 30 | J025060109 | HH-COLLAR SCREW M6X10 SW8 This part replaces J025060083. Price: Call Us |
| 31 | 90104067000 | BUCKET Price: Call Us |
| 32 | 90808043000 | SPECIAL SCREW M6X1X16 Price: Call Us |
| 33 | 90504060001 | SCREW SELF TAP D=6 Price: Call Us |
| 34 | 90104070020 | SLEEVE CHAIN GUARD Price: Call Us |
| 35 | 90904070020 | SLEEVE CHAIN GUARD Price: Call Us |
| 36 | J011050133 | HH COLLAR SCREW M5X13 SW8 Price: Call Us |
| 98 | 90104230010 | SWINGARM REP. KIT 11-17 Price: Call Us |
