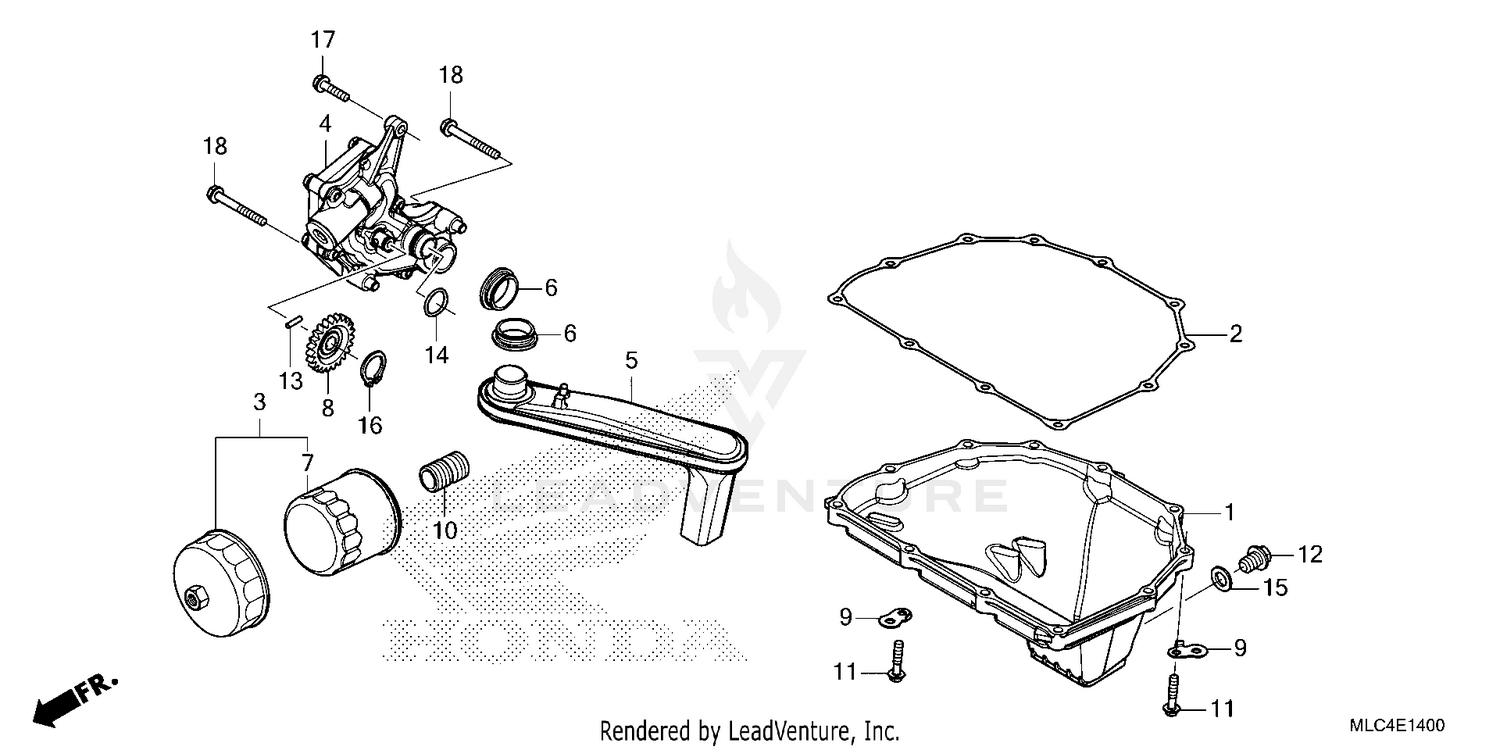

| Ref | Part Number | Description |
|---|
| 1 |
11211-MLB-D00 |
OIL PAN Price: $192.49 |
| 2 |
11395-MLB-D01 |
GASKET, OIL PAN Price: $11.78 |
| 4 |
15100-MLB-D00 |
PUMP ASSY., OIL Price: $199.18 |
| 5 |
15150-MLB-D00 |
STRAINER COMP, OIL Price: $45.91 |
| 6 |
15154-MAT-000 |
GASKET, OIL STRAINER Price: $7.73 |
| 7 |
15410-MFJ-D02 |
FILTER, OIL (WAKO FILTER) Price: $18.63 |
| 8 |
19246-MLB-D00 |
GEAR, PUMP DRIVEN Price: $50.07 |
| 9 |
32157-MJM-D00 |
STAY, HARNESS CLIP Price: $5.25 |
| 10 |
90019-MB0-000 |
BOSS, OIL FILTER (Honda Code 1243435) Price: $10.44 |
| 11 |
90028-GHB-690 |
BOLT, FLANGE (6X28) (S-NSHF) Price: $1.25 |
| 12 |
90131-896-650 |
BOLT, DRAIN PLUG (12X15) This part replaces 90131-883-000. Price: $2.76 |
| 13 |
91101-HA2-300 |
PIN, SOLID (4X20) Price: $1.33 |
| 14 |
91308-K0J-N00 |
O-RING (18.8X2.4) Price: $2.42 |
| 15 |
94109-12000 |
WASHER, DRAIN PLUG (12MM) Price: $1.28 |
| 16 |
94510-11000 |
CIRCLIP (OUTER) (11MM) Price: $0.75 |
| 17 |
95701-06025-00 |
BOLT, FLANGE (6X25) Price: $1.88 |
