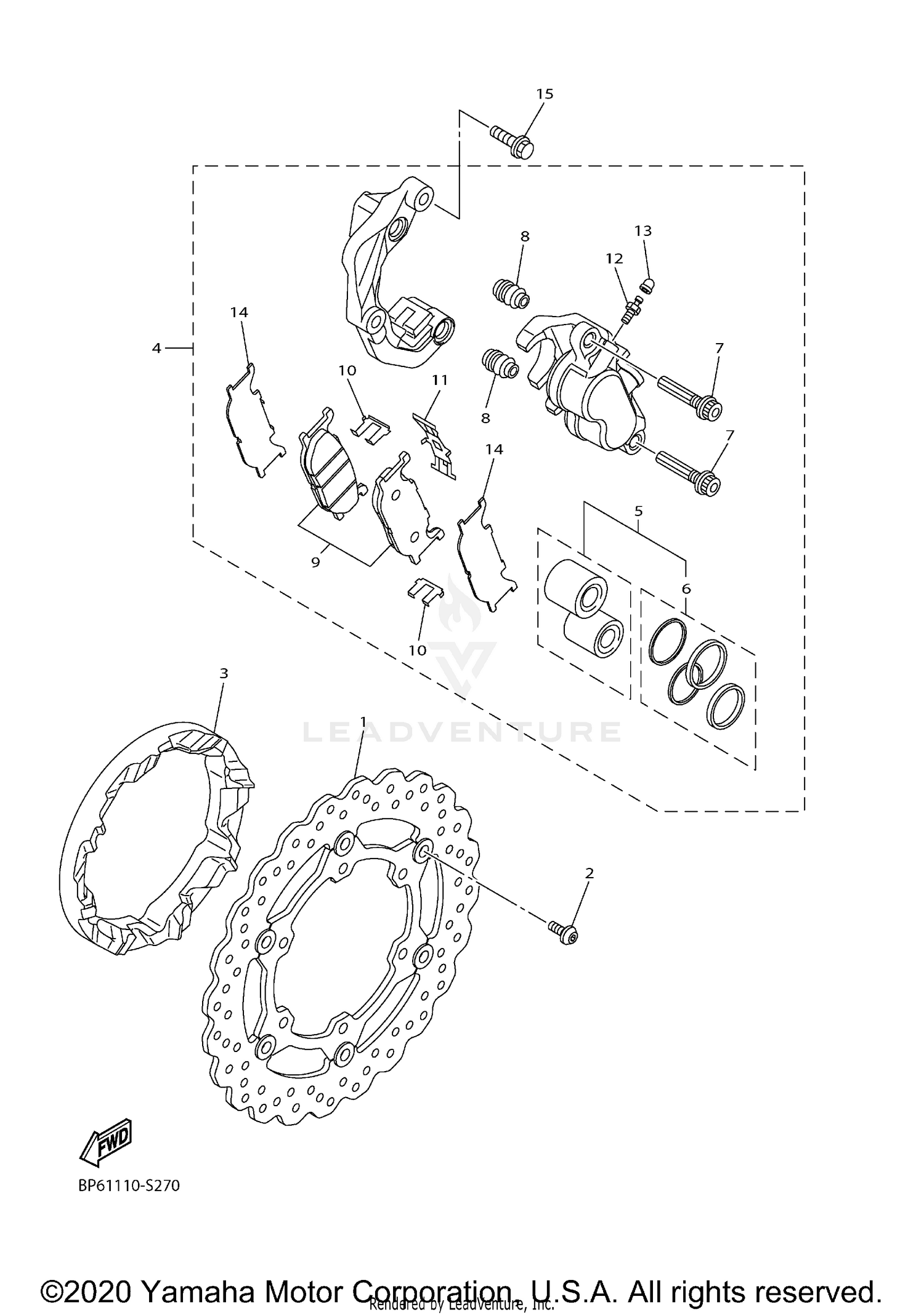

FRONT BRAKE CALIPER
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 1TP-2581T-00-00 | DISC BRAKE ASSY Price: $247.99 |
| 2 | 90111-08053-00 | BOLT,HEX. SOCKET BUT This part replaces 90109-081F0-00. Price: $9.49 |
| 3 | BP6-2514A-00-00 | RING, WHEEL 1 Price: $39.99 |
| 4 | 27D-2580T-00-00 | CALIPER ASSY (LEFT) Price: $440.99 |
| 5 | 3YX-W0057-00-00 | PISTON ASSY, CALIPER Price: $66.99 |
| 6 | 3JB-25803-00-00 | CALIPER SEAL KIT This part replaces 3JB-W0047-00-00. Price: $49.99 |
| 7 | 5JW-25914-10-00 | PIN, SLIDE Price: $24.99 |
| 8 | 4TT-25937-00-00 | BOOT 2 Price: $17.99 |
| 9 | 5S7-25805-00-00 | BRAKE PAD KIT This part replaces 5S7-W0045-00-00. Price: $80.99 |
| 10 | 4BP-25919-00-00 | SUPPORT, PAD Price: $48.99 |
| 11 | 3YX-25929-00-00 | SPRING, ANTI RATTLE Price: $35.99 |
| 12 | 47X-25824-01-00 | SCREW, BLEED Price: $15.49 |
| 13 | 1D7-25825-00-00 | CAP Price: $8.49 |
| 14 | 4DN-25827-00-00 | SHIM, CALIPER Price: $28.99 |
