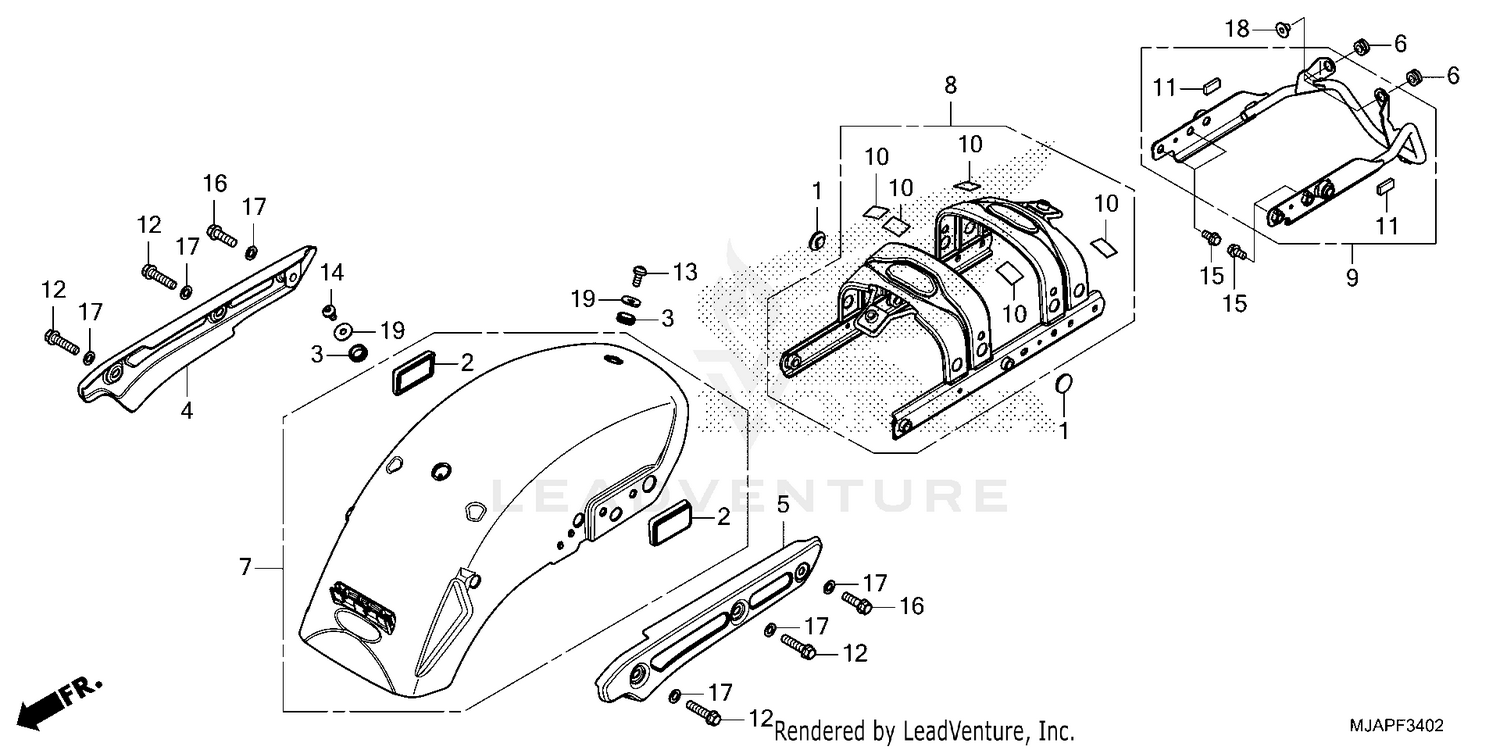

| Ref | Part Number | Description |
|---|
| 1 |
17519-HP1-A00 |
RUBBER, FUEL TANK MOUNTING Price: $4.93 |
| 2 |
33741-MEG-671 |
REFLECTOR, RR. SIDE REFLEX Price: $13.25 |
| 3 |
53111-HE0-000 |
GROMMET B, STEERING Price: $4.85 |
| 4 |
77330-MJA-AT0 |
COVER, RR. Price: $84.51 |
| 5 |
77340-MJA-AT0 |
COVER, RR. Price: $84.51 |
| 6 |
80101-310-000 |
RUBBER, RR. FENDER CUSHION Price: $2.33 |
| 7 |
80110-MJA-AT0ZA |
FENDER COMP *YR368M* Price: $257.16 |
| 7 |
80110-MJA-AT0ZB |
FENDER COMP *NHC47P* Price: $257.16 |
| 8 |
80135-MJA-AT0 |
FRAME ASSY., RR. Price: $215.07 |
| 9 |
80140-MJA-AT0 |
STAY, RR. FENDER A Price: $102.04 |
| 10 |
81214-MT3-300 |
RUBBER, PROTECTOR (L. SIDE ONLY) Price: $2.87 |
| 11 |
83609-KV3-300 |
RUBBER, SIDE COVER Price: $15.87 |
| 12 |
90105-MJA-AT0 |
BOLT (10X42) Price: $4.64 |
| 13 |
90108-K87-A00 |
BOLT, SOCKET SPECIAL (8X18) Price: $0.65 |
| 14 |
90109-K87-A00 |
BOLT, SOCKET SPECIAL (8X12) Price: $0.75 |
| 15 |
90164-GHB-630 |
BOLT, FLANGE (8X16) Price: $2.42 |
| 16 |
90166-GHB-690 |
BOLT (10X32) Price: $2.64 |
| 17 |
90501-MJA-AT0 |
WASHER, PLAIN (10MM) Price: $0.76 |
| 18 |
90502-GG2-000 |
COLLAR, RR. FENDER Price: $7.22 |
