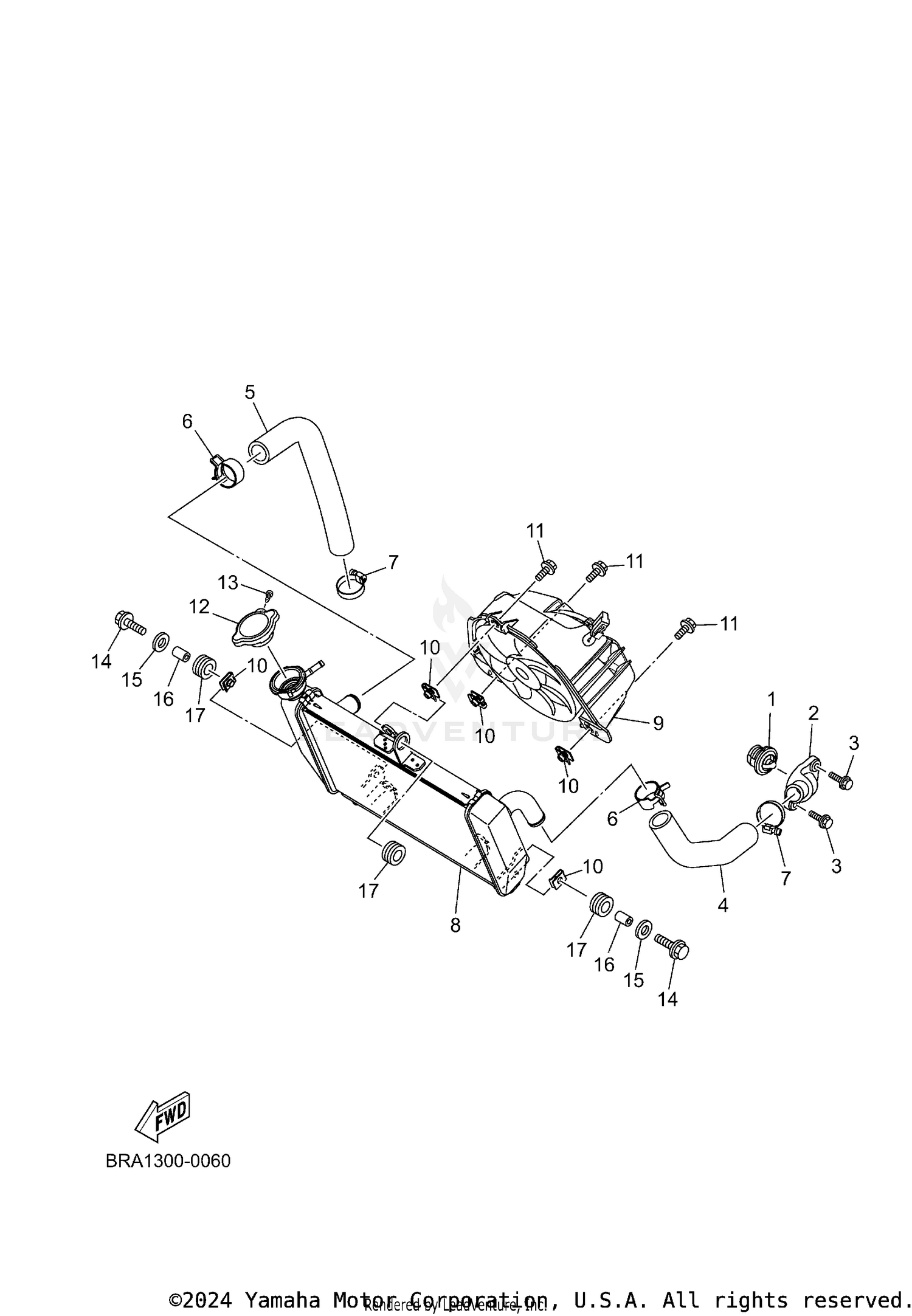

RADIATOR & HOSE
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5P0-12411-01-00 | THERMOSTAT Price: $37.99 |
| 2 | BRA-E2413-00-00 | COVER, THERMOSTAT Price: $15.49 |
| 3 | 95022-06020-00 | BOLT, FLANGE Price: $3.90 |
| 4 | 1WD-E2577-00-00 | HOSE 2 Price: $7.49 |
| 5 | 1WD-E2578-00-00 | HOSE 3 Price: $19.49 |
| 6 | 90467-250A1-00 | CLIP Price: $4.05 |
| 7 | 90450-28001-00 | HOSE CLAMP ASSY Price: $16.49 |
| 8 | 1WD-E2461-00-00 | RADIATOR COMP Price: $134.99 |
| 9 | BRA-E2405-00-00 | BLOWER ASSY Price: $146.99 |
| 10 | 1WD-E2671-00-00 | NUT 1 Price: $2.45 |
| 11 | 5YP-E2675-00-00 | BOLT, BLOWER HOLDING Price: $5.49 |
| 12 | BRA-E2590-00-00 | CONDUCTION ASSY Price: $22.99 |
| 13 | 97702-30508-00 | SCREW, TAPPING Price: $1.98 |
| 14 | 95817-06025-00 | BOLT, FLANGE This part replaces 95827-06025-00. Price: $1.75 |
| 15 | 90201-06072-00 | WASHER, PLATE Price: $10.49 |
| 16 | 90387-06144-00 | COLLAR This part replaces 90387-064W3-00. Price: $6.49 |
