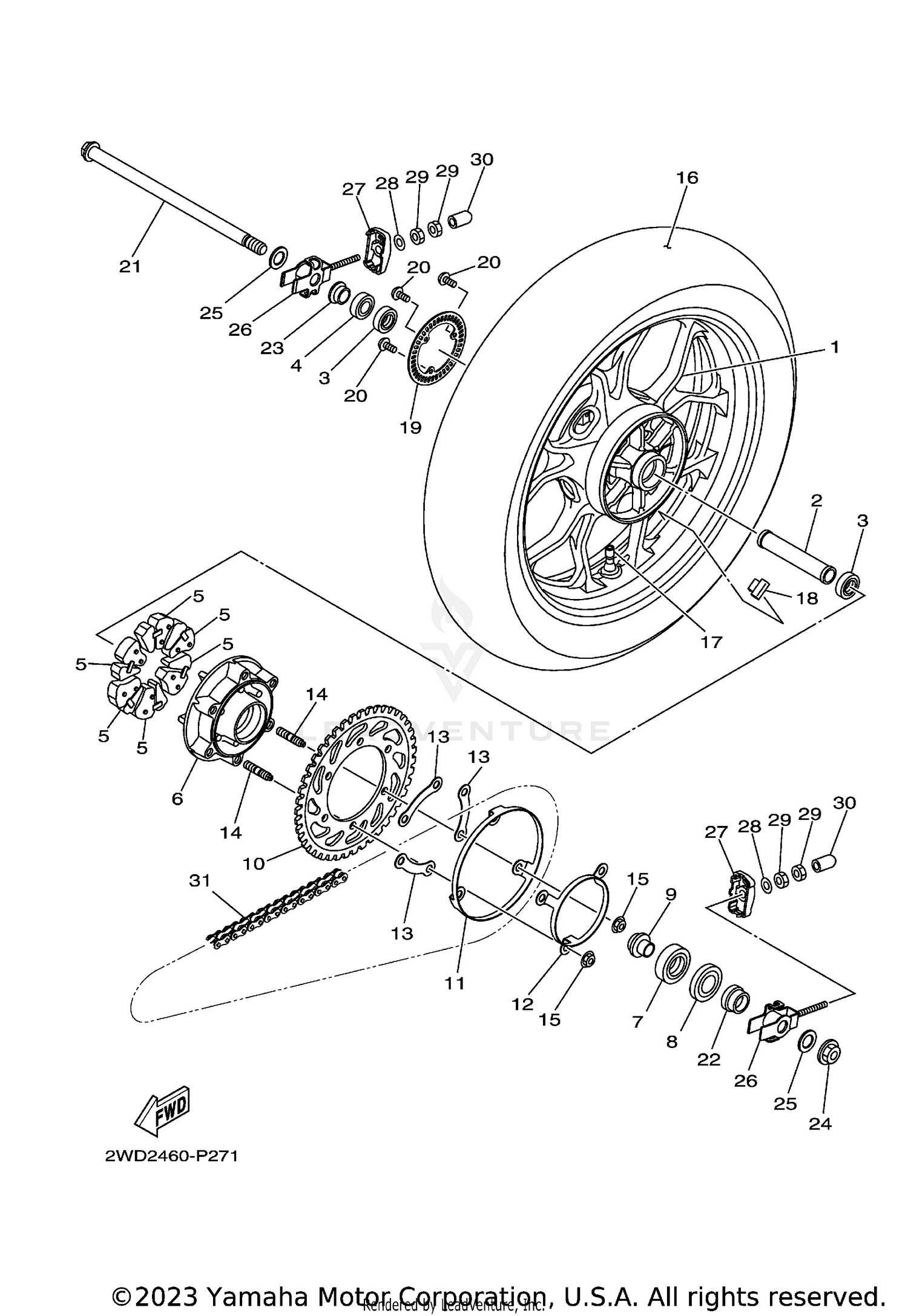

| Ref | Part Number | Description |
|---|
| 2 |
90387-17810-00 |
COLLAR Price: $14.49 |
| 3 |
93306-20314-00 |
BEARING Price: $35.99 |
| 4 |
93106-23002-00 |
OIL SEAL Price: $6.49 |
| 5 |
1WD-F5364-00-00 |
DAMPER Price: $7.49 |
| 7 |
93306-30450-00 |
BEARING Price: $109.99 |
| 8 |
93106-38046-00 |
OIL SEAL Price: $18.49 |
| 9 |
1WD-F5377-00-00 |
COLLAR, WHEEL Price: $8.49 |
| 10 |
1WD-F5443-00-00 |
SPROCKET, DRIVEN (43T) Price: $65.99 |
| 11 |
1WD-F537W-00-00 |
BRACKET 1 Price: $37.99 |
| 12 |
1WD-F537X-00-00 |
BRKT 2 Price: $10.99 |
| 13 |
1WD-F539F-00-00 |
PLATE 1 Price: $2.65 |
| 14 |
90116-10065-00 |
BOLT, STUD Price: $8.49 |
| 15 |
95602-10200-00 |
NUT, S/L FLANGE Price: $2.70 |
| 17 |
93900-00828-00 |
VALVE, RIM Price: $4.95 |
| 19 |
2DP-F517G-00-00 |
ROTOR, SENSOR Price: $12.49 |
| 20 |
90149-05030-00 |
SCREW This part replaces 90149-05029-00. Price: $2.80 |
| 21 |
1WD-25381-00-00 |
AXLE, WHEEL Price: $53.99 |
| 22 |
1WD-F5386-01-00 |
COLLAR, SPROCKET AXLE This part replaces 1WD-F5386-00-00. Price: $8.49 |
| 23 |
1WD-F5383-01-00 |
COLLAR, WHEEL This part replaces 1WD-F5383-00-00. Price: $3.80 |
| 24 |
95602-16200-00 |
NUT, SELF-LOCKING Price: $26.99 |
| 25 |
90201-17809-00 |
WASHER, PLATE Price: $2.35 |
| 26 |
1WD-F5388-00-00 |
PULLER, CHAIN 1 Price: $18.49 |
| 27 |
1WD-F2174-00-00 |
END 1 Price: $37.99 |
| 28 |
92990-08600-00 |
WASHER, PLATE This part replaces 92902-08600-00. Price: $2.70 |
| 29 |
95302-08600-00 |
NUT, HEXAGON Price: $10.49 |
| 30 |
40D-E443G-00-00 |
PIPE, DRAIN 2 Price: $3.65 |
