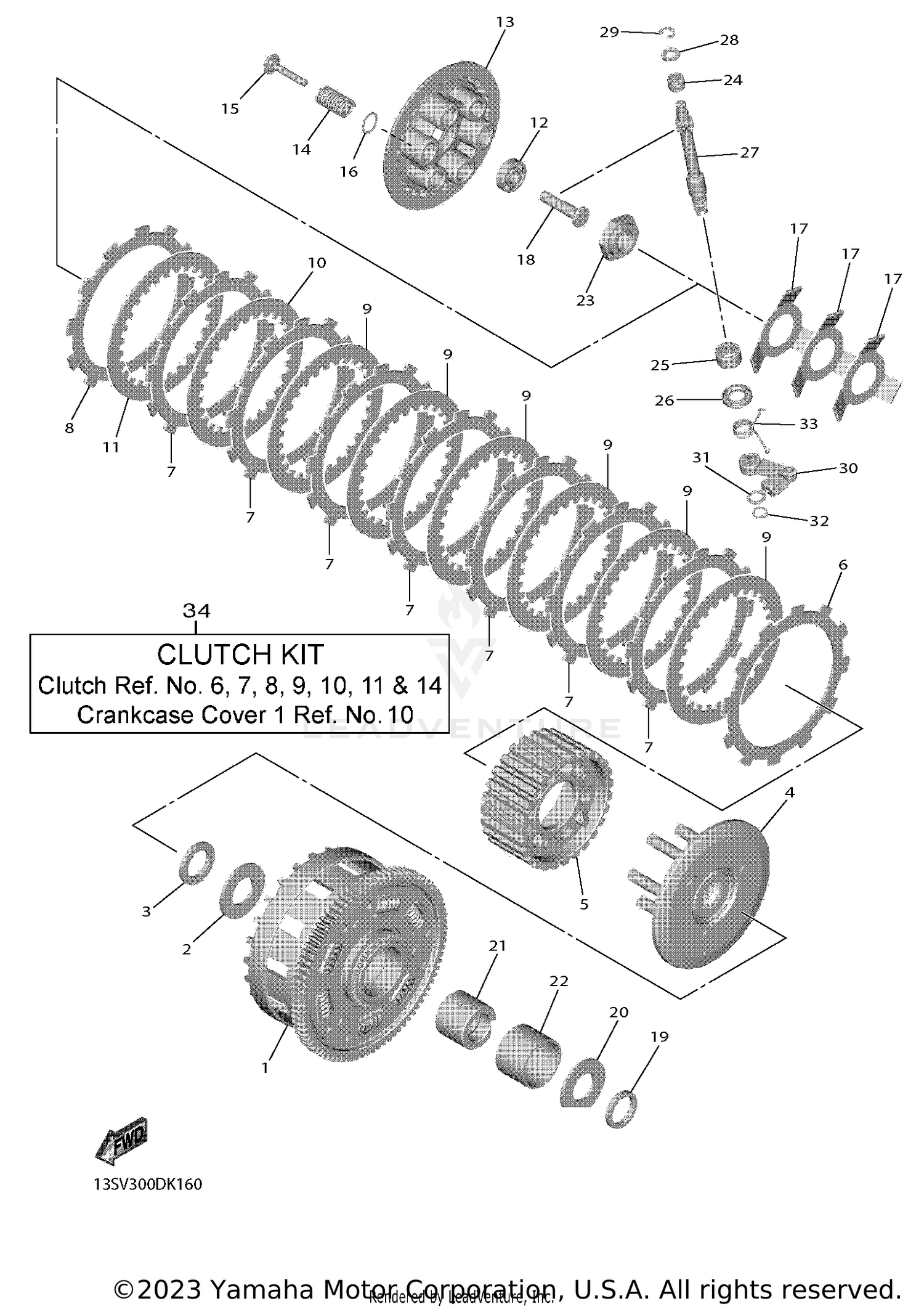

| Ref | Part Number | Description |
|---|
| 1 |
2C0-16150-10-00 |
PRIMARY DRIVEN GEAR COMP. Price: $851.99 |
| 2 |
2C0-16154-00-00 |
PLATE, THRUST 1 Price: $45.99 |
| 3 |
90208-25002-00 |
WASHER, CONICAL SPRING Price: $12.49 |
| 4 |
13S-16360-00-00 |
PRESSURE PLATE ASSY 2 Price: $551.99 |
| 5 |
13S-16370-00-00 |
CLUTCH BOSS ASSY Price: $423.99 |
| 12 |
93306-00105-00 |
BEARING This part replaces 93306-00106-00. Price: $33.99 |
| 13 |
2C0-16351-00-00 |
PLATE, PRESSURE 1 Price: $182.99 |
| 15 |
90159-06024-00 |
SCREW, WITH WASHER Price: $6.49 |
| 16 |
2C0-16384-00-00 |
PLATE, SEAT Price: $8.49 |
| 17 |
2S3-16539-01-00 |
SPRING This part replaces 2S3-16539-00-00. Price: $18.99 |
| 18 |
2C0-16356-00-00 |
ROD, PUSH 1 Price: $36.99 |
| 19 |
2C0-16164-00-00 |
PLATE, THRUST 2 Price: $10.99 |
| 20 |
1AE-16164-00-00 |
PLATE, THRUST 2 Price: $17.99 |
| 21 |
90387-25024-00 |
COLLAR Price: $38.99 |
| 22 |
93310-340N8-00 |
BEARING Price: $50.99 |
| 23 |
2C0-16377-00-00 |
NUT, LOCK Price: $38.99 |
| 24 |
93317-11096-00 |
BEARING Price: $25.99 |
| 25 |
93315-21570-00 |
BEARING Price: $18.49 |
| 26 |
93102-15212-00 |
OIL SEAL Price: $10.49 |
| 27 |
2C0-16382-00-00 |
AXLE, PUSH LEVER Price: $84.99 |
| 28 |
92907-08600-00 |
WASHER, PLATE Price: $3.25 |
| 29 |
99080-07600-00 |
CIRCLIP This part replaces 99001-07600-00. Price: $3.55 |
| 30 |
2C0-16340-00-00 |
PUSH LEVER ASSY Price: $51.99 |
| 31 |
90201-10029-00 |
WASHER, PLATE Price: $8.49 |
| 32 |
99009-10400-00 |
CIRCLIP Price: $5.49 |
| 33 |
90508-16052-00 |
SPRING, TORSION Price: $8.49 |
