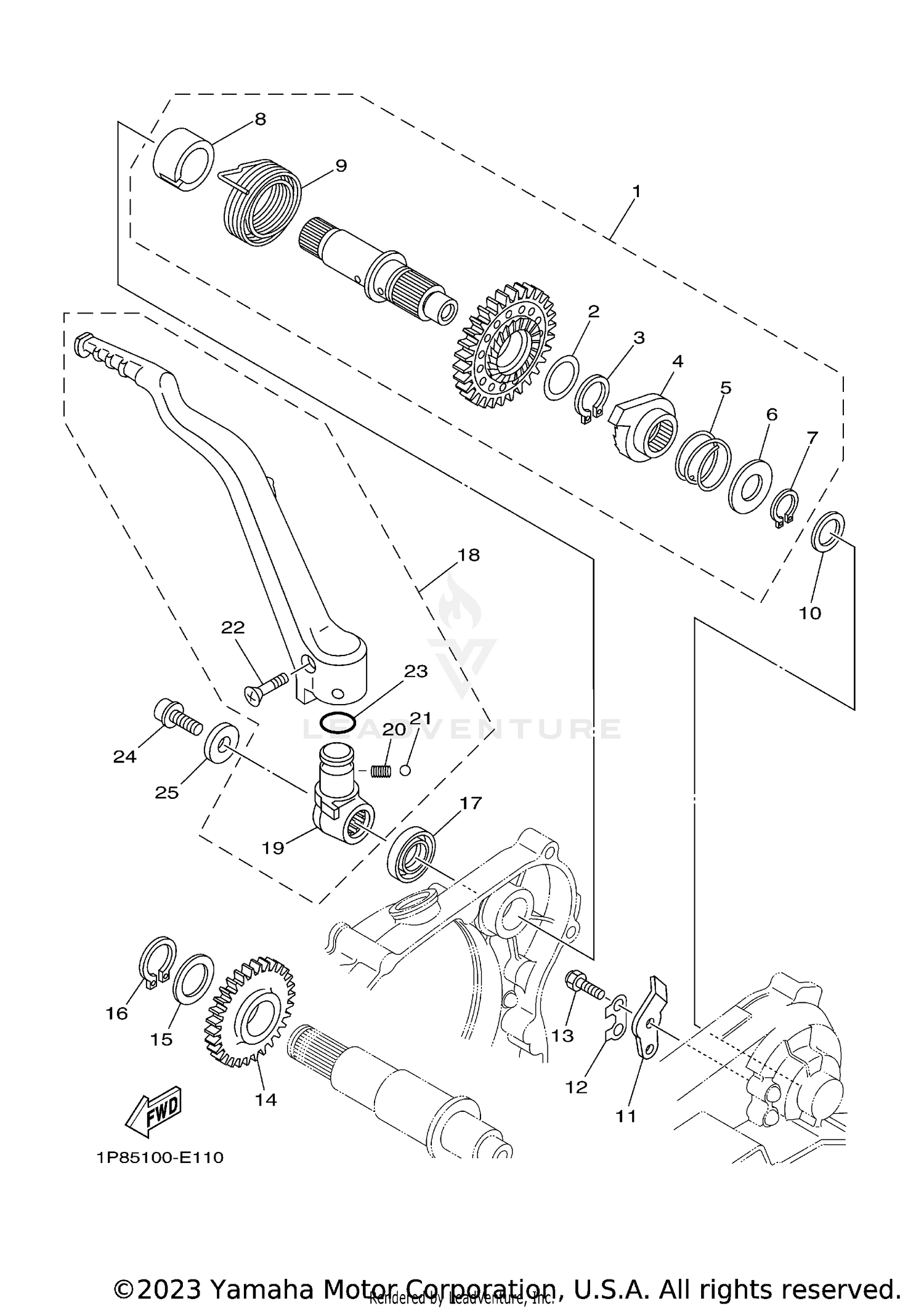

| Ref | Part Number | Description |
|---|
| 1 |
5NX-15601-10-00 |
KICK SHAFT ASSY Price: $319.99 |
| 2 |
90201-20685-00 |
WASHER, PLATE (T=0.5) Price: $8.49 |
| 3 |
93410-20038-00 |
CIRCLIP, S-TYPE Price: $4.05 |
| 4 |
4GY-15671-00-00 |
WHEEL, RATCHET Price: $97.99 |
| 5 |
90501-16016-00 |
SPRING, COMPRESSION Price: $6.49 |
| 6 |
90201-167P7-00 |
WASHER, PLATE Price: $10.49 |
| 7 |
99009-16400-00 |
CIRCLIP Price: $6.49 |
| 8 |
5NL-15664-00-00 |
GUIDE, SPRING Price: $14.49 |
| 9 |
90508-30743-00 |
SPRING, TORSION Price: $20.99 |
| 10 |
90201-162H4-00 |
WASHER, PLATE Price: $10.49 |
| 11 |
2NX-15674-00-00 |
GUIDE, RATCHET WHEEL This part replaces 214-15674-00-00. Price: $10.99 |
| 12 |
214-15686-00-00 |
WASHER, LOCK Price: $8.49 |
| 13 |
97D95-06016-00 |
BOLT, HEXAGON DEEP R This part replaces 97022-06016-00. Price: $2.76 |
| 14 |
5CU-15651-00-00 |
GEAR, KICK IDLE Price: $139.99 |
| 15 |
90201-20276-00 |
WASHER, PLATE (T=1.0) Price: $9.49 |
| 16 |
99009-20400-00 |
CIRCLIP Price: $9.49 |
| 17 |
93102-18278-00 |
OIL SEAL Price: $13.49 |
| 18 |
5NX-15620-20-00 |
KICK CRANK ASSY Price: $235.99 |
| 19 |
5NX-15621-10-00 |
BOSS, KICK CRANK Price: $86.99 |
| 20 |
90501-147A5-00 |
SPRING, COMPRESSION Price: $9.49 |
| 21 |
93507-32031-00 |
BALL This part replaces 93507-32009-00. Price: $5.49 |
| 22 |
90151-06045-00 |
SCREW, COUNTERSUNK Price: $9.49 |
| 23 |
93210-17570-00 |
O-RING Price: $8.49 |
| 24 |
90110-08052-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
