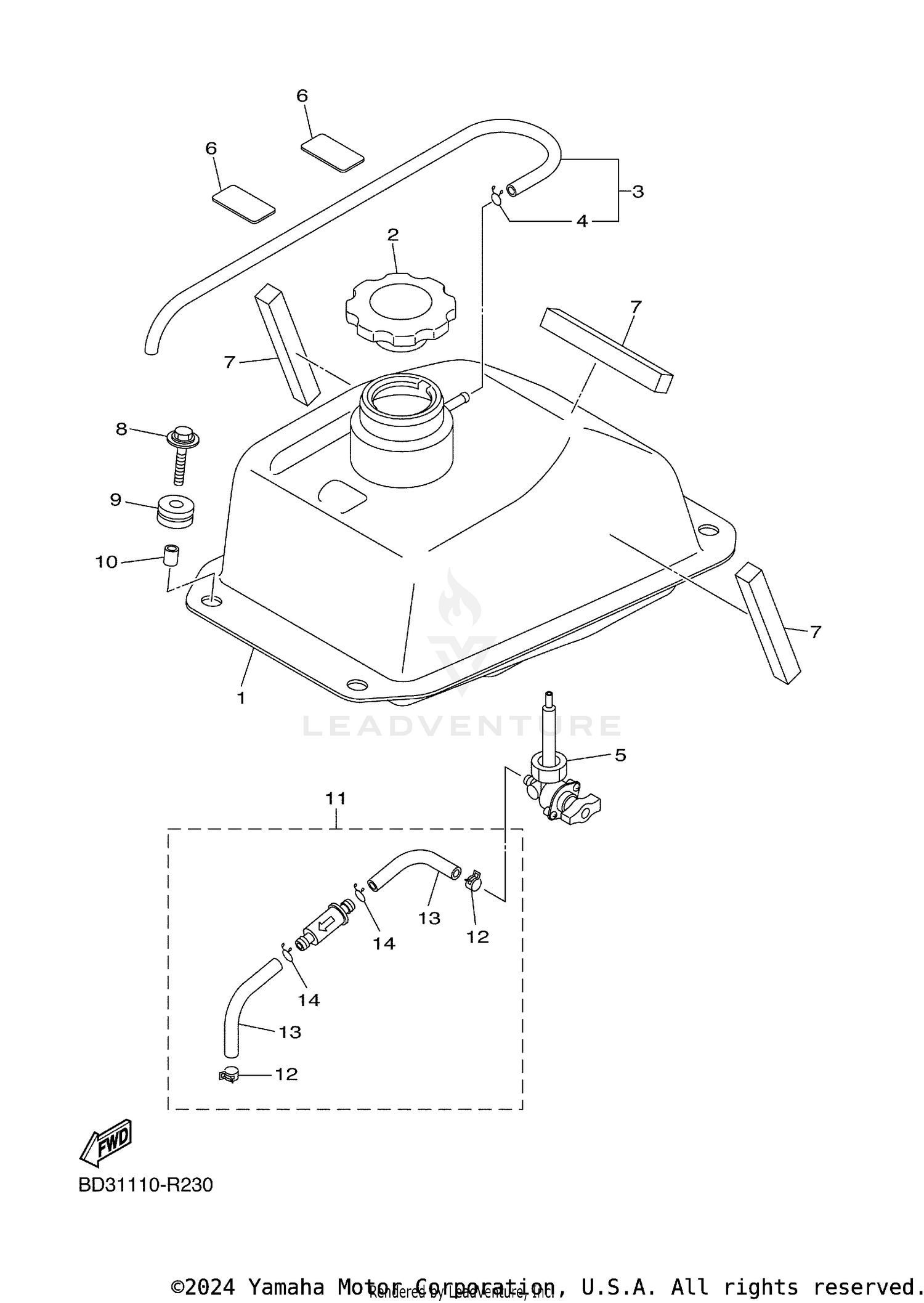

FUEL TANK
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | BD3-F4110-10-00 | FUEL TANK COMP. This part replaces BD3-F4110-00-00. Price: $625.99 |
| 2 | BD3-F4610-10-00 | CAP ASSY Price: $90.99 |
| 3 | BD3-F318J-10-00 | HOSE ASSY Price: $39.99 |
| 4 | BD3-F3447-10-00 | CLIP Price: $2.60 |
| 5 | BD3-F4500-00-00 | FUEL COCK ASSY 1 Price: $158.99 |
| 6 | BD3-F1566-00-00 | TAPE, 1 Price: $6.49 |
| 7 | BD3-F4181-00-00 | DAMPER, LOCATING 1 Price: $10.49 |
| 8 | BD3-F3492-10-00 | BOLT Price: $9.49 |
| 9 | BD3-F4339-00-00 | GROMMET Price: $5.99 |
| 10 | BD3-F412G-10-00 | COLLAR Price: $4.45 |
| 11 | BD3-F4560-10-00 | FILTER ASSY Price: $75.99 |
| 12 | BD3-F4366-00-00 | CLAMP, FUEL PIPE 1 Price: $4.30 |
| 13 | BD3-F4864-00-00 | TUBE Price: $20.99 |
