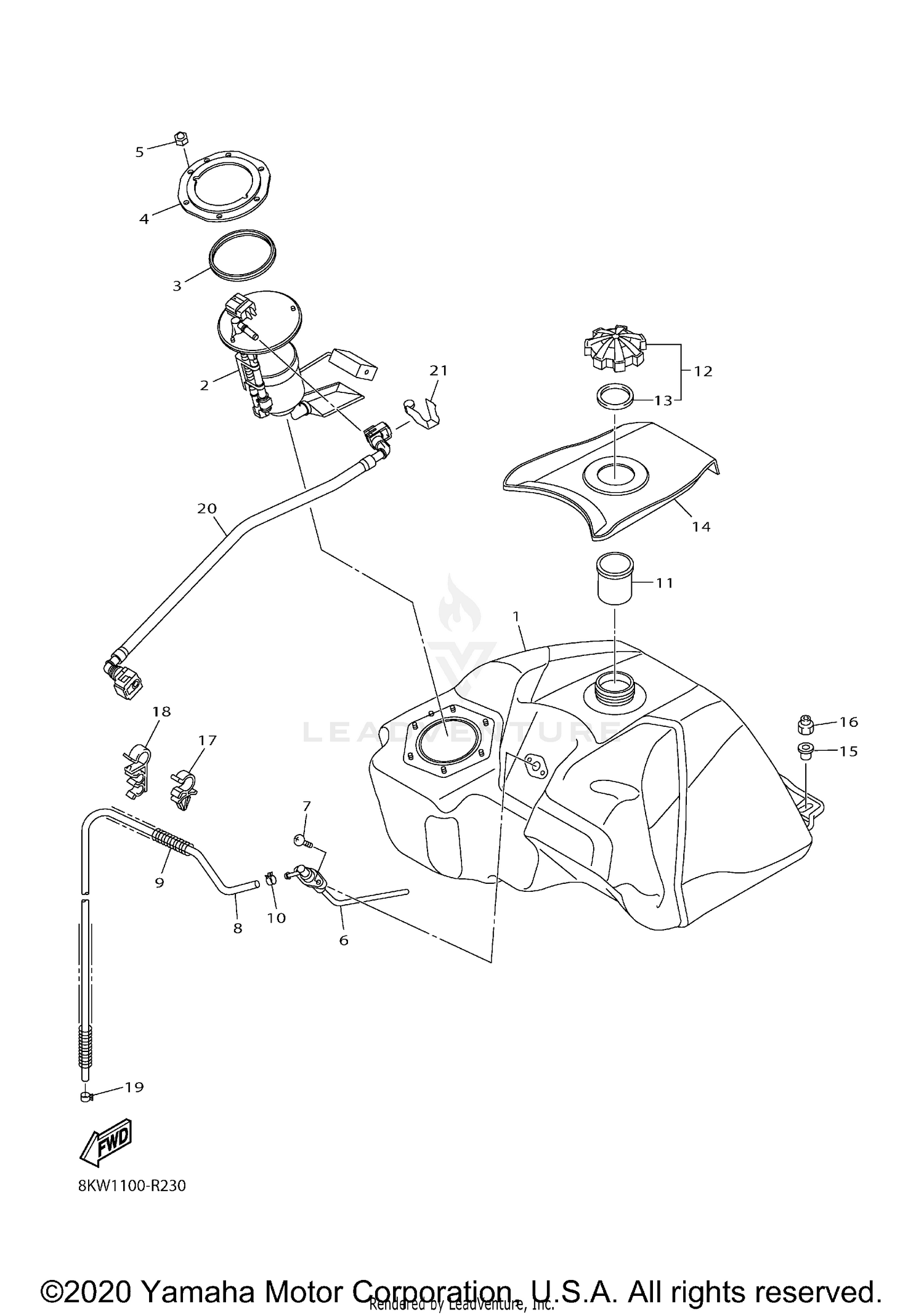

| Ref | Part Number | Description |
|---|
| 1 |
8KW-24111-10-00 |
TANK, FUEL Price: $1,946.99 |
| 2 |
8KW-13907-02-00 |
FUEL PUMP COMP. Price: $683.99 |
| 3 |
8FP-24486-00-00 |
O-RING Price: $20.99 |
| 4 |
3B4-24491-00-00 |
BRACKET, FUEL PUMP Price: $22.99 |
| 5 |
95380-06800-00 |
NUT, CROWN This part replaces 95302-06800-00. Price: $9.49 |
| 6 |
8KW-2418A-00-00 |
BREATHER COMP. Price: $32.99 |
| 7 |
90149-06021-00 |
SCREW This part replaces 90149-06330-00. Price: $9.49 |
| 8 |
91A20-05145-00 |
TUBE, FLEXIBLE VINYL This part replaces 91A20-05130-00. Price: $32.99 |
| 9 |
90501-08668-00 |
SPRING, COMPRESSION Price: $12.49 |
| 10 |
90467-09026-00 |
CLIP Price: $3.55 |
| 11 |
8FG-24114-00-00 |
TUBE, FILLER Price: $32.99 |
| 12 |
8FG-24610-01-00 |
CAP ASSY Price: $44.99 |
| 13 |
8HV-24641-00-00 |
GASKET, CAP 1 Price: $4.50 |
| 14 |
8KW-2414A-00-00 |
COVER, FILLER Price: $59.99 |
| 15 |
90387-093H1-00 |
COLLAR (46Y) Price: $10.49 |
| 16 |
95717-08300-00 |
NUT, FLANGE This part replaces 95702-08300-00. Price: $3.05 |
| 17 |
90464-09129-00 |
CLAMP Price: $2.22 |
| 18 |
90464-16010-00 |
CLAMP Price: $5.49 |
| 19 |
90467-09026-00 |
CLIP Price: $3.55 |
| 20 |
8KW-24311-01-00 |
PIPE, FUEL 1 Price: $97.99 |
