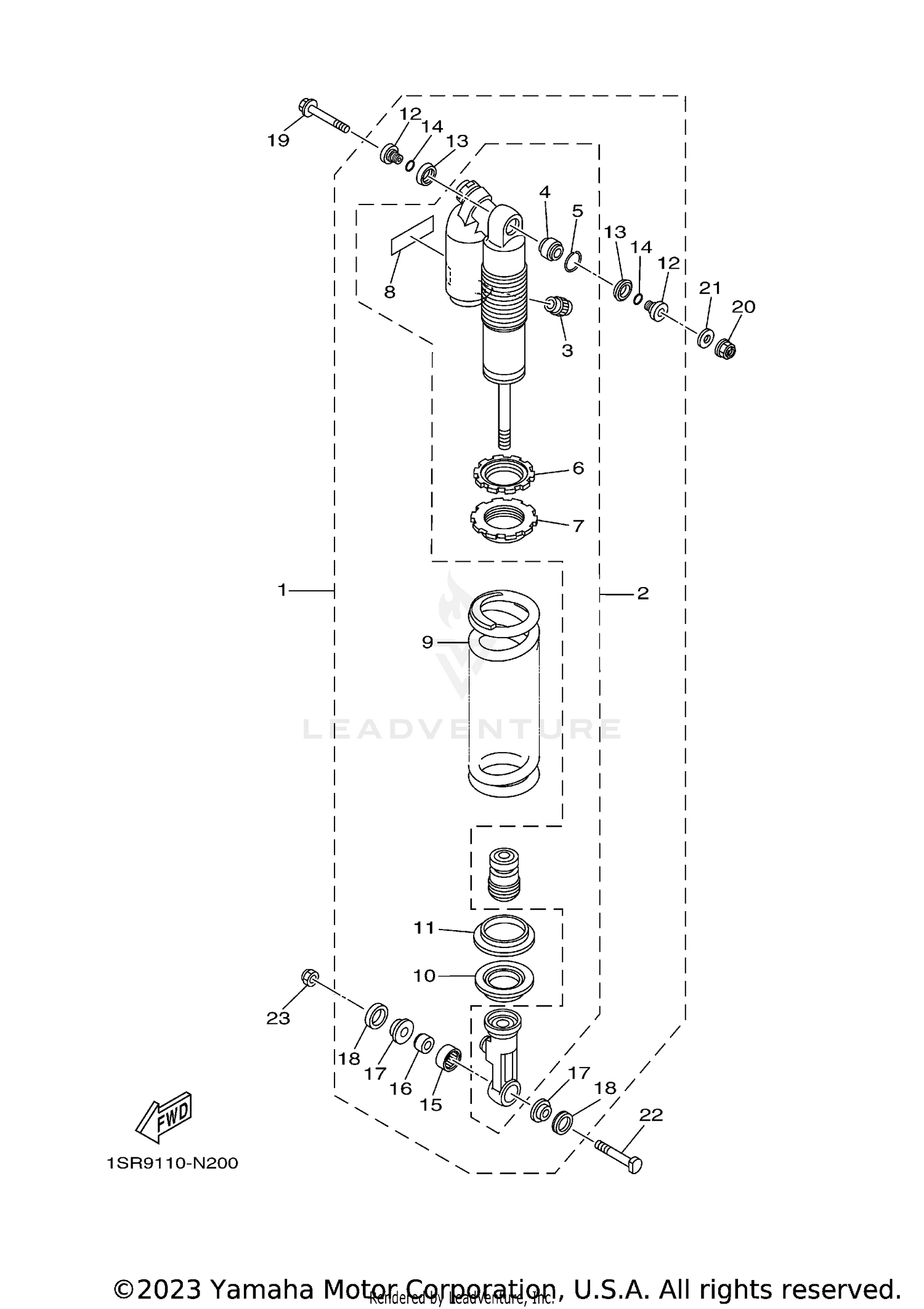

| Ref | Part Number | Description |
|---|
| 1 |
B4X-22200-00-00 |
SHOCK ABSORBER ASS Price: $790.99 |
| 3 |
509-23184-L0-00 |
CAP, AIR VALVE Price: $7.49 |
| 4 |
4JX-22226-00-00 |
BUSH, SHOCK ABSORBER LOWER Price: $56.99 |
| 5 |
5DH-23183-00-00 |
CIRCLIP Price: $5.99 |
| 6 |
3SP-22234-00-00 |
GUIDE, SPRING 3 Price: $47.99 |
| 7 |
3SP-22213-00-00 |
SEAT, SPRING UPPER Price: $50.99 |
| 8 |
4AA-22259-80-00 |
LABEL, WARNING Price: $14.49 |
| 9 |
5UN-22212-30-00 |
SPRING (K=48N/MM) Price: $295.99 |
| 10 |
1C3-22214-50-00 |
GUIDE, SPRING 1 Price: $42.99 |
| 11 |
5MV-22224-00-00 |
GUIDE, SPRING 2 Price: $26.99 |
| 12 |
1C3-22253-50-00 |
COLLAR, DISTANCE Price: $49.99 |
| 13 |
3JE-22475-00-00 |
SEAL, DUST Price: $14.49 |
| 14 |
4EW-22474-00-00 |
SEAL, RING Price: $7.49 |
| 15 |
5UN-22176-00-00 |
BEARING Price: $35.99 |
| 16 |
5MV-22184-00-00 |
BUSH Price: $28.99 |
| 17 |
1C3-22253-L1-00 |
COLLAR, DISTANCE Price: $50.99 |
| 18 |
5NY-22475-00-00 |
SEAL, DUST Price: $14.49 |
| 19 |
5XE-22242-01-00 |
BOLT 2 Price: $7.49 |
| 20 |
95602-10200-00 |
NUT, S/L FLANGE Price: $2.70 |
| 21 |
92990-10200-00 |
WASHER, PLAIN This part replaces 92902-10200-00. Price: $3.72 |
| 22 |
5NY-22241-00-00 |
BOLT 1 Price: $12.99 |
