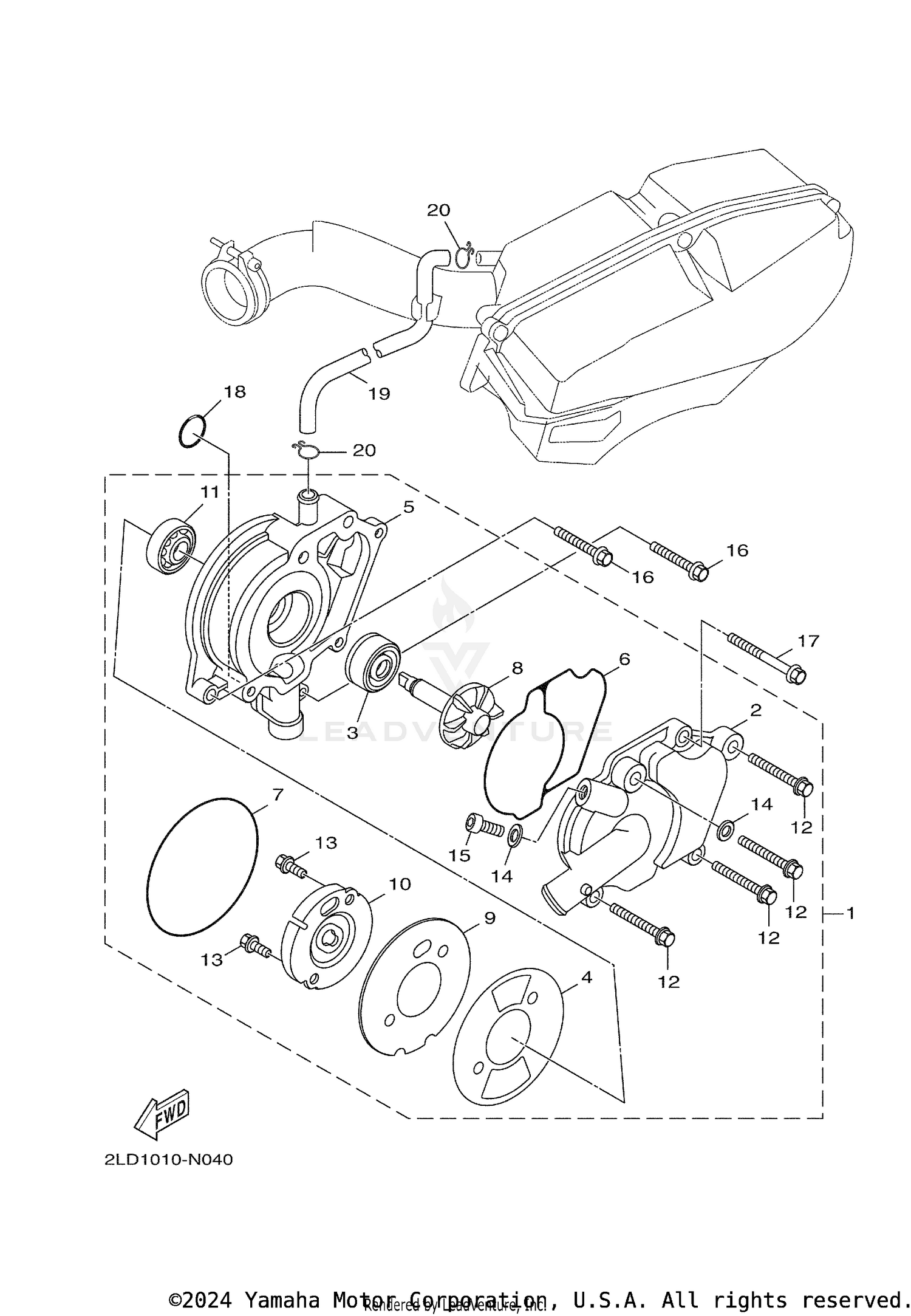

WATER PUMP
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 1DK-E2420-00-00 | WATER PUMP ASSY Price: $122.99 |
| 2 | 1DK-E2422-00-00 | COVER, HOUSING Price: $18.49 |
| 3 | 93103-10011-00 | OIL SEAL Price: $50.99 |
| 4 | 52S-E2428-00-00 | GASKET, HOUSING COVER 2 Price: $3.50 |
| 5 | 52S-E1185-00-00 | COVER, CYLINDER HEAD SIDE 3 Price: $27.99 |
| 6 | 52S-E2449-00-00 | GASKET, WATER PUMP Price: $3.55 |
| 7 | 52S-E2439-00-00 | O-RING Price: $2.35 |
| 8 | 52S-E2450-00-00 | IMPELLER SHAFT ASSY Price: $12.49 |
| 9 | 52S-E1951-00-00 | PLATE Price: $1.25 |
| 10 | 52S-E1952-00-00 | PLATE Price: $4.85 |
| 11 | 93306-000Y1-00 | BEARING Price: $8.49 |
| 12 | 95022-06025-00 | BOLT, FLANGE Price: $1.90 |
| 13 | 95022-06012-00 | BOLT, FLANGE Price: $3.55 |
| 14 | 90430-06014-00 | GASKET Price: $8.60 |
| 15 | 91317-06012-00 | BOLT This part replaces 91312-06012-00. Price: $9.49 |
| 16 | 95022-06025-00 | BOLT, FLANGE Price: $1.90 |
| 17 | 95022-06050-00 | BOLT, FLANGE Price: $1.80 |
| 18 | 93210-19123-00 | O-RING This part replaces 93210-19809-00. Price: $8.99 |
| 19 | 2SW-E1166-00-00 | PIPE, BREATHER 1 Price: $6.99 |
