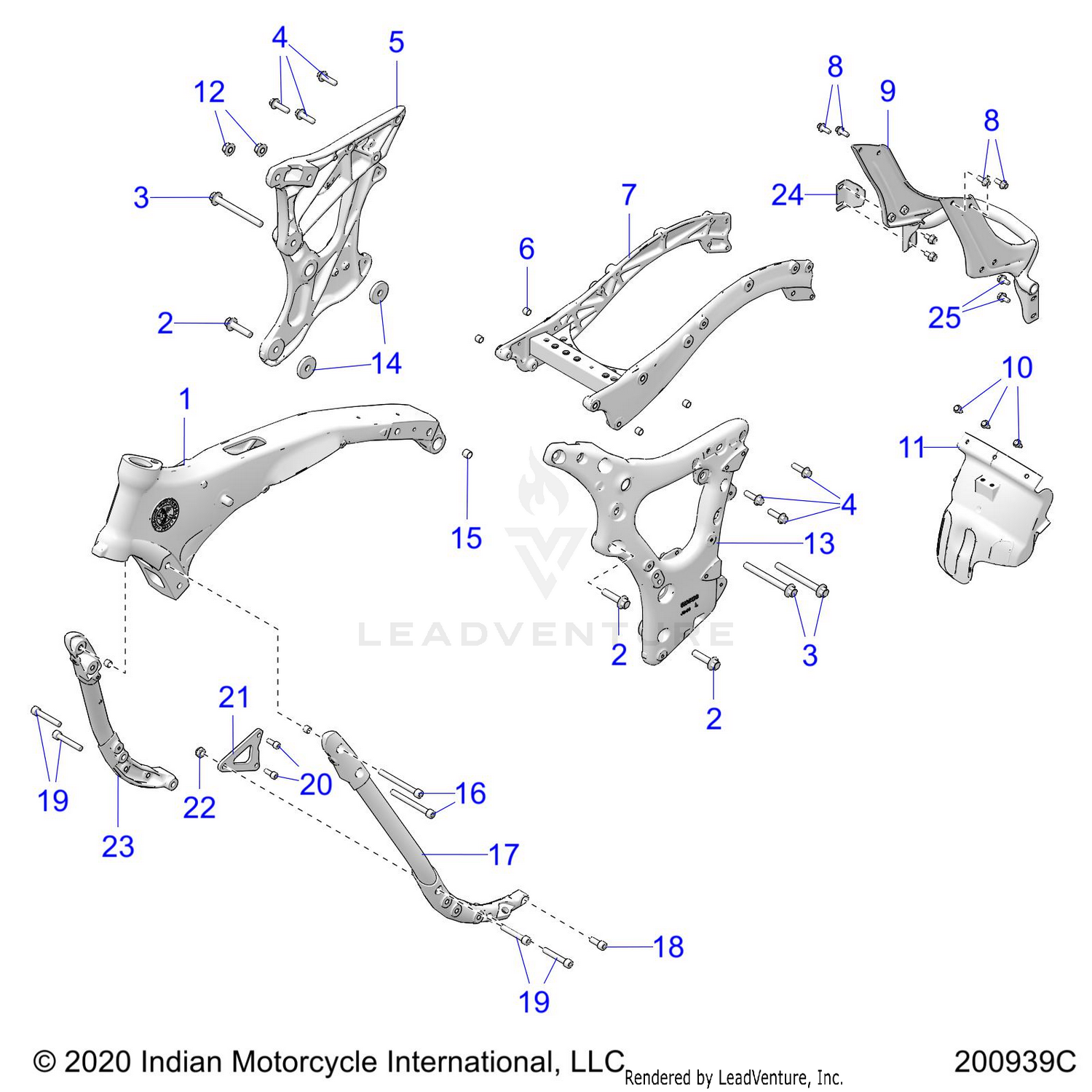

| Ref | Part Number | Description |
|---|
| 1 |
5143586-626 |
MAINFRAME-FRT,TOUR,25DEG,JBLK Price: $1,459.99 |
| 2 |
7519845 |
SCREW-HXFL-M12X1.75X50 10.9 ZPB Price: $8.99 |
| 3 |
7519794H |
SCR-HXFL-M12X1.75X120 Price: $29.99 |
| 4 |
7518334H |
SCR-M10X1.50X35 HX/FL-Y/D Price: $5.99 |
| 5 |
5143588-329 |
CAST-FRAME,MID,RH,E-COAT  Price: $799.99 |
| 6 |
7663008H |
DWL-HOL,M13X10,0600089 Price: $5.99 |
| 7 |
1024782 |
WELD-SUBFRAME,REAR Price: $904.99 |
| 8 |
7517838H |
SCR-HXFL-M8X1.25X20 10.9 ZPB Price: $4.99 |
| 9 |
1024636-329 |
FRAME,REAR,LOWER,E-COAT Price: $269.99 |
| 10 |
7661855H |
RIVET-TUFLOK,.315-.325X.787 Price: $1.49 |
| 11 |
5453702 |
SHIELD, DEBRIS Price: $34.99 |
| 12 |
7547686H |
NUT-HXFL-M12X1.75,CL10,ZB Price: $5.99 |
| 13 |
5143587-329 |
CAST-FRAME,MID,LH,E-COAT Price: $839.99 |
| 14 |
5138436 |
SPACER, FRAME Price: $7.99 |
| 15 |
7662129H |
DOWEL-HOLLOW, M12 Price: $12.99 |
| 16 |
7519793 |
SCR-SHCS-M10X1.5X100 Price: $29.99 |
| 18 |
7519890H |
SCREW-SH-M10X1.5X25 8.8 ZPB Price: $5.99 |
| 19 |
7519843 |
SCREW-SH-M10X1.5X60 8.8 ZPB Price: $8.99 |
| 20 |
7517410H |
SCR-SH-M8X1.25X20 8.8 ZPB D204 Price: $10.99 |
| 21 |
5257184 |
BRACKET, ENGINE Price: $44.99 |
| 22 |
7547658H |
NUT-HEX-M10X1.5 8 ZB3 NYL Price: $1.99 |
| 23 |
1018970-626 |
ASM., TUBE FRAME, RH, BLACK Price: $309.99 |
| 24 |
5258057 |
BRACKET, ANTENNA Price: $13.99 |
