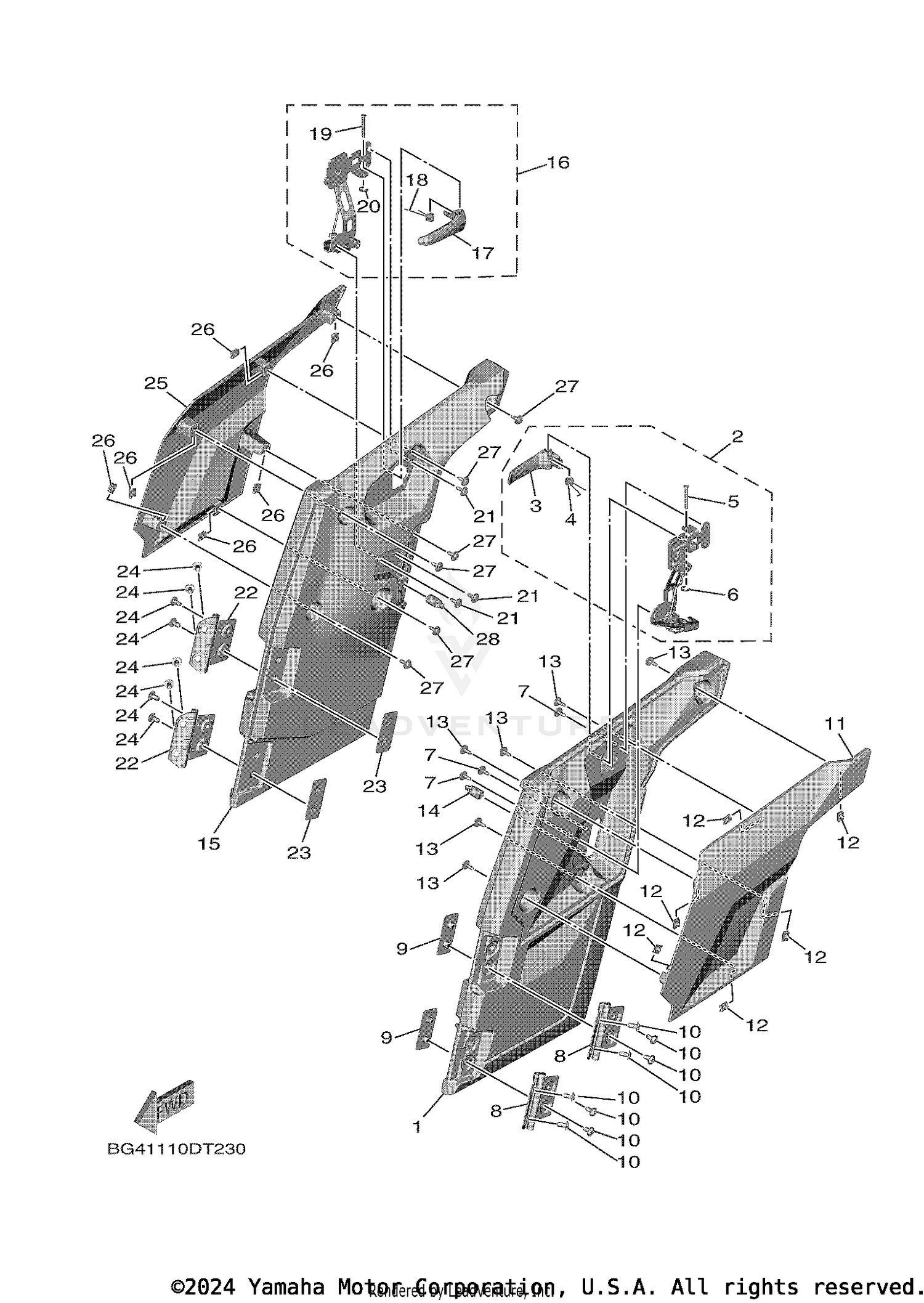

| Ref | Part Number | Description |
|---|
| 1 |
BG4-K8571-00-00 |
PNL, DOOR RR, LH Price: $48.99 |
| 2 |
BG4-K7171-00-00 |
BODY, LATCH 1 Price: $252.99 |
| 3 |
2HC-F17N1-00-00 |
LEVER, LATCH 1 Price: $8.49 |
| 4 |
2HC-F1742-00-00 |
SPRING Price: $3.20 |
| 5 |
90249-05801-00 |
PIN Price: $2.55 |
| 6 |
99080-04600-00 |
CLIP This part replaces 99002-04600-00. Price: $1.99 |
| 7 |
90119-06226-00 |
BOLT, WITH WASHER Price: $2.80 |
| 8 |
BG4-F4779-00-00 |
HINGE, SEAT 2 Price: $28.99 |
| 9 |
BG4-F1736-00-00 |
NUT,PLATE Price: $8.49 |
| 10 |
90149-08805-00 |
SCREW Price: $1.20 |
| 11 |
BG4-K817K-10-00 |
TRIM, SIDE PANEL 3 Price: $24.99 |
| 12 |
90183-060A6-00 |
NUT, SPRING Price: $5.99 |
| 13 |
90119-06226-00 |
BOLT, WITH WASHER Price: $2.80 |
| 14 |
2MB-F8378-00-00 |
PAD Price: $2.70 |
| 15 |
BG4-K8572-00-00 |
PNL. , DOOR RR. RH. Price: $84.99 |
| 16 |
BG4-K7172-00-00 |
BODY, LATCH 2 Price: $249.99 |
| 17 |
2HC-F17N1-00-00 |
LEVER, LATCH 1 Price: $8.49 |
| 18 |
2HC-F1742-00-00 |
SPRING Price: $3.20 |
| 19 |
90249-05801-00 |
PIN Price: $2.55 |
| 20 |
99080-04600-00 |
CLIP This part replaces 99002-04600-00. Price: $1.99 |
| 21 |
90119-06226-00 |
BOLT, WITH WASHER Price: $2.80 |
| 22 |
BG4-F4779-00-00 |
HINGE, SEAT 2 Price: $28.99 |
| 23 |
BG4-F1736-00-00 |
NUT,PLATE Price: $8.49 |
| 24 |
90149-08805-00 |
SCREW Price: $1.20 |
| 25 |
BG4-K817L-10-00 |
TRIM, SIDE PANEL 4 Price: $20.99 |
| 26 |
90183-060A6-00 |
NUT, SPRING Price: $5.99 |
| 27 |
90119-06226-00 |
BOLT, WITH WASHER Price: $2.80 |
