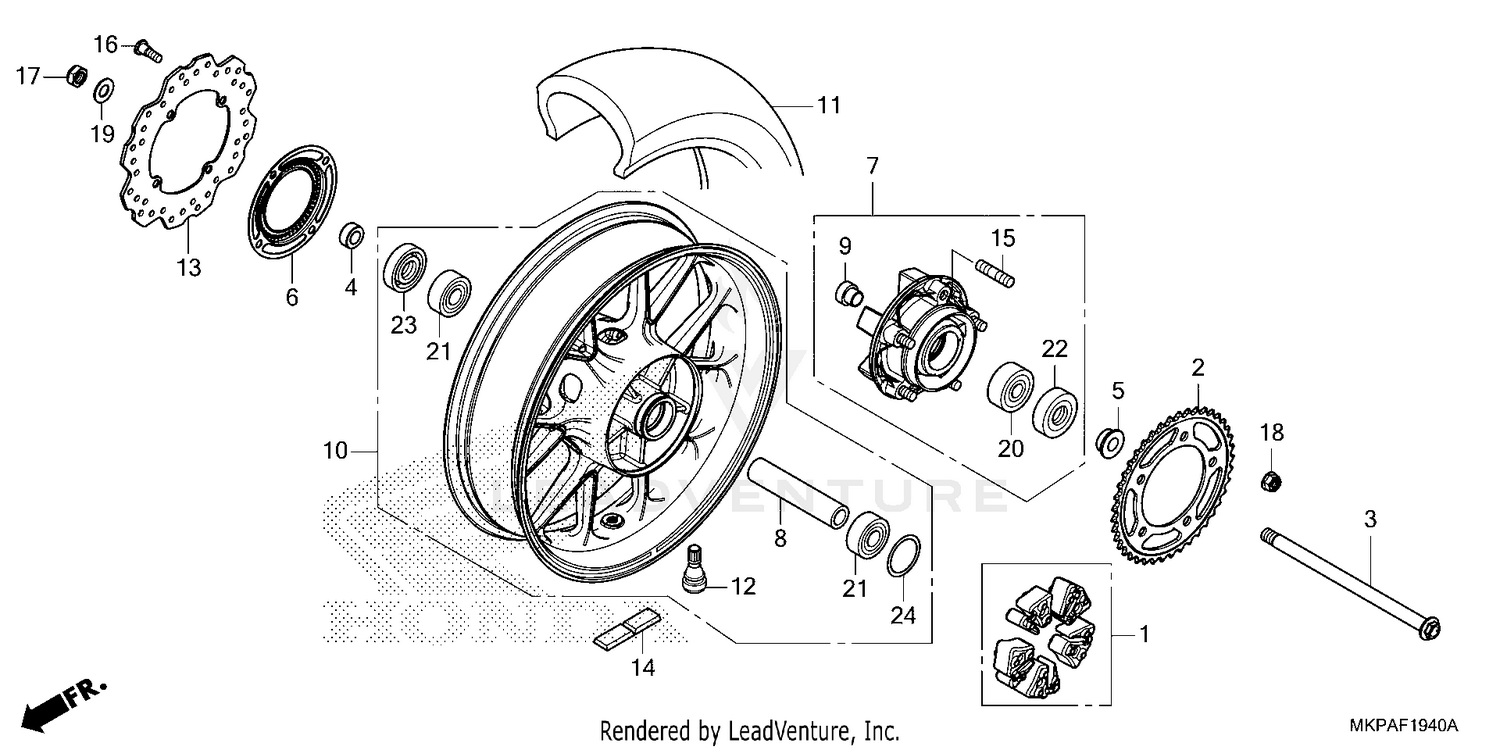

| Ref | Part Number | Description |
|---|
| 1 |
06410-MGS-D30 |
DAMPER SET, WHEEL Price: $69.60 |
| 2 |
41201-MKP-J00 |
SPROCKET, FINAL DRIVEN (41T) Price: $63.71 |
| 3 |
42301-MKP-J00 |
AXLE, RR. WHEEL Price: $12.55 |
| 4 |
42312-MGZ-J00 |
COLLAR, RR. BRAKE SIDE Price: $15.09 |
| 5 |
42313-MKP-J00 |
COLLAR, L. RR. WHEEL SIDE Price: $16.67 |
| 6 |
42515-MKN-D50 |
RING, RR. PULSER Price: $54.65 |
| 7 |
42615-MGZ-D00 |
FLANGE SUB-ASSY., RR. DRIVEN Price: $166.76 |
| 8 |
42620-MGZ-J00 |
COLLAR, RR. AXLE DISTANCE Price: $14.51 |
| 9 |
42625-MGZ-J00 |
COLLAR B, RR. AXLE DISTANCE Price: $9.31 |
| 10 |
42650-MKP-J00ZA |
WHEEL SUB-ASSY., RR. (TYPE3) (WL) Price: $449.96 |
| 10 |
42650-MKP-J00ZB |
WHEEL SUB-ASSY., RR. (TYPE2) (WL) Price: $470.27 |
| 11 |
42711-MKP-J05 |
TIRE, RR. (160/60ZR17 M/C 69W) (DUNLOP) Price: $242.82 |
| 12 |
42753-GM9-743 |
VALVE, RIM (IRC) Price: $10.51 |
| 13 |
43251-MGZ-J02 |
DISK, RR. BRAKE (SUNSTAR) Price: $101.61 |
| 14 |
44721-MGH-H21 |
WEIGHT, BALANCE (10G) Price: $4.05 |
| 14 |
44722-MGH-H21 |
WEIGHT, BALANCE (15G) Price: $4.85 |
| 14 |
44723-MGH-H21 |
WEIGHT, BALANCE (20G) Price: $4.63 |
| 15 |
90102-MAS-000 |
BOLT 2, STUD (12X25) Price: $5.04 |
| 16 |
90105-MGS-D30 |
BOLT, DISK (8X25) Price: $3.55 |
| 17 |
90305-GW2-711 |
NUT, U (16MM) Price: $19.84 |
| 18 |
90306-KGH-901 |
NUT, U (12MM) (FUJI SEIMITSU) Price: $2.93 |
| 19 |
90501-K87-A00 |
WASHER, PLAIN (16.4X32X2) Price: $1.71 |
| 20 |
91053-MM5-004 |
BEARING, RADIAL BALL (6304UU) Price: $38.95 |
| 21 |
91054-MT6-831 |
BEARING, RADIAL BALL (6303UU) (NSK) Price: $46.44 |
| 22 |
91253-442-003 |
DUST SEAL (30X52X7) Price: $16.91 |
| 23 |
91253-443-762 |
DUST SEAL (30X47X8) (NOK) This part replaces 91253-443-761. Price: $14.69 |
