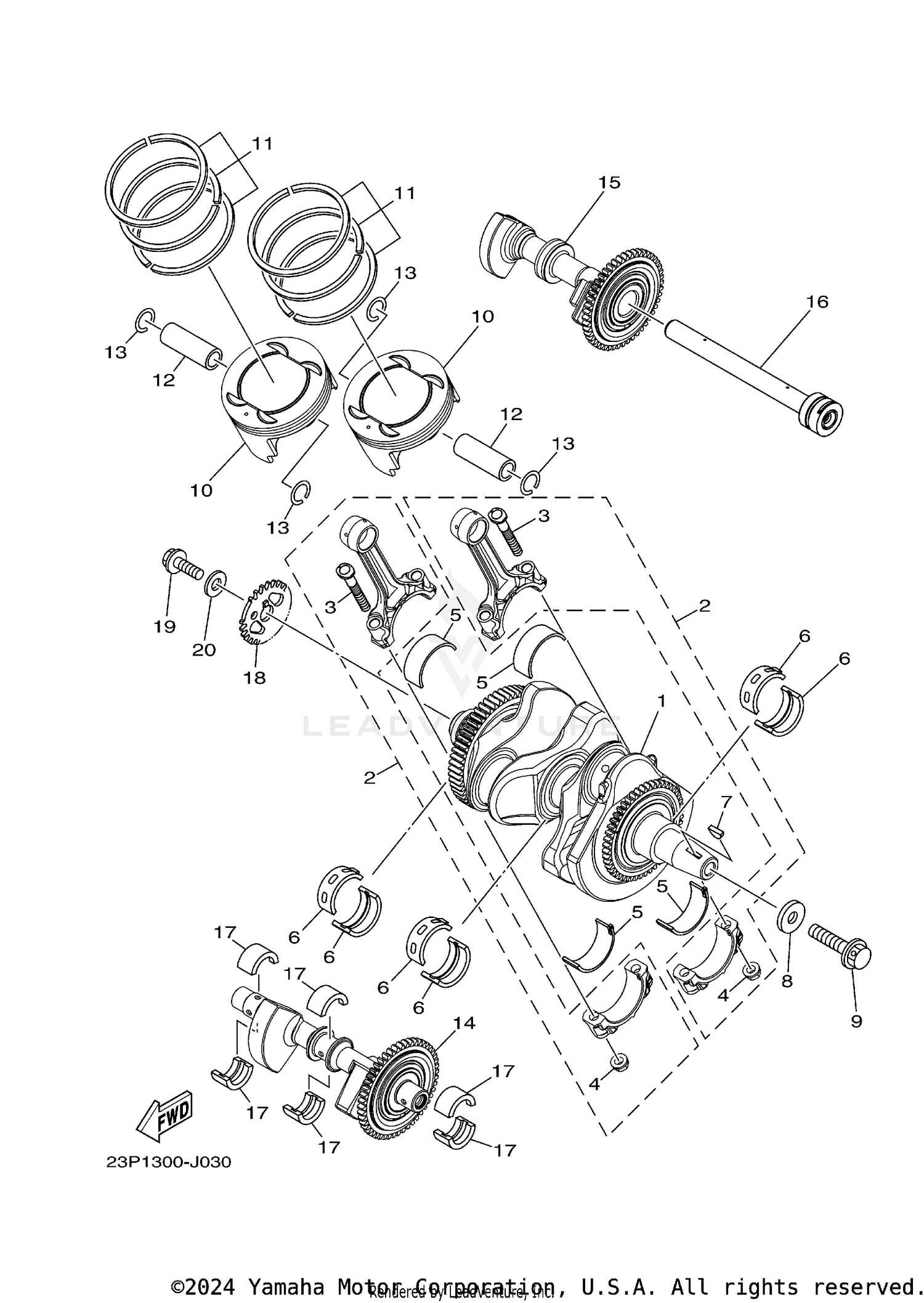

CRANKSHAFT & PISTON
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 23P-11400-00-00 | CRANKSHAFT ASSY Price: $1,048.99 |
| 2 | 23P-11650-00-00 | CONNECTING ROD ASSY Price: $208.99 |
| 3 | 23P-11654-00-00 | BOLT, CONNECTING ROD Price: $5.49 |
| 4 | 90179-09379-00 | NUT Price: $9.49 |
| 7 | 90280-05029-00 | KEY, WOODRUFF Price: $12.49 |
| 8 | 90201-12191-00 | WASHER, PLATE This part replaces 90201-121H0-00. Price: $8.49 |
| 9 | 90105-12005-00 | BOLT, FLANGE Price: $25.99 |
| 10 | 2BS-11631-00-00 | PISTON (STD) Price: $143.99 |
| 11 | 2BS-11603-01-00 | PISTON RING SET (STD) Price: $42.99 |
| 12 | 4WM-11633-00-00 | PIN, PISTON Price: $44.99 |
| 13 | 93450-23167-00 | CIRCLIP Price: $9.49 |
| 14 | 23P-11500-01-00 | BALANCER ASSY Price: $489.99 |
| 15 | 23P-11510-01-00 | BALANCER ASSY, 2 Price: $387.99 |
| 16 | 23P-11583-00-00 | SHAFT, BALANCER 1 Price: $111.99 |
| 18 | 23P-81673-00-00 | ROTOR Price: $37.99 |
| 19 | 90105-10153-00 | BOLT, FLANGE Price: $6.49 |
