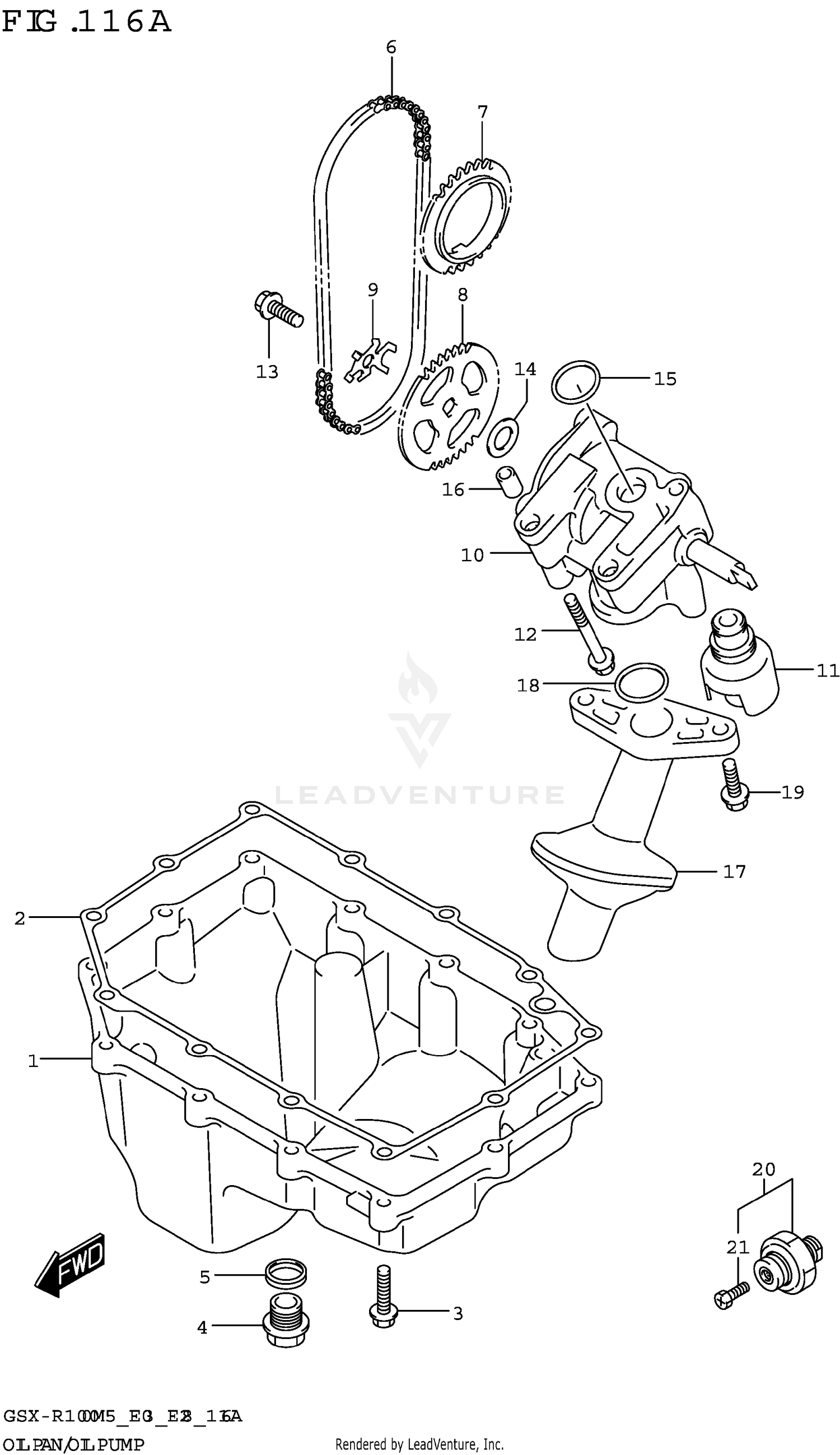

OIL PAN/OIL PUMP
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11511-17K00 | PAN,OIL Price: $204.76 |
| 3 | 01547-0625A | BOLT Price: $2.45 |
| 6 | 16310-47H00 | CHAIN,OIL PUMP DRIVE Price: $39.33 |
| 9 | 16332-17K00 | RETAINER,OIL PUMP SPRKT BOLT Price: $8.05 |
| 10 | 16400-17K00 | PUMP ASSY,ENG OIL Price: $221.95 |
| 11 | 16440-17K00 | VALVE ASSY,OIL RELIEF Price: $80.52 |
| 12 | 09103-06206 | BOLT (6X50) Price: $5.01 |
| 13 | 09103-06523 | BOLT Price: $5.31 |
| 14 | 09181-12158 | SHIM (12X20X0.5) Price: $2.72 |
| 15 | 09280-15007 | O RING (D:2.4,ID:15.8) Price: $2.07 |
| 16 | 04211-09149 | PIN (8.5X18X2.3) Price: $1.99 |
| 17 | 16520-17K00 | STRAINER,ENG OIL Price: $32.11 |
| 18 | 09280-19008 | O RING (D:2.62,ID:20.3) Price: $6.70 |
| 19 | 01550-0620A | BOLT (6X20) Price: $2.37 |
| 20 | 37820-33D11 | SWITCH ASSY,OIL PRESSURE Price: $26.40 |
