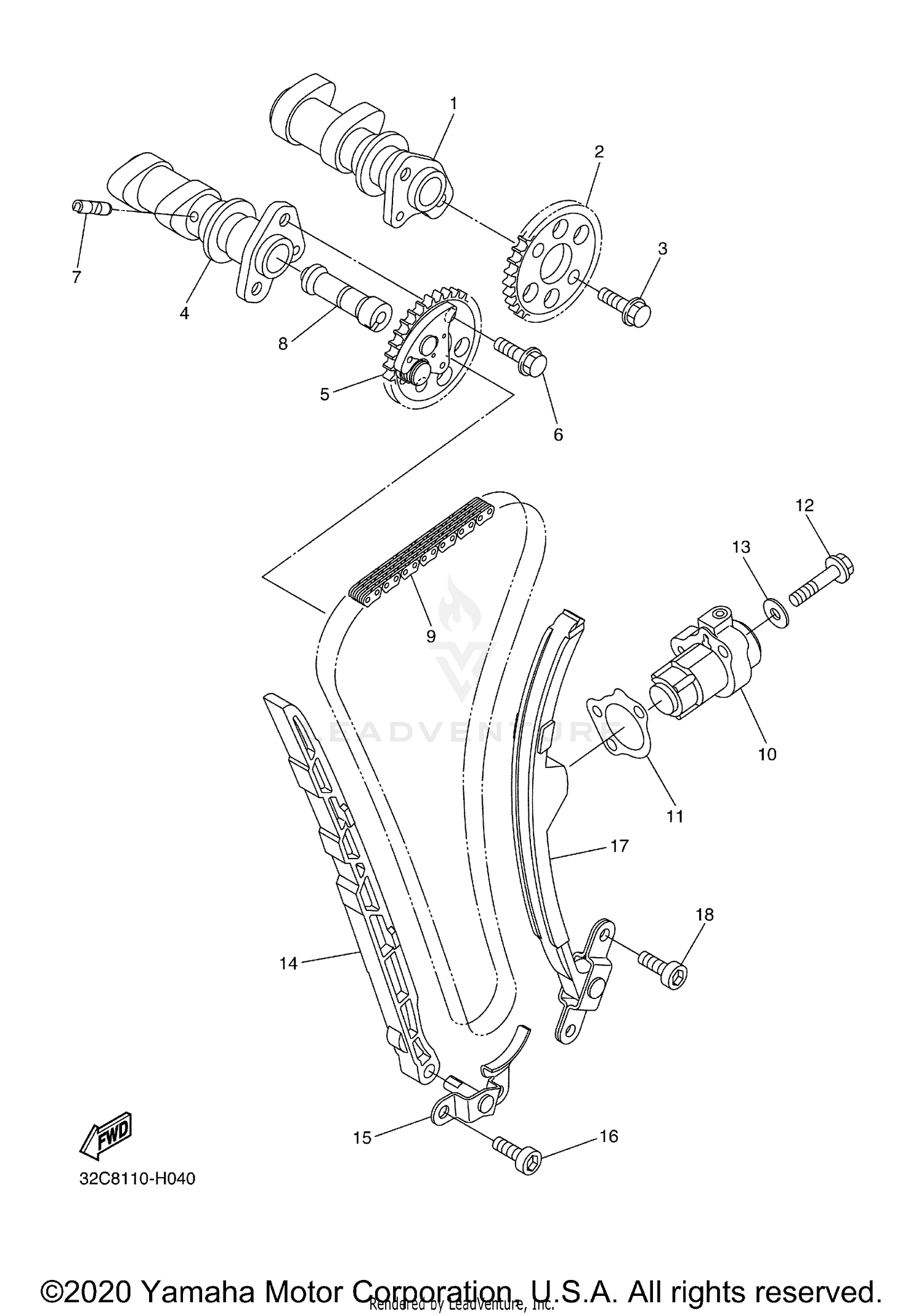

| Ref | Part Number | Description |
|---|
| 1 |
3D7-12171-00-00 |
CAMSHAFT 1 Price: $263.99 |
| 2 |
3D7-12176-00-00 |
SPROCKET, CAM CHAIN Price: $72.99 |
| 3 |
90105-07004-00 |
BOLT, FLANGE Price: $6.49 |
| 4 |
3D7-12181-00-00 |
CAMSHAFT 2 Price: $204.99 |
| 5 |
3D7-12280-00-00 |
DECOMPRESSION ASSY Price: $153.99 |
| 6 |
90105-07004-00 |
BOLT, FLANGE Price: $6.49 |
| 7 |
3D7-12284-01-00 |
PIN, DECOMPRESSION LEVER Price: $17.49 |
| 8 |
3D7-12290-00-00 |
LEVER, DECOMPRESSION SPRING Price: $35.99 |
| 9 |
94591-57118-00 |
CHAIN (98XRH2010-118M) Price: $39.99 |
| 10 |
3D7-12210-12-00 |
TENSIONER ASSY, CAM CHAIN This part replaces 3D7-12210-11-00. Price: $221.99 |
| 11 |
15B-12213-00-00 |
GASKET, TENSIONER CASE Price: $11.99 |
| 12 |
95022-06025-00 |
BOLT, FLANGE Price: $1.90 |
| 13 |
90430-06014-00 |
GASKET Price: $8.60 |
| 14 |
3D7-12231-00-00 |
GUIDE, STOPPER 1 Price: $31.99 |
| 15 |
3D7-12233-00-00 |
PLATE, GUIDE STOPPER 1 Price: $24.99 |
| 16 |
91312-06014-00 |
BOLT This part replaces 90110-06168-00. Price: $5.49 |
| 17 |
3D7-12241-00-00 |
GUIDE, STOPPER 2 Price: $78.99 |
