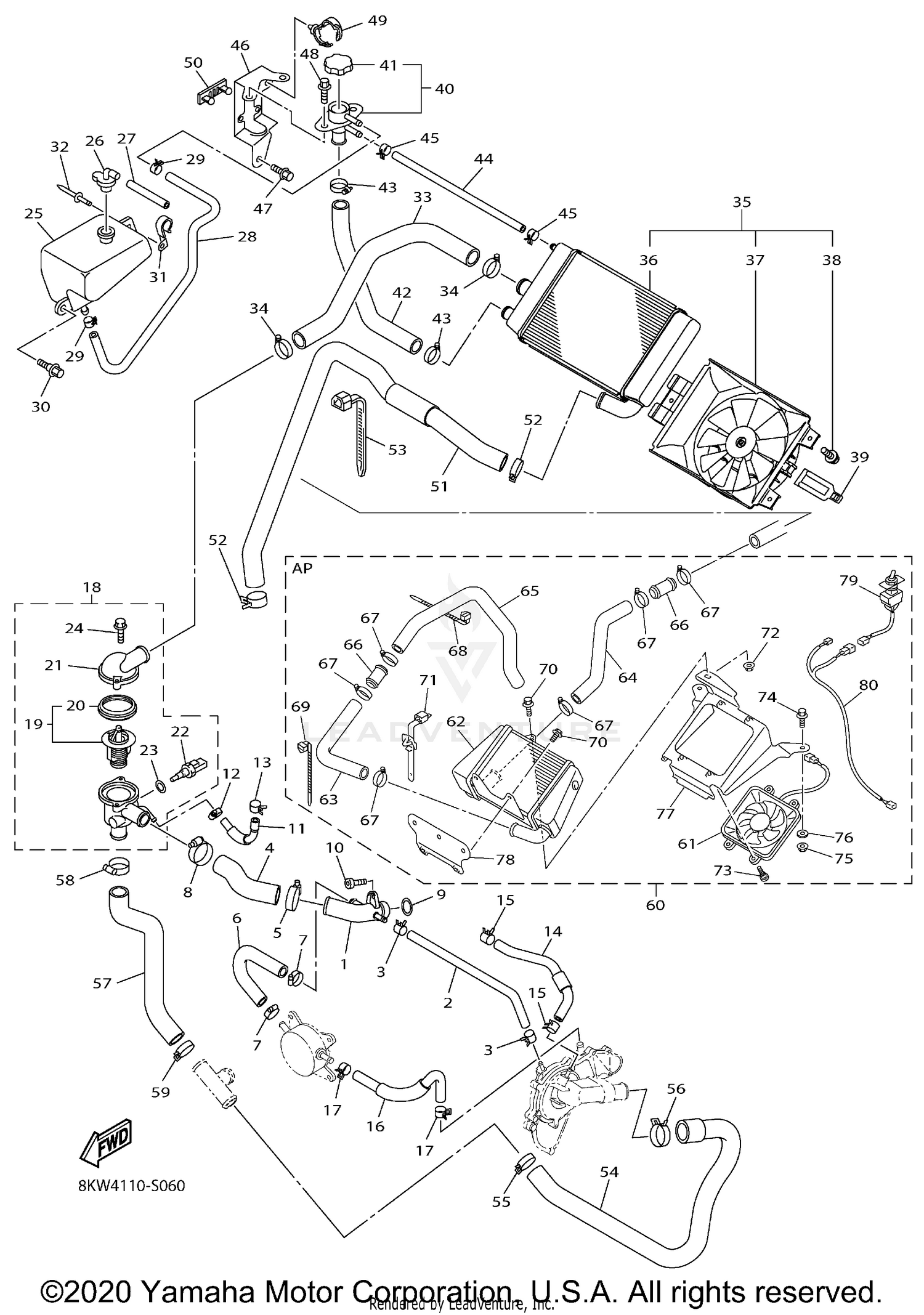

| Ref | Part Number | Description |
|---|
| 1 |
8GL-12482-00-00 |
PIPE 2 Price: $55.99 |
| 2 |
8GL-12485-00-00 |
PIPE 5 Price: $12.49 |
| 3 |
90467-110A2-00 |
CLIP Price: $9.49 |
| 4 |
8KW-1243E-00-00 |
HOSE 2 Price: $10.99 |
| 5 |
90450-35001-00 |
HOSE CLAMP ASSY Price: $6.49 |
| 6 |
8GL-12589-00-00 |
HOSE 6 Price: $14.49 |
| 7 |
90450-18M09-00 |
HOSE CLAMP ASSY This part replaces 90450-19001-00. Price: $11.49 |
| 8 |
90450-35001-00 |
HOSE CLAMP ASSY Price: $6.49 |
| 9 |
93210-235A1-00 |
O-RING Price: $8.49 |
| 10 |
91312-06016-00 |
BOLT, HEXAGON SOCKET HEAD Price: $6.49 |
| 11 |
8KW-12577-00-00 |
HOSE 2 Price: $8.99 |
| 12 |
90460-11M17-00 |
CLAMP, HOSE Price: $22.99 |
| 13 |
90467-120A5-00 |
CLIP Price: $9.49 |
| 14 |
8GL-12578-00-00 |
HOSE 3 Price: $16.49 |
| 15 |
90467-110A2-00 |
CLIP Price: $9.49 |
| 16 |
8ES-12588-00-00 |
HOSE 5 Price: $26.99 |
| 17 |
90467-17128-00 |
CLIP This part replaces 90467-17089-00. Price: $9.49 |
| 18 |
8KW-12580-00-00 |
JOINT ASSY Price: $152.99 |
| 19 |
8FN-12410-00-00 |
THERMOSTAT ASSY Price: $90.99 |
| 20 |
8EK-12412-00-00 |
SEAL, THERMOSTAT Price: $17.99 |
| 21 |
5EB-12413-00-00 |
COVER, THERMOSTAT Price: $90.99 |
| 22 |
5YP-85790-00-00 |
THERMOSENSOR ASSY Price: $70.99 |
| 23 |
90201-12790-00 |
WASHER, PLATE Price: $10.49 |
| 24 |
95022-06020-00 |
BOLT, FLANGE Price: $3.90 |
| 25 |
8FN-21871-00-00 |
TANK, RECOVERY Price: $61.99 |
| 26 |
89A-21815-00-00 |
CAP Price: $26.99 |
| 27 |
90445-112E0-00 |
HOSE (L70) Price: $9.49 |
| 28 |
90445-120J8-00 |
HOSE (L450) Price: $6.49 |
| 29 |
90467-11044-00 |
CLIP This part replaces 90467-11032-00. Price: $9.49 |
| 30 |
90149-06148-00 |
SCREW, SPEC''L SHAPE Price: $5.49 |
| 31 |
90465-10048-00 |
CLAMP Price: $5.49 |
| 32 |
90267-48182-00 |
RIVET, BLIND (4.8X23) Price: $2.65 |
| 33 |
8KW-1244G-00-00 |
HOSE, 4 Price: $24.99 |
| 34 |
90450-35001-00 |
HOSE CLAMP ASSY Price: $6.49 |
| 35 |
8KW-1240A-00-00 |
RADIATOR ASSY Price: $497.99 |
| 36 |
8KW-12461-00-00 |
RADIATOR COMP Price: $325.99 |
| 37 |
8KW-12405-00-00 |
BLOWER ASSY Price: $239.99 |
| 38 |
5GJ-12675-00-00 |
BOLT, BLOWER HOLDING Price: $8.49 |
| 39 |
8FA-2389E-00-00 |
LATCH Price: $14.49 |
| 40 |
8FN-12590-00-00 |
CONDUCTION ASSY Price: $59.99 |
| 41 |
1B3-12462-00-00 |
CAP, RADIATOR This part replaces 3XP-12462-00-00. Price: $73.99 |
| 42 |
8KW-1244H-00-00 |
HOSE 5 Price: $17.49 |
| 43 |
90450-28001-00 |
HOSE CLAMP ASSY This part replaces 90450-28014-00. Price: $16.49 |
| 44 |
90445-120J7-00 |
HOSE (L300) This part replaces 90445-120J6-00. Price: $4.55 |
| 45 |
90467-11044-00 |
CLIP This part replaces 90467-11032-00. Price: $9.49 |
| 46 |
8KW-1244E-00-00 |
BRACKET 1 Price: $84.99 |
| 47 |
95817-06012-00 |
BOLT, FLANGE This part replaces 95822-06012-00. Price: $1.95 |
| 48 |
95817-06016-00 |
BOLT, FLANGE This part replaces 95812-06016-00. Price: $1.95 |
| 49 |
90464-20181-00 |
CLAMP Price: $4.72 |
| 50 |
8FA-83614-00-00 |
BRACKET Price: $4.85 |
| 51 |
8KW-12477-00-00 |
PIPE 7 Price: $46.99 |
| 52 |
90467-28046-00 |
CLIP This part replaces 90467-28144-00. Price: $18.49 |
| 53 |
25G-83936-01-00 |
BAND, SWITCH CORD This part replaces 90464-12045-00. Price: $5.49 |
| 54 |
8FN-1248A-00-00 |
PIPE 8 Price: $58.99 |
| 55 |
90467-28046-00 |
CLIP Price: $18.49 |
| 56 |
90467-310A0-00 |
CLIP Price: $5.49 |
| 57 |
8KW-1248E-00-00 |
PIPE 9 Price: $24.99 |
| 58 |
90450-35001-00 |
HOSE CLAMP ASSY Price: $6.49 |
| 59 |
90467-28046-00 |
CLIP This part replaces 90467-28144-00. Price: $18.49 |
