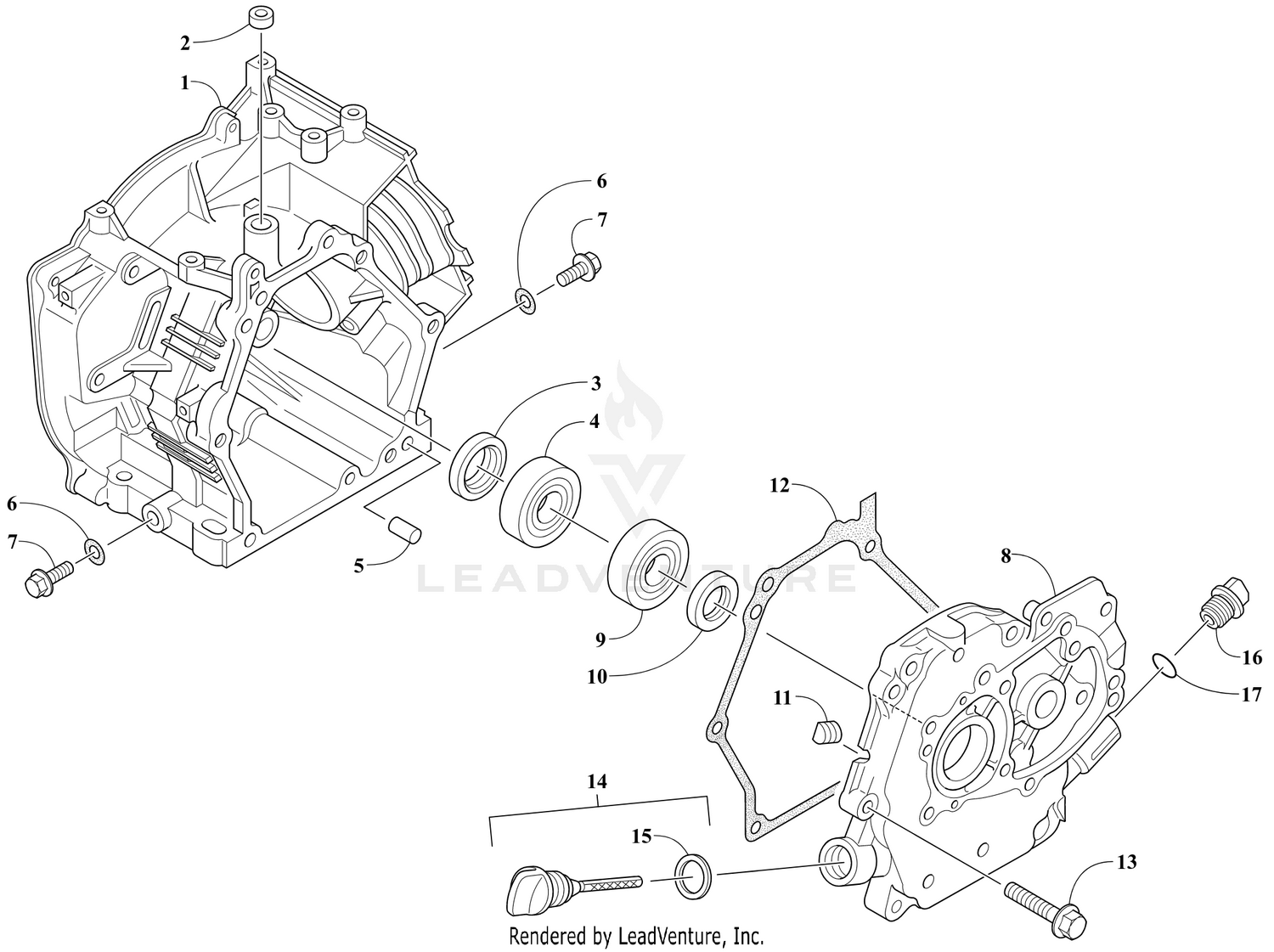

CRANKCASE/COVER ASSEMBLY [106090]
![CRANKCASE/COVER ASSEMBLY [106090]](https://cdn.datamanager.arinet.com/image/ARCT/aeddc57d-2733-4666-864b-9dab30c5e17d/Max)
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3021-794 | Crankcase Price: $412.95 |
| 2 | 3020-111 | Seal, Oil Price: $13.04 |
| 3 | 3020-110 | Seal, Oil Price: $8.95 |
| 4 | 3021-795 | Bearing Price: $201.95 |
| 5 | 3020-127 | Pin, Dowel Price: $3.32 |
| 6 | 3020-101 | Gasket Price: $4.16 |
| 7 | 3021-798 | Screw, Cap Price: $7.08 |
| 8 | 3021-803 | Cover, Crankcase Price: $532.95 |
| 9 | 3021-804 | Bearing Price: $81.95 |
| 10 | 3020-109 | Seal, Oil Price: $22.56 |
| 11 | 3020-100 | Plug Price: $5.11 |
| 12 | 3021-807 | Gasket, Crankcase Cover Price: $34.95 |
| 13 | 3021-808 | Screw, Cap Price: $7.08 |
| 15 | 3021-810 | Gasket Price: $4.51 |
| 16 | 3020-060 | Plug, Oil Level Price: $16.61 |
