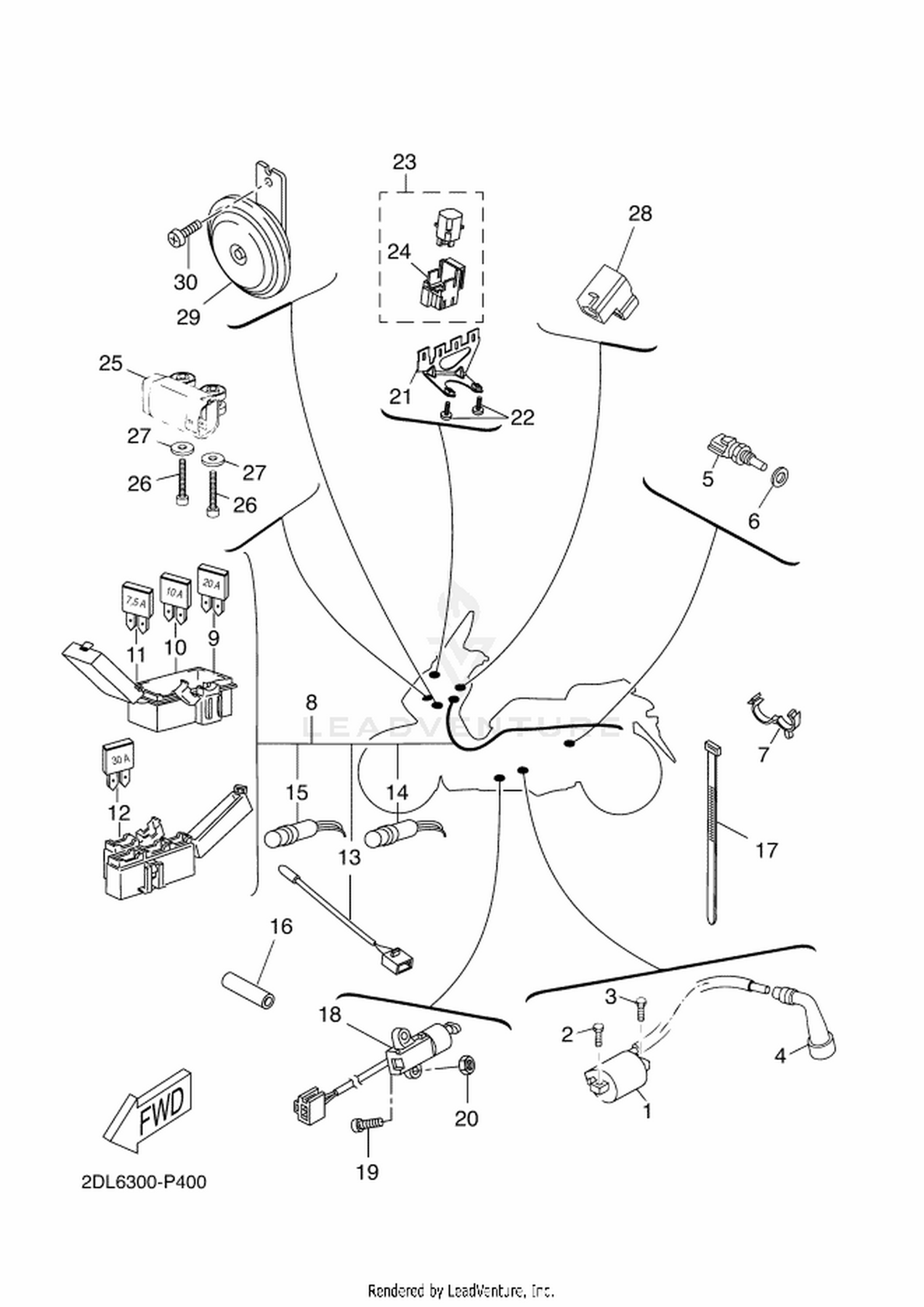

40 ELECTRICAL 2
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 1S4-82310-00 | IGNITION COIL ASSY Price: Call Us |
| 2 | 97080-06020 | BOLT Price: Call Us |
| 3 | 90153-06034 | SCREW, HEXAGON Price: Call Us |
| 4 | 4CW-H2370-01 | PLUG CAP ASSY Price: Call Us |
| 5 | 5YP-85790-00 | THERMOSENSOR ASSY Price: Call Us |
| 6 | 90430-12X01 | GASKET Price: Call Us |
| 7 | 90464-10008 | CLAMP Price: Call Us |
| 8 | 2DL-H2590-10 | WIRE HARNESS ASSY Price: Call Us |
| 9 | 5JJ-82151-20 | FUSE (20A-BL) Price: Call Us |
| 16 | 2DM-H2589-00 | PROTECTER, WIRE HARNESS Price: Call Us |
| 18 | 32S-H2566-10 | SWITCH, SIDE STAND Price: Call Us |
| 19 | 90110-05X08 | BOLT, HEXAGON SOCKET HEAD Price: Call Us |
| 20 | 95607-05100 | NUT, U Price: Call Us |
| 21 | 1SD-H1952-10 | HOLDER, RELAY Price: Call Us |
| 22 | 90109-06259 | BOLT Price: Call Us |
| 23 | 1TP-81950-00 | RELAY ASSY (1TP-00) Price: Call Us |
| 25 | 32P-H2576-00 | SENSOR, LEAN ANGLE Price: Call Us |
| 26 | 9131L-04025 | BOLT Price: Call Us |
| 27 | 90201-047A2 | WASHER, PLATE Price: Call Us |
| 28 | 3XV-83350-21 | FLASHER RELAY ASSY Price: Call Us |
| 29 | 52S-H3371-00 | HORN Price: Call Us |
