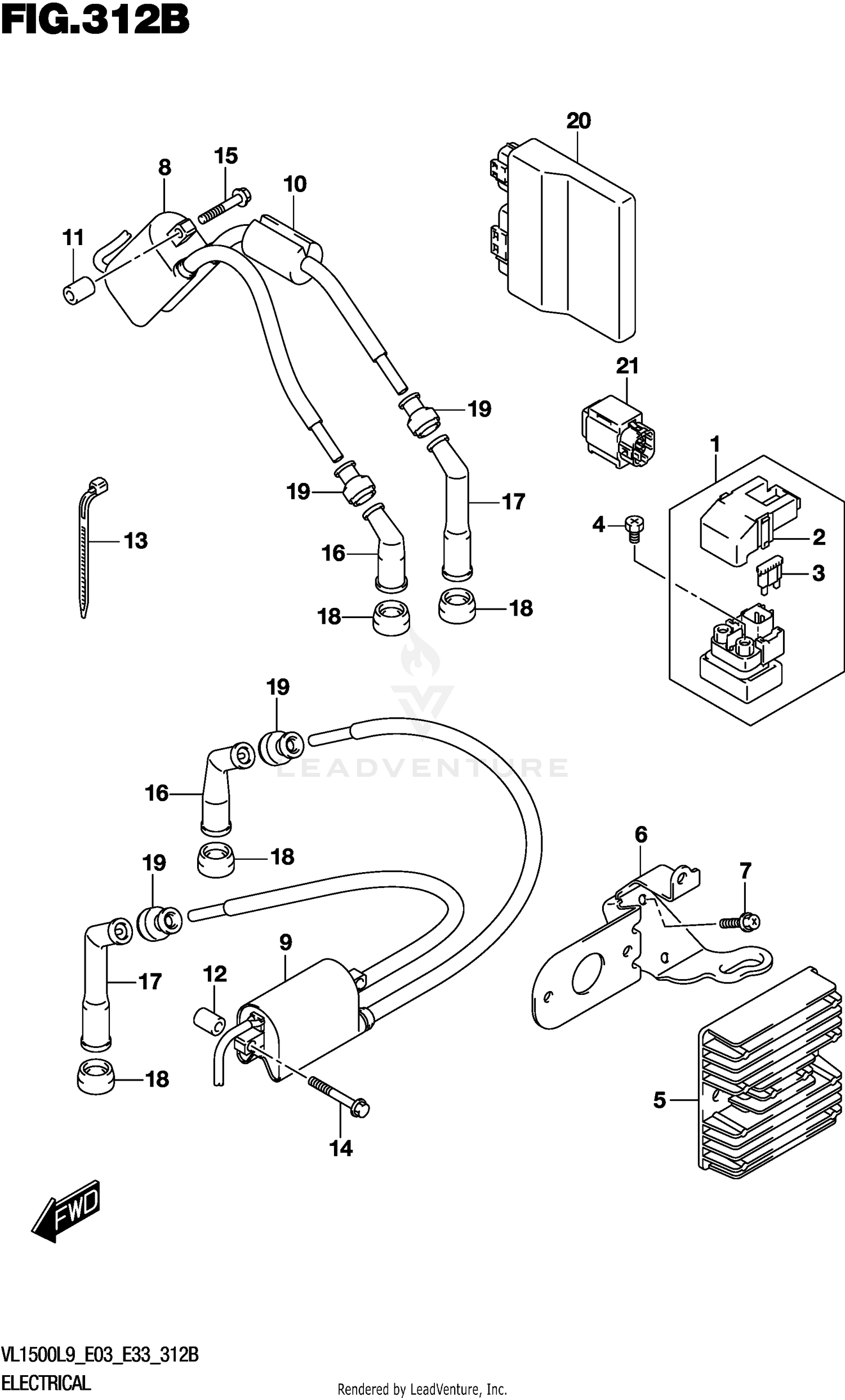

ELECTRICAL (VL1500BL9 E33)
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 31800-06G02 | RELAY ASSY, STARTING MOTOR This part replaces 31800-06G00. Price: $83.16 |
| 4 | 09128-06013 | SCREW (6X8) Price: $1.50 |
| 5 | 32800-10G30 | RECTIFIER ASSY Price: $349.54 |
| 6 | 32830-40H10 | BRACKET Price: $32.65 |
| 7 | 02162-0616B | SCREW (6X16) This part replaces 02162-0616A. Price: $2.48 |
| 8 | 33410-40H01 | COIL ASSY,IGNITION Price: $135.41 |
| 9 | 33420-40H11 | COIL ASSY Price: $134.25 |
| 10 | 33442-41F00 | CUSHION,HIGH TENSION CORD (58 Price: $4.69 |
| 13 | 09407-18402 | CLAMP (L:165) Price: $2.68 |
| 16 | 33510-38B00 | CAP,SPARK PLUG (SIDE) Price: $34.27 |
| 17 | 33510-45010 | CAP Price: $31.75 |
| 18 | 33541-47D00 | SEAL,SPARK PLUG Price: $9.67 |
| 19 | 33542-38B00 | SEAL, HIGH TENSION Price: $5.36 |
| 20 | 32920-06J70 | CONTROL UNIT Price: $1,374.52 |
