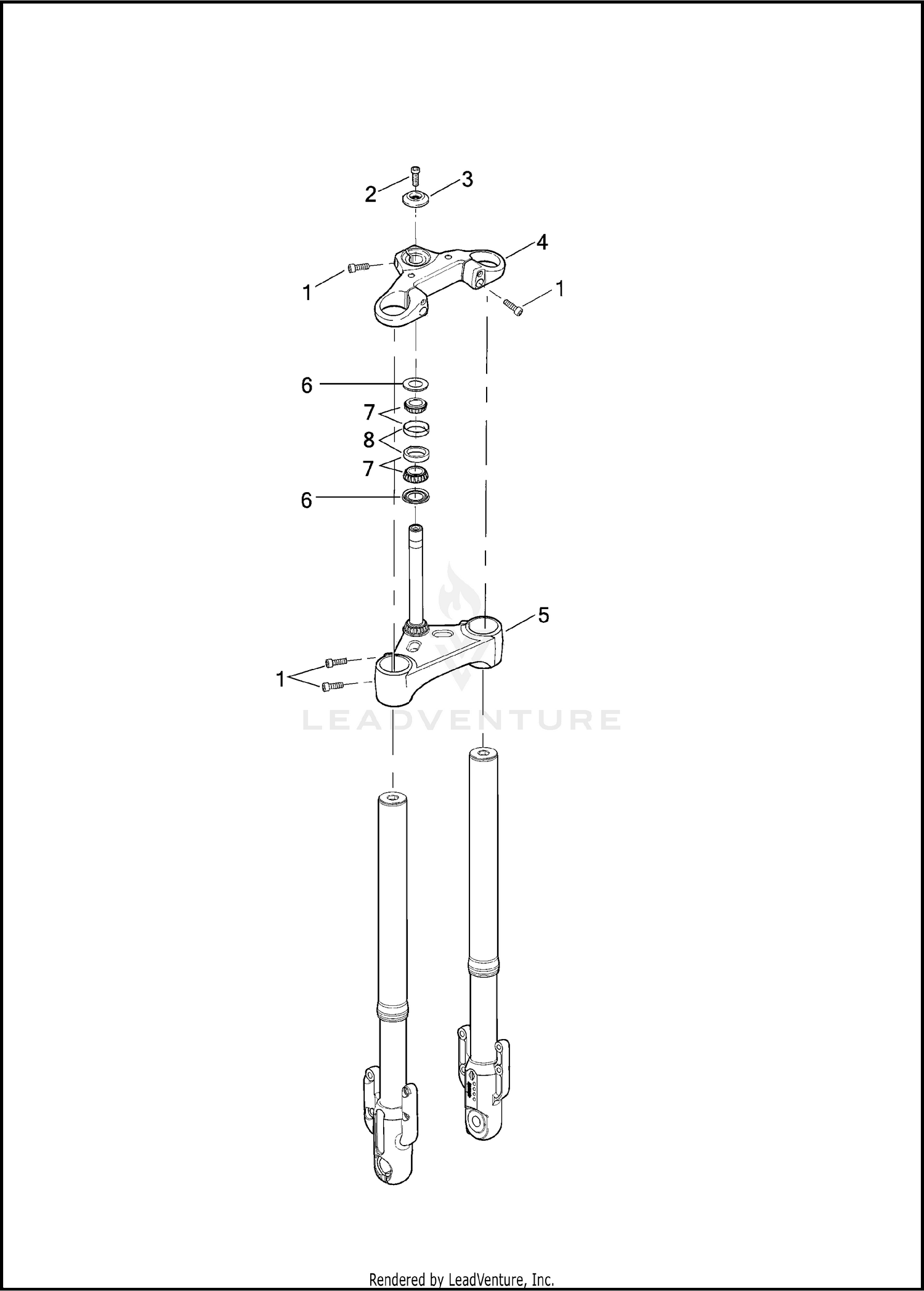

FORK, FRONT BRACKET
Parts (7)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 4534M | SCREW M10 X 1.5 X 30 SOCKET HD. Price: $4.12 |
| 2 | 4870M | BOLT M12 X 1.75X 30 M8 DRIVE Not Available This part replaces 4892M. Price: |
| 3 | 6513 | STEERING WASHER Not Available Price: |
| 4 | 45900017 | BRACKET UPPER (BLACK) Price: $325.35 |
| 5 | 45900019 | STEM & BRACKET W/ BEARING & SHIELD (BLACK) Price: $341.10 |
| 6 | 48184-01 | SEAL Price: $3.57 |
| 7 | 45700080 | KIT,STRG,STEERING HEAD This part replaces 48300-60. Price: $17.05 |
