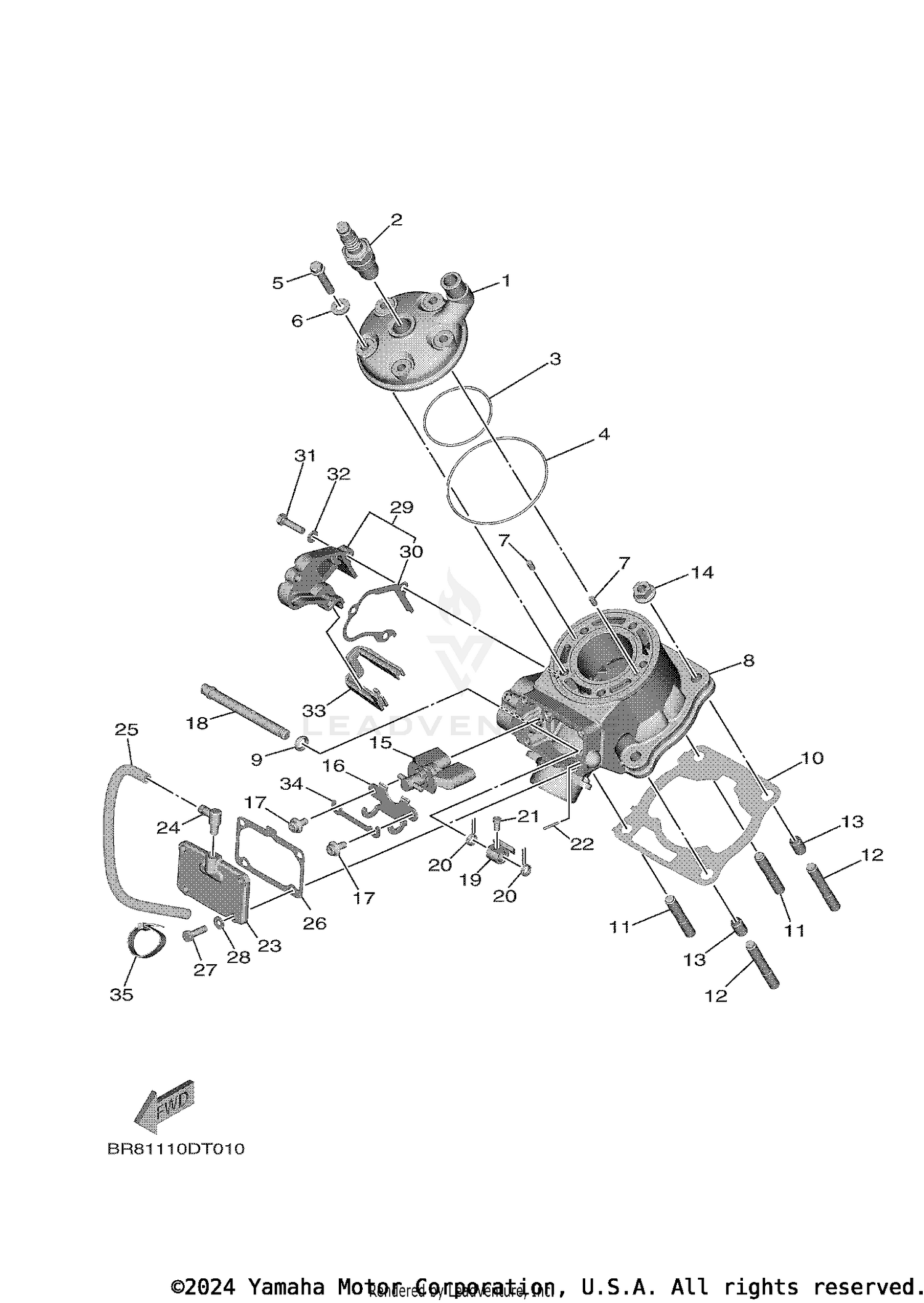

| Ref | Part Number | Description |
|---|
| 1 |
BR8-11111-00-00 |
HEAD, CYLINDER 1 Price: $218.99 |
| 2 |
94702-00357-00 |
PLUG, SPARK (NGK BR9ECM) Price: $19.49 |
| 3 |
93210-50582-00 |
O-RING Price: $5.49 |
| 4 |
93210-76MF8-00 |
O-RING Price: $12.49 |
| 5 |
90105-06195-00 |
BOLT, FLANGE Price: $2.55 |
| 6 |
90201-066F0-00 |
WASHER, PLATE Price: $10.49 |
| 7 |
93604-08071-00 |
PIN, DOWEL Price: $9.49 |
| 8 |
BR8-11311-00-00 |
CYLINDER 1 Price: $811.99 |
| 9 |
93104-08040-00 |
OIL SEAL Price: $16.49 |
| 10 |
BR8-11351-00-00 |
GASKET, CYLINDER Price: $8.49 |
| 11 |
90116-08031-00 |
BOLT, STUD Price: $10.49 |
| 12 |
90116-08028-00 |
BOLT, STUD Price: $9.49 |
| 13 |
99590-10114-00 |
PIN, DOWEL Price: $5.55 |
| 14 |
90179-08019-00 |
NUT Price: $8.49 |
| 15 |
BR8-1131D-00-00 |
VALVE ASSY Price: $244.99 |
| 16 |
5CU-1131U-10-00 |
HOLDER 3 Price: $24.99 |
| 17 |
90109-05002-00 |
BOLT This part replaces 90109-05001-00. Price: $9.49 |
| 18 |
BR8-1131V-00-00 |
SHAFT 1 Price: $47.99 |
| 19 |
4SS-11832-00-00 |
LEVER, LINK Price: $84.99 |
| 20 |
90508-155B8-00 |
SPRING, TORSION Price: $8.49 |
| 21 |
91312-04008-00 |
BOLT, HEXAGON SOCKET HEAD Price: $3.05 |
| 22 |
93602-16M10-00 |
PIN, DOWEL Price: $3.55 |
| 23 |
BR8-1131M-00-00 |
COVER Price: $38.99 |
| 24 |
38W-13115-00-00 |
CONNECTOR, SUCTION PIPE Price: $42.99 |
| 25 |
90445-08684-00 |
HOSE This part replaces 90445-08376-00. Price: $5.49 |
| 26 |
BR8-11354-00-00 |
GASKET Price: $6.49 |
| 27 |
97095-05016-00 |
BOLT This part replaces 97002-05016-00. Price: $1.75 |
| 28 |
92990-05600-00 |
WASHER, PLATE This part replaces 92902-05600-00. Price: $0.80 |
| 29 |
BR8-11991-00-00 |
HOUSING 1 Price: $80.99 |
| 30 |
BR8-11993-00-00 |
GASKET Price: $6.49 |
| 31 |
97027-05020-00 |
BOLT This part replaces 97002-05020-00. Price: $3.55 |
| 32 |
92990-05600-00 |
WASHER, PLATE This part replaces 92902-05600-00. Price: $0.80 |
| 33 |
BR8-11995-00-00 |
SEAL, HOUSING Price: $16.49 |
| 34 |
BR8-1131P-00-00 |
HOLDER 4 Price: $4.85 |
