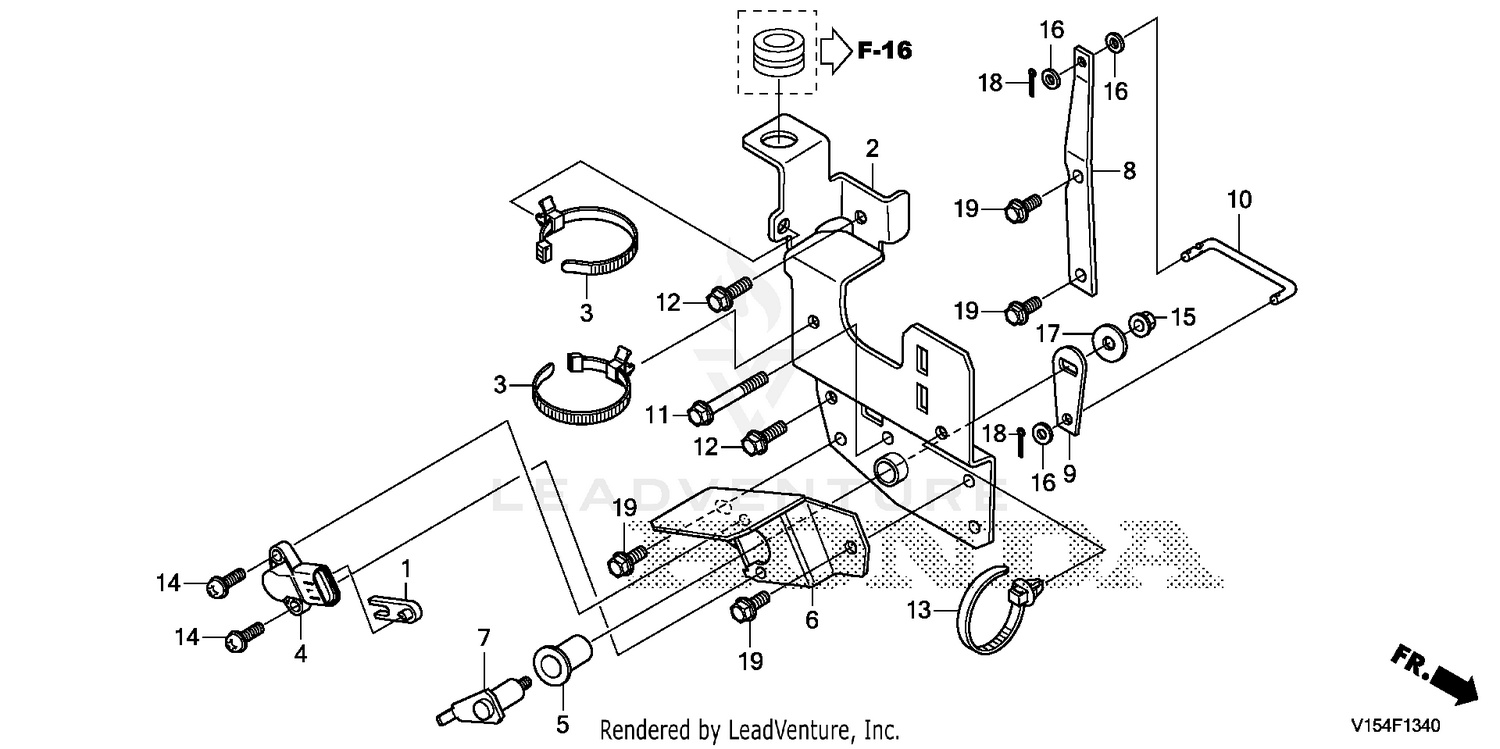

| Ref | Part Number | Description |
|---|
| 1 |
24419-V15-000 |
ARM, TURN LEVER Price: $9.60 |
| 2 |
32101-V15-N00 |
BRACKET, CONNECTOR Price: $100.38 |
| 3 |
32161-V15-003 |
BAND, WIRE HARNESS Price: $4.78 |
| 4 |
35750-V15-003 |
SENSOR ASSY., ANGLE Price: $115.46 |
| 5 |
47164-759-000 |
BUSH, PARKING BRAKE Price: $5.50 |
| 6 |
50105-V15-N00 |
BRACKET, HEIGHT SENSOR Price: $39.90 |
| 7 |
50131-V27-000 |
SHAFT, HEIGHT SENSOR Price: $84.08 |
| 8 |
50135-V27-010 |
ARM A, HEIGHT SENSOR Price: $24.94 |
| 9 |
50136-V15-N00 |
ARM B, HEIGHT SENSOR Price: $6.50 |
| 10 |
50137-V27-000 |
ROD, HEIGHT SENSOR Price: $36.28 |
| 11 |
90012-888-000 |
BOLT, FLANGE (6X40) (Honda Code 0671529). Price: $4.64 |
| 12 |
90014-952-000 |
BOLT, FLANGE (6X14) (Honda Code 0803619). Price: $2.94 |
| 14 |
93893-05018-00 |
SCREW-WASHER (5X18) (NOT AVAILABLE) Price: $0.84 |
| 15 |
94050-06000 |
SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623). Price: $0.82 |
| 16 |
94101-05000 |
SEE PART DETAILS - PRI; WASHER, PLAIN (5MM) (Honda Code 0059055). Price: $1.24 |
| 17 |
94103-06000 |
WASHER, PLAIN (6MM) (Honda Code 0450122). Price: $1.24 |
| 18 |
94201-16120 |
PIN, COTTER (1.6X12) Price: $1.30 |
