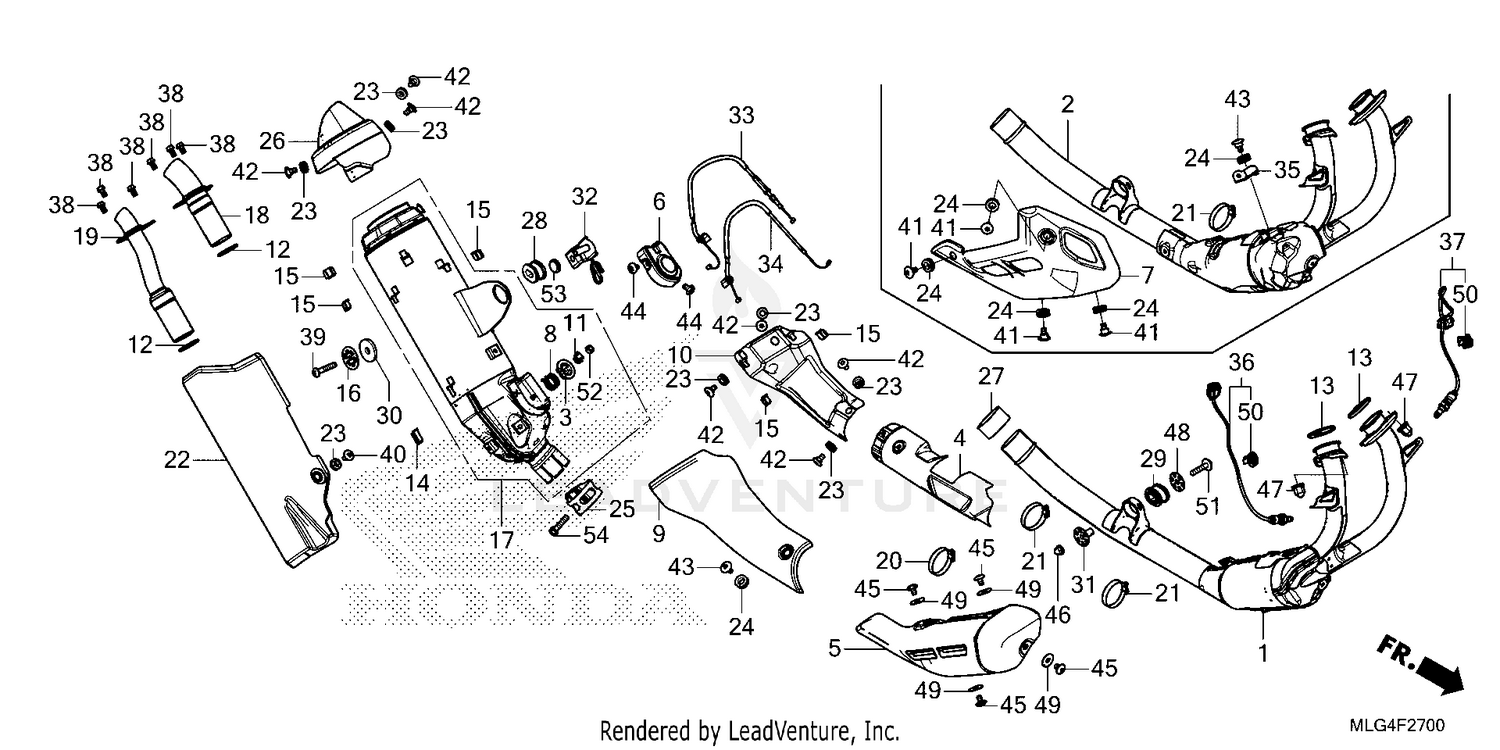

| Ref | Part Number | Description |
|---|
| 1 |
18100-MKS-A00 |
COVER, EX. Price: $1,934.31 |
| 3 |
18170-MKS-E20 |
GUIDE, VALVE CABLE Price: $23.75 |
| 4 |
18180-MKS-E20 |
COVER A, EX. PIPE Price: $145.05 |
| 5 |
18182-MKS-E00 |
COVER, R. CATALYST Price: $181.89 |
| 6 |
18184-MKS-E20 |
COVER, VALVE GUIDE Price: $32.51 |
| 8 |
18186-MKF-D41 |
SPRING, RETURN Price: $7.42 |
| 9 |
18186-MKS-E20 |
COVER, EX. (OUTER) Price: $27.75 |
| 10 |
18190-MKS-E20 |
COVER C, EX. PIPE Price: $41.15 |
| 11 |
18195-MFJ-D00 |
WASHER B, LOCK Price: $3.84 |
| 12 |
18291-MEB-670 |
GASKET, EX. PIPE Price: $6.18 |
| 13 |
18291-MM8-880 |
GASKET, EX. PIPE Price: $8.98 |
| 14 |
18293-MJP-G50 |
RUBBER, PROTECTOR GASKET Price: $4.78 |
| 15 |
18293-MN0-000 |
RUBBER, PROTECTOR Price: $2.44 |
| 16 |
18309-MJP-G50 |
WASHER (8.5X43) Price: $3.73 |
| 17 |
18310-MKS-AT0 |
MUFFLER Price: $1,486.02 |
| 18 |
18317-MKS-AT0 |
ARRESTER A, SPARK Price: $73.95 |
| 19 |
18318-MKS-AT0 |
ARRESTER B, SPARK Price: $113.64 |
| 20 |
18329-MKS-E00 |
BAND, EX. PROTECTOR Price: $19.35 |
| 21 |
18329-MKS-E20 |
BAND, EX. PROTECTOR Price: $18.53 |
| 22 |
18340-MKS-E20 |
COVER, MUFFLER Price: $220.20 |
| 23 |
18345-MBT-610 |
RUBBER, PROTECTOR MOUNTING Price: $2.49 |
| 24 |
18345-MKS-E20 |
RUBBER, PROTECTOR MOUNTING Price: $3.35 |
| 25 |
18371-MKS-E20 |
BAND, MUFFLER Price: $30.42 |
| 26 |
18380-MKS-E20 |
COVER, TAIL CAP Price: $79.31 |
| 27 |
18391-ML0-003 |
GASKET, MUFFLER Price: $35.49 |
| 28 |
18421-MJP-G50 |
RUBBER, MUFFLER MOUNTING Price: $7.80 |
| 29 |
18422-MFJ-D10 |
RUBBER, EX. PIPE MOUNTING Price: $21.11 |
| 30 |
18422-MJP-G50 |
WASHER, RUBBER Price: $4.18 |
| 31 |
18423-MGC-N20 |
COLLAR, EX. PIPE MOUNTING Price: $7.29 |
| 32 |
18423-MKS-E20 |
COLLAR, MUFFLER MOUNTING Price: $32.22 |
| 33 |
18910-MKS-E20 |
CABLE A, EX. VALVE Price: $77.98 |
| 34 |
18920-MKS-E20 |
CABLE B, EX. VALVE Price: $54.31 |
| 36 |
36533-MKS-E01 |
SENSOR, R. AIR FUEL RATIO Price: $257.82 |
| 37 |
36534-MKS-E01 |
SENSOR, L. AIR FUEL RATIO Price: $257.82 |
| 38 |
96001-06010-07 |
BOLT, FLANGE (6X10) This part replaces 90101-KCE-000. Price: $1.70 |
| 39 |
90109-MBT-611 |
BOLT, SOCKET (8X45) Price: $4.33 |
| 40 |
90113-GFP-B00 |
SCREW, PAN (6X12) Price: $4.49 |
| 42 |
90114-MKS-E20 |
SCREW, PAN (6X12) Price: $2.33 |
| 43 |
90115-MKS-E20 |
SCREW, PAN (6X14) Price: $2.51 |
| 44 |
90116-MKS-E20 |
BOLT, SPECIAL (5X8) Price: $4.64 |
| 45 |
90190-MLG-E00 |
SCREW, PAN (6X10) Price: $2.56 |
| 46 |
90301-MKS-E20 |
NUT, FLANGE CAP (8MM) Price: $3.65 |
| 47 |
90304-ME1-670 |
NUT, CAP (8MM) Price: $7.47 |
| 48 |
90501-MGC-N20 |
WASHER (8.5X38) Price: $3.71 |
| 49 |
90502-MKS-E00 |
WASHER, PLAIN (6MM) Price: $3.58 |
| 50 |
91542-SNA-003 |
CLIP, HARNESS BAND (164.5MM) (DARK BLUE) Price: $0.60 |
| 51 |
93404-08040-04 |
BOLT-WASHER (8X40) Price: $1.18 |
| 52 |
94001-06020-0S |
NUT, HEX. (6MM) Price: $1.43 |
| 53 |
95011-63000 |
RUBBER C, STAND STOPPER Price: $4.91 |
