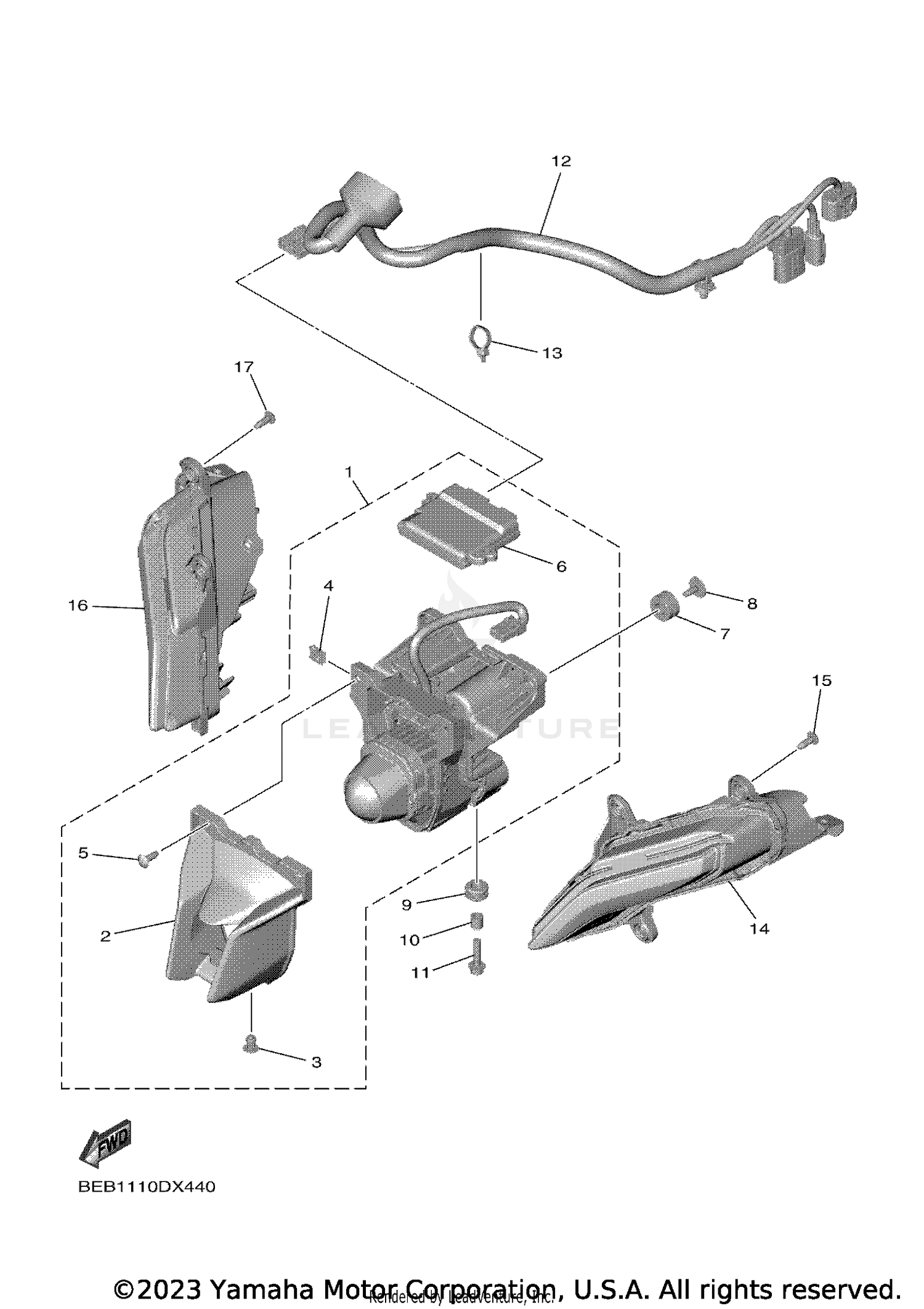

HEADLIGHT
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | BEB-84300-03-00 | HEADLIGHT ASSY This part replaces BEB-84300-01-00. Price: $641.99 |
| 3 | 90269-06816-00 | RIVET Price: $1.70 |
| 4 | 90183-05042-00 | NUT, SPRING This part replaces 90183-05807-00. Price: $1.00 |
| 5 | 97707-50016-00 | SCREW, TRUSS HEAD TAPPING Price: $1.85 |
| 7 | 90480-14004-00 | GROMMET Price: $9.49 |
| 8 | 90167-05020-00 | SCREW, TAPPING Price: $3.95 |
| 9 | 90480-14003-00 | GROMMET Price: $9.49 |
| 10 | 90387-06113-00 | COLLAR This part replaces 90387-064M9-00. Price: $12.49 |
| 11 | 95D37-06025-00 | BOLT, FLANGE DEEP RECESS Price: $1.20 |
| 12 | BEB-84359-00-00 | CORD, HEADLIGHT Price: $200.99 |
| 13 | 1UA-82591-00-00 | BAND Price: $5.49 |
| 14 | BEB-84301-00-00 | PILOT LIGHT ASSY 1 Price: $279.99 |
| 15 | 90167-05080-00 | SCREW, TAPPING Price: $2.70 |
| 16 | BEB-84302-00-00 | PILOT LIGHT ASSY 2 Price: $305.99 |
