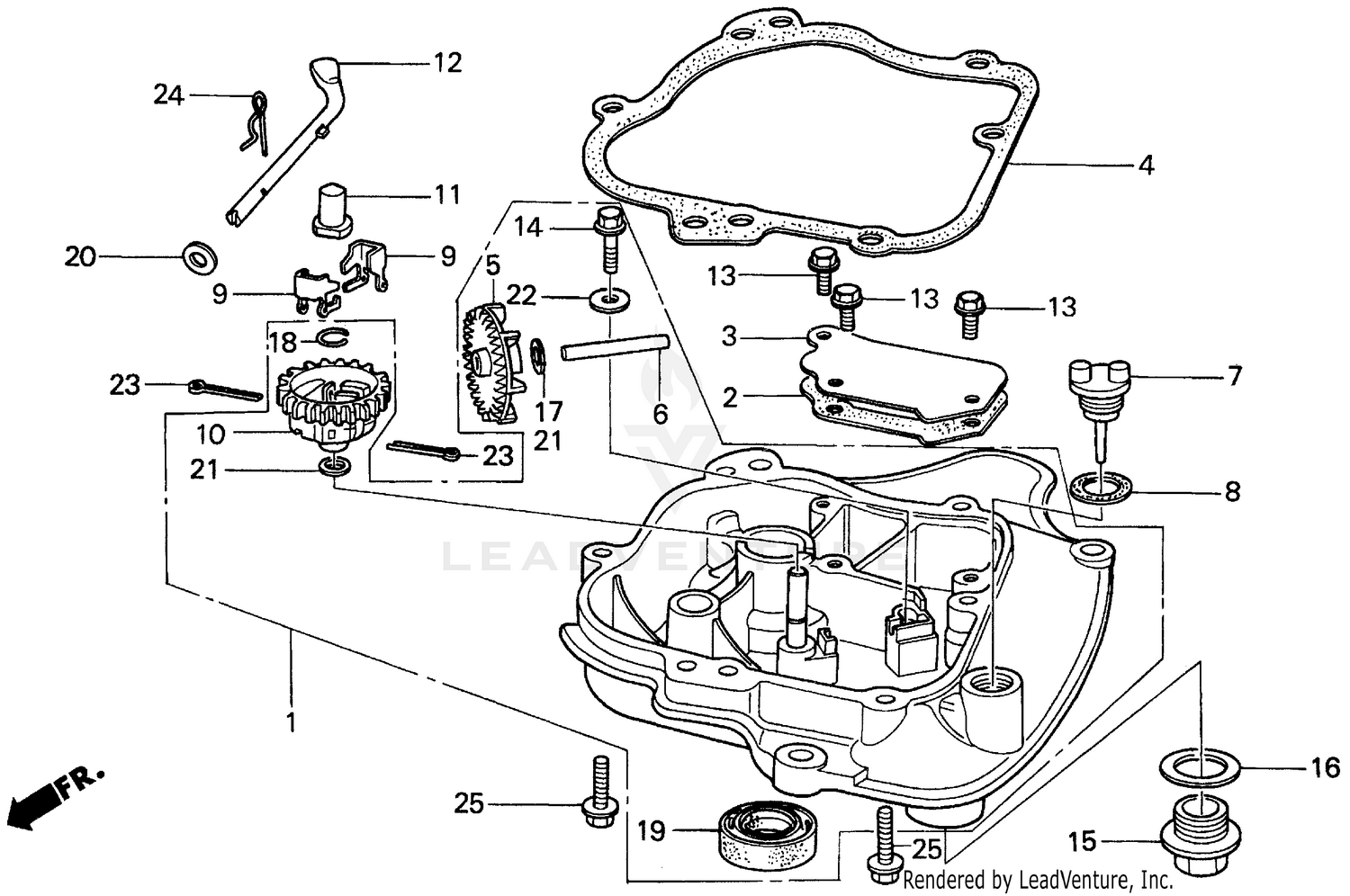

| Ref | Part Number | Description |
|---|
| 1 |
113B0-896-705 |
PAN ASSY., OIL Price: $168.84 |
| 2 |
11315-896-700 |
GASKET, OIL CHAMBER Price: Call Us |
| 3 |
11316-896-700 |
COVER, OIL CHAMBER Price: $5.20 |
| 4 |
11381-896-000 |
GASKET, CASE COVER Price: Call Us |
| 5 |
15331-896-701 |
SLINGER, OIL Price: $11.78 |
| 6 |
15332-896-700 |
SHAFT, OIL SLINGER Price: $3.24 |
| 7 |
15620-896-700 |
CAP, OIL FILLER (NOT AVAILABLE) Price: Call Us |
| 8 |
15621-896-010 |
SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP Use from Engine SN 1391010. Price: $5.62 |
| 9 |
16511-896-000 |
WEIGHT, GOVERNOR Price: $2.72 |
| 11 |
16531-ZG0-000 |
SLIDER, GOVERNOR Price: $4.50 |
| 12 |
16541-896-000 |
SEE PART DETAILS - PRI; SHAFT, GOVERNOR ARM Price: $9.40 |
| 13 |
90003-892-000 |
BOLT, FLANGE (5X12) Price: $1.54 |
| 14 |
90005-896-000 |
BOLT, FLANGE (5X16) (Honda Code 1420611). Price: $2.74 |
| 15 |
90132-896-700 |
BOLT, DRAIN PLUG (22MM) Price: Call Us |
| 16 |
90431-896-700 |
WASHER, DRAIN PLUG (22MM) (NOT AVAILABLE) Price: Call Us |
| 18 |
90602-ZE1-000 |
SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER (Honda Code 2456697). Price: $1.74 |
| 19 |
91201-896-701 |
SEE PART DETAILS - PRI; OIL SEAL (20X34X6) Price: $13.06 |
| 20 |
94101-05800 |
WASHER, PLAIN (5MM) (Honda Code 0285791). Price: $1.24 |
| 22 |
94103-05800 |
WASHER, PLAIN (5MM) (Honda Code 0795971). Price: $1.24 |
| 24 |
94251-08000 |
SEE PART DETAILS - PRI; PIN, LOCK (8MM) (Honda Code 0115527). Price: $1.54 |
