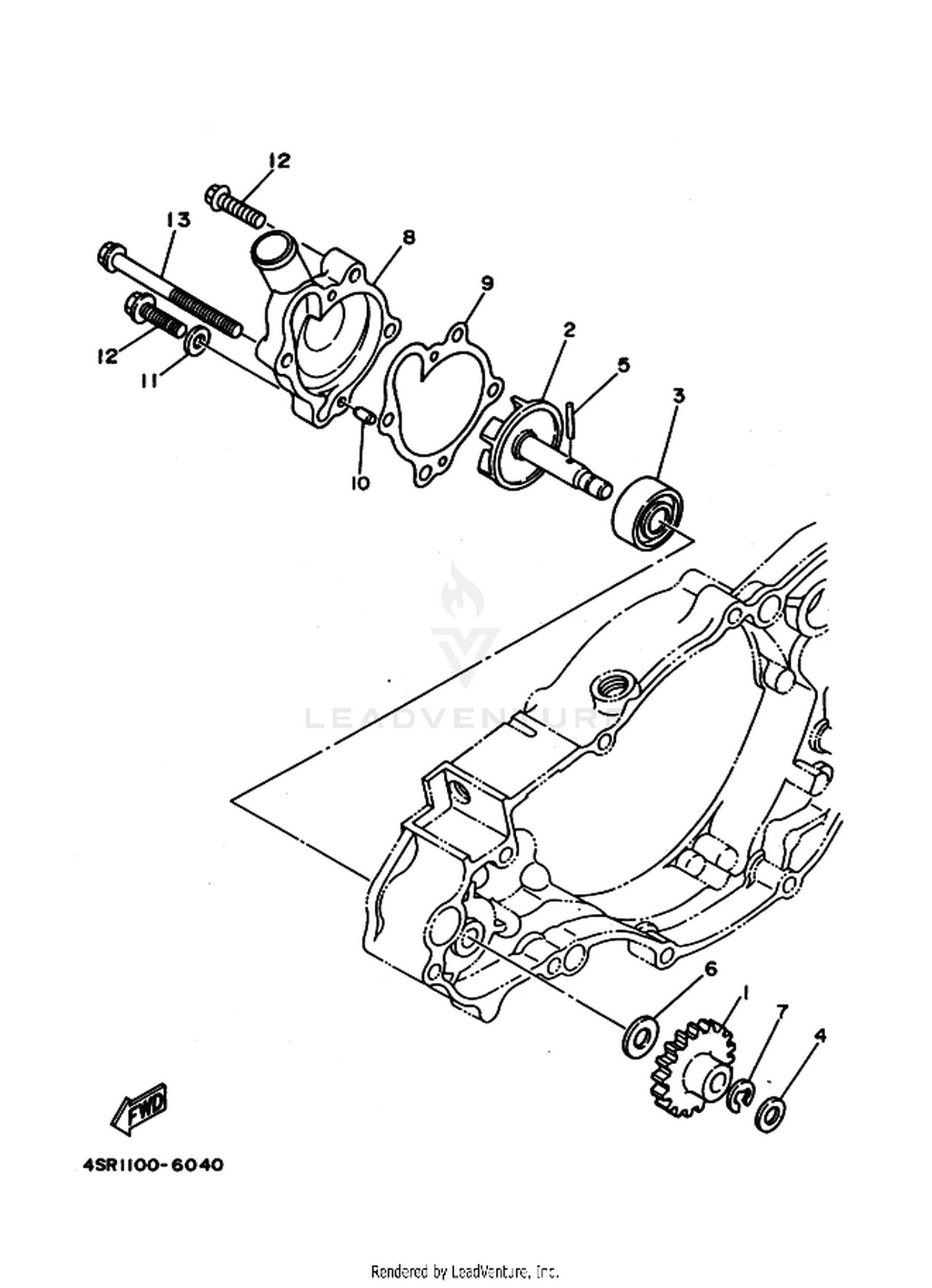

04 WATER PUMP
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 4SR-12459-00 | GEAR, IMPELLER SHAFT Price: Call Us |
| 2 | 2VM-12450-00 | IMPELLER SHAFT ASSY Price: Call Us |
| 3 | 93103-10147 | OIL SEAL Price: Call Us |
| 4 | 90201-105E8 | WASHER, PLATE Price: Call Us |
| 5 | 93603-22028 | PIN, DOWEL Price: Call Us |
| 6 | 90201-08784 | WASHER, PLATE Price: Call Us |
| 7 | 99001-06600 | CIRCLIP Price: Call Us |
| 8 | 4SR-12422-00 | COVER, HOUSING Price: Call Us |
| 9 | 2VM-12428-11 | GASKET, HOUSING COVER 2 Price: Call Us |
| 10 | 93604-10011 | PIN, DOWEL Price: Call Us |
| 11 | 90430-06166 | GASKET Price: Call Us |
| 12 | 95027-06025 | BOLT, FLANGE Price: Call Us |
